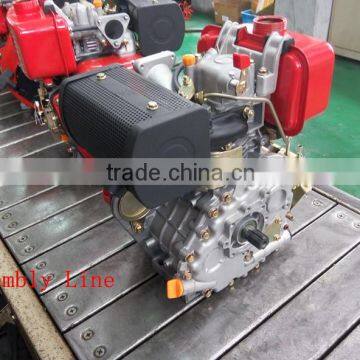

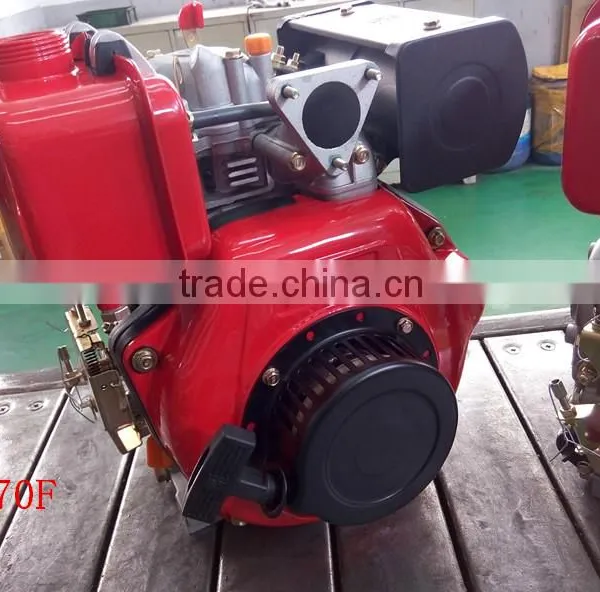

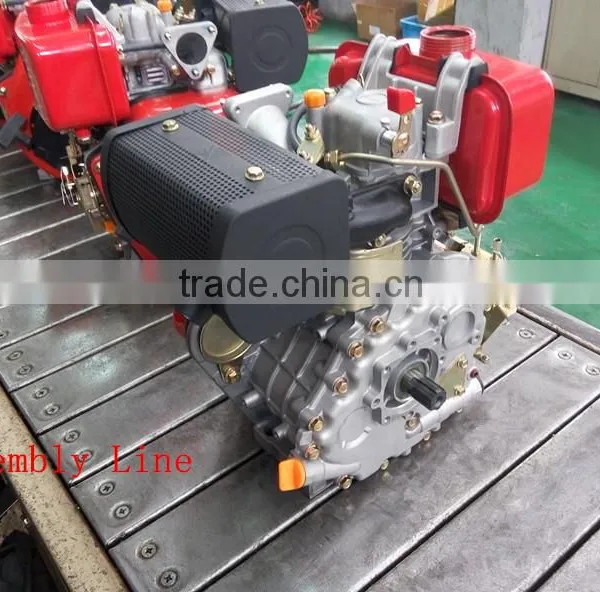

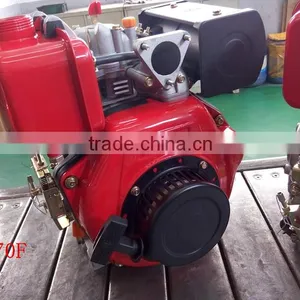

Help CenterDiesel Engine 8hp
US$ 209 - 351
MOQ: 10 Sets
Key Specifications
Get Latest Price
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
KAIAO
Model Number
KA186F
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Model | KA186F |
| Rated output(HP/rpm) | 7.6HP/3000, 8.4HP/3600 |
| Rated output(KW/rpm) | 5.7KW/3000, 6.3KW/3600 |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 86X70 |
| Piston displacement (L) | 0.406 |
| Compression ratio | 19 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash complex Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 5.5 |
| Fuel consumption rate(g/kW.h) | 275.1/3000 281.5/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.65 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 522*522*578 |
| Net weight(kg) | 47 |
