China Manufacture Concrete Mixer Machine Price
Brief Introduction
JDC series of concrete mixing machine is a kind of single horizontal shaft, and compulsory concrete mixing machine, which can be divided into JDC350 and JDC500. With hydraulic lifting hopper
andreverse discharging technology, with the rotating shovels mixing materials powerfully, this
machine not only mix high quality concrete, but also has advantages of low consumption, quick
discharging,and easy operation. It is the good model with advanced technology.

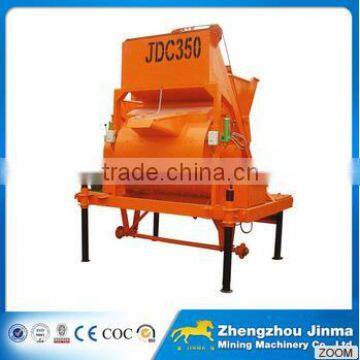

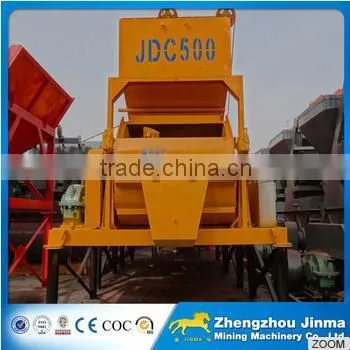

the JDC concrete mixer produced byJinma
Application of moveable concrete mixer:
Self-reverse drum concrete mixer includes JZC and JZM series. Both of them are portable concrete mixers and are applicable to small construction project,used for the variety of concrete production, mortar and grout, etc.
JZC series concrete mixers are bipyramid-type self-reverse mixers, concrete is mixed by drum rotating. They adopt electric motor for power supply and commonly install 2 tyres for mixer position moving.

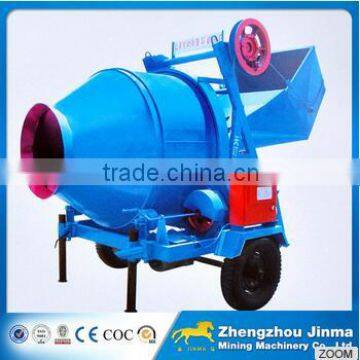

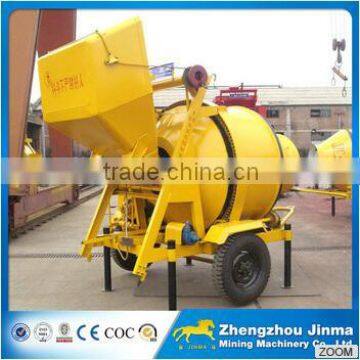

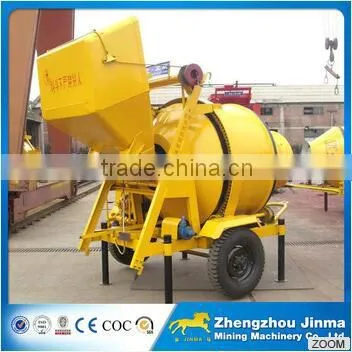

the JCZ concrete mixer produced by Jinma
Specification of JDC series concrete mixer
Model |
JDC350 |
JDC500 |
Discharge capacity |
350L |
500L |
Feed capacity |
560L |
800L |
Productivity |
17.5-21 m3/h |
20-30 m3/h |
Maximum aggregate size |
40/60mm |
60/80mm |
Mixing motor power |
15kw |
18.5 kw |
Lifting motor power |
4.5 kw |
5.5 kw |
Rotational speed of stirring shaft |
25r/min |
25r/min |
Hopper lifting speed |
18m/min |
18m/min |
Pump motor power |
0.75kw |
1.1kw |
Dimension(Length*Width*Height) |
4150x2600x3150mm |
4330x2700x5000mm |
Weight |
3500kg |
4700kg |

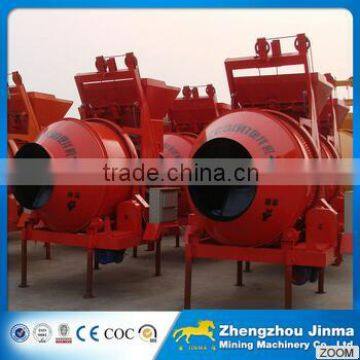

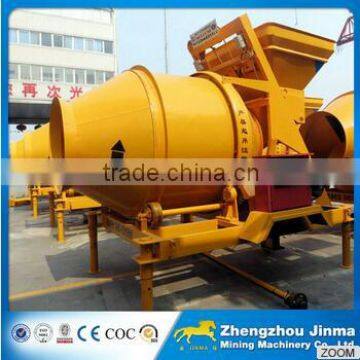

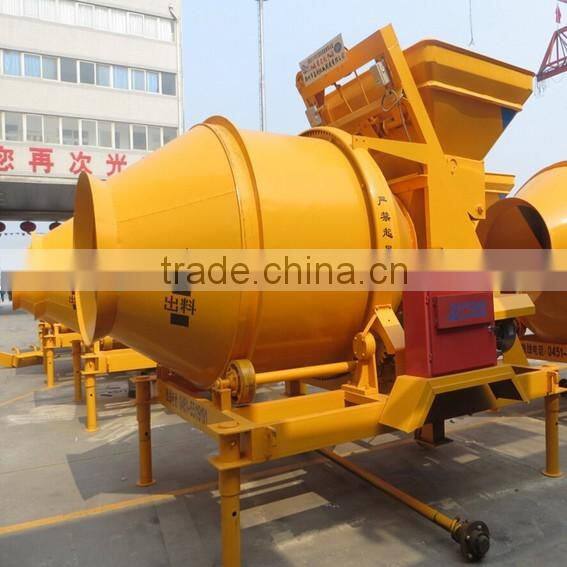

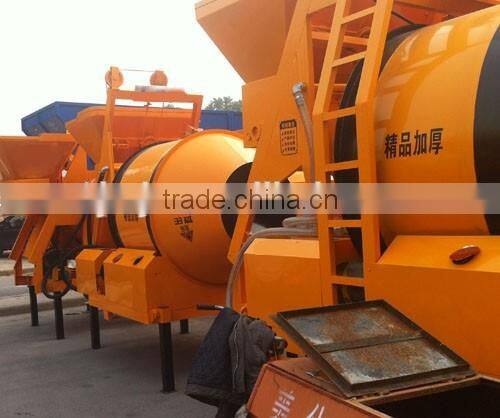

JZM concrete mixer produced by Jinma
Our main products jaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher and so on more than 30 varieties of broken machinery.
1) 38 years year of production experience
2) Processional Research and Development team
3) Strict quality control
4) We provide competitive prices, reliable quality products and swift delivery
5)The products are exported to Chile, Peru, Vietnam, Indonesia, Malaysia, India, the Philippines, Thailand, Laos, Russia, Turkey, Iran, north Korea, Kazakhstan,Azerbaijan, Latvia and so on ,more than 30 countries and regions.
the certificate of our factory
our overseas friend visit our factory
If you want to know about our products in details, Welcome to contact me at any time.
| Company | Zhengzhou Jinma Mining Machinery Co., Ltd |
| Name | Cherry Fan |
| Tel | +86-371-67511065 |
| Fax | +86-371-67512579 |
| Mobile | +86-13503866295 |
| Skype | cherry74120 |
| Web |
