2016 Hot Selling Concrete Batching Plant Price
Description of PLD series Concrete Batching Plant
Zhengzhou Jinma PLD Series Concrete Batching Plant is one kind of automatic batching equipment matched with suitable mixers. It can automatically finish 3-6 kinds of materials batching process, like sand, stone and cement. It can batch materials to one or two mixers, so it greatly improving the efficiency of the work.
The same model with different feed bins
Application of PLD series Concrete Batching Plant
1, Concrete Batching Plant is widely used in all kinds of large and medium-sized construction project and concrete mixing station.
2, Concrete Batching Plant is usually used for sand, stone, cement, etc.
Specifications of PLD series Concrete Batching Plant
Model |
PLD600 |
PLD800 |
PLD1200A |
PLD1200B |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Weighing dipper volume |
600 |
800 |
1200 |
1200 |
1600 |
2400 |
3200 |
4800 |
Storage hopper volume |
2*1.2m3 |
2*2m3 |
2*3m3 |
3*3m3 |
4*5m3 |
4*10m3 |
4*18m3 |
4*25m3 |
Capacity(m3/h) |
30 |
48 |
60 |
60 |
75 |
120 |
160 |
280 |
Batching accuracy |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
Maximum weighing (kg) |
2000 |
2000 |
3000 |
3000 |
3000 |
4000 |
5000 |
8000 |
Aggragate Kinds |
2—3 |
2—3 |
2—4 |
2—4 |
2—5 |
2—5 |
2—5 |
2—5 |
Feeding Height (mm) |
1850 |
2430 |
2600 |
2600 |
2900 |
2900 |
2300 |
2300 |
Feed belt speed(m/s) |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
Power (kw) |
3*2.2 |
3*3 |
3*3 |
4*3 |
5*4 |
11 |
15 |
18.5 |
Weight(kg) |
1360 |
2300 |
2800 |
410 |
560 |
8500 |
10500 |
14000 |
Overall Dimension(L*W*H) (mm*mm*mm) |
3800 |
5400 |
6000 |
8400 |
12000 |
10000 |
14500 |
15520 |
Concrete Batching Plant made by Jinma Mining Machinery Co.,Ltd

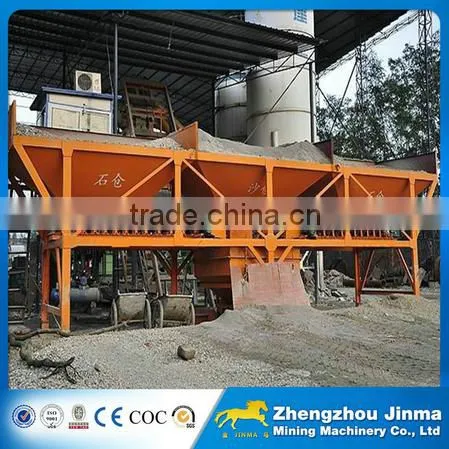

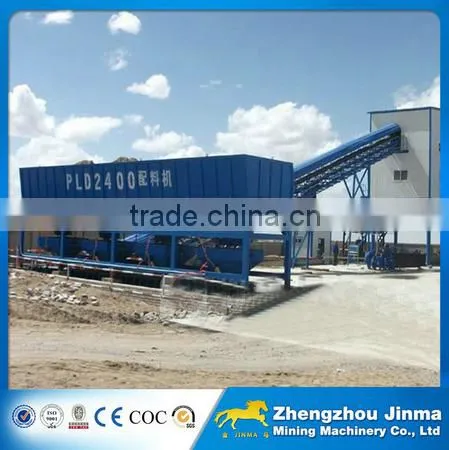

The working sites from Jinma clients
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
While expanding domestic market constantly, the products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
For the more details of machine and future cooperation. Pls contact us if you feel free.
we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation.
