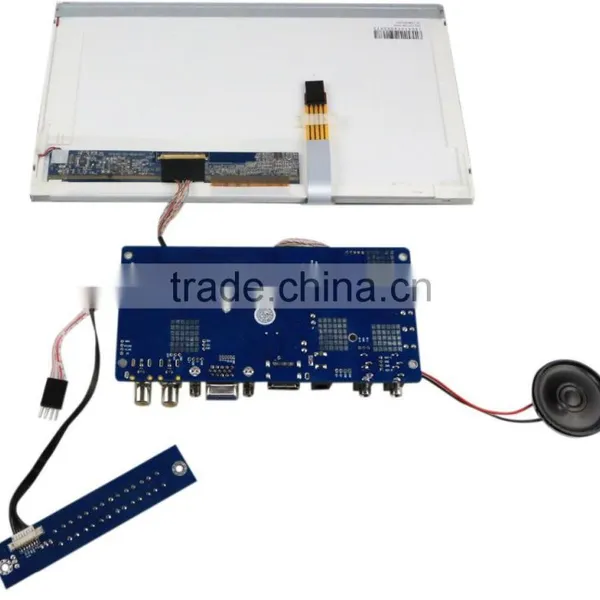

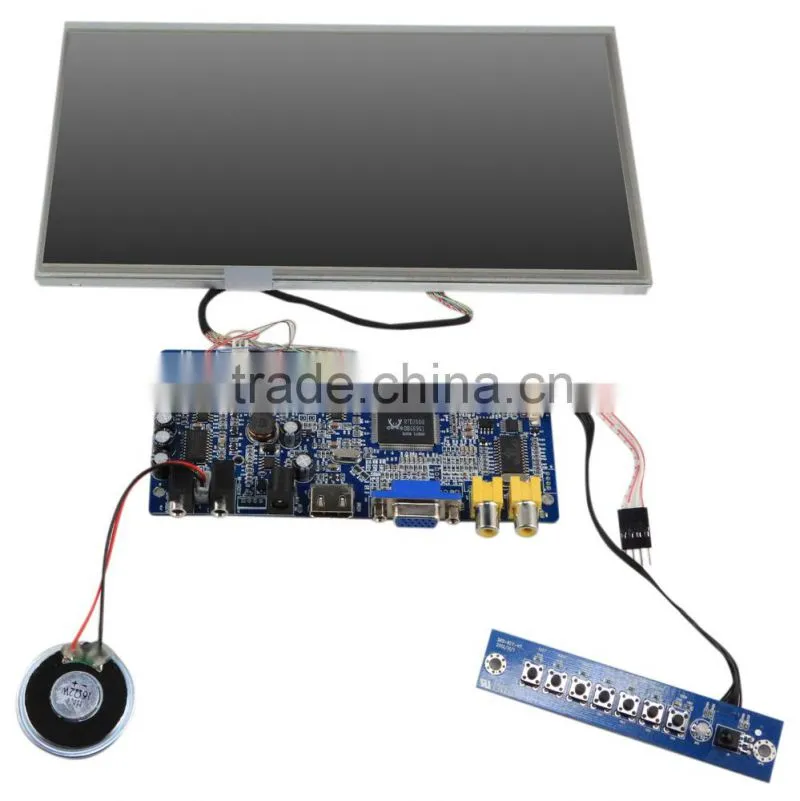

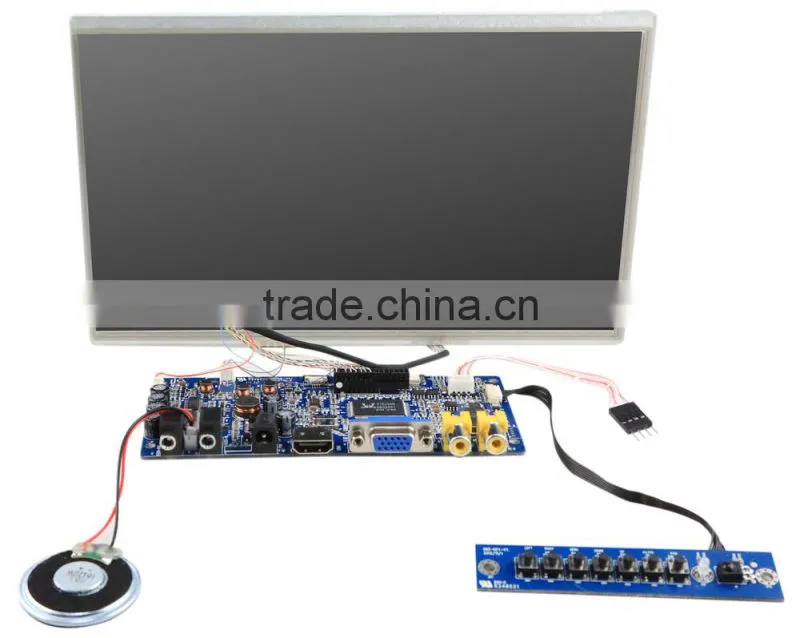

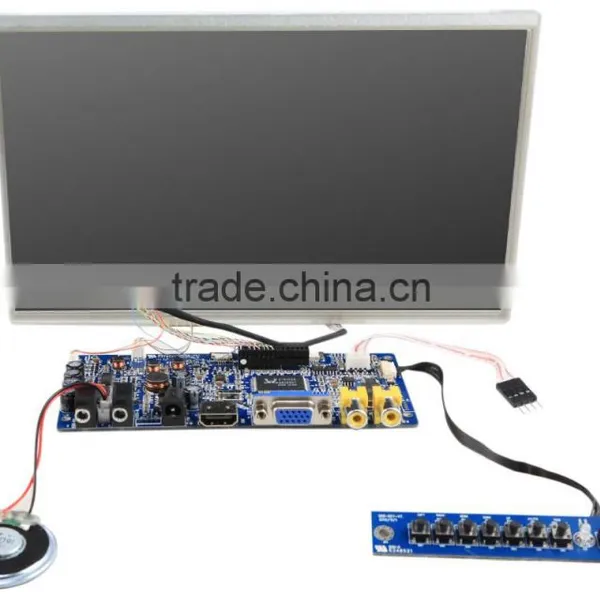

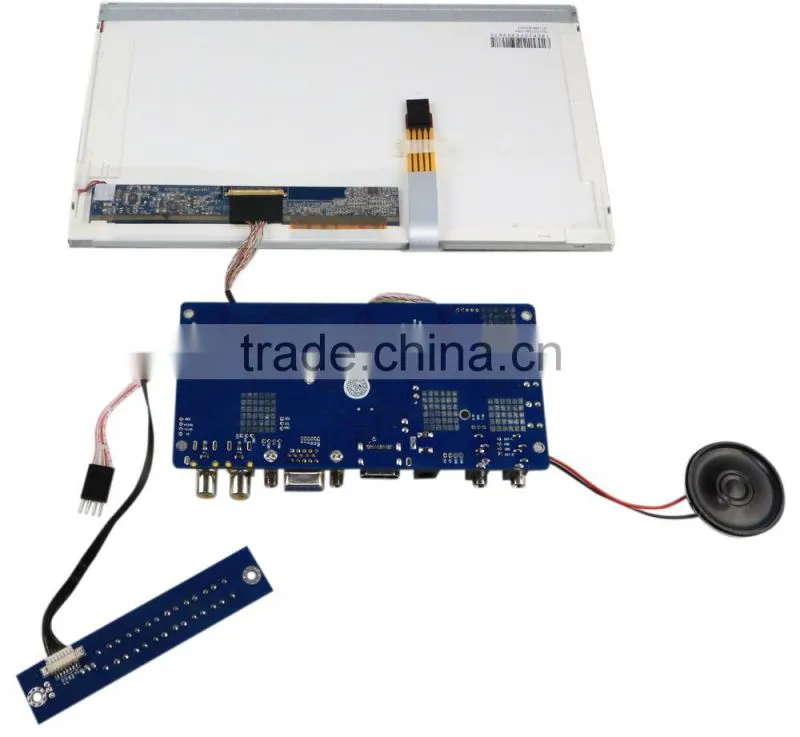

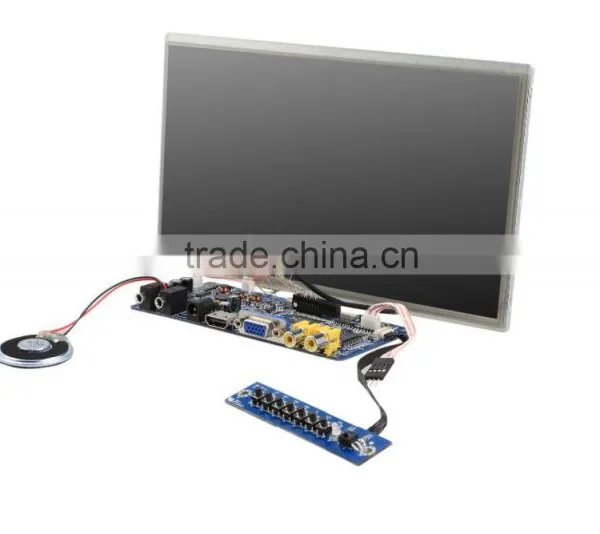

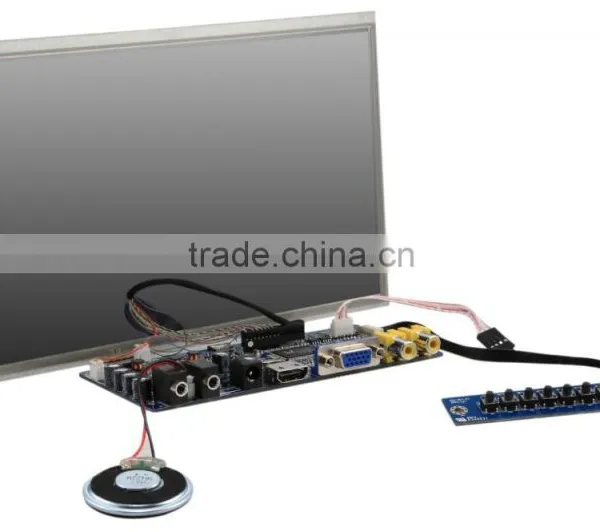

10.1 inch AV VGA LCD Controller Board Kit
Negotiable
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- Xiamen
- Credit Card
You May Like
-
12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
-
7" Open Type Module (OTM) Touch Screen Industrial LCD Display
-
7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
-
17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
-
19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
-
12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
| Products Status: | Stock | Screen Size: | Other, 10.1'' | Type: | Other, Resistive, TFT |
| Interface Type: | Other, HDMI, VGA, Video, Audio | Resolution: | Other, 1024x600 | Brand Name: | Neway(display screen) |
| Model Number: | SKD101NT(display screen) | Place of Origin: | Fujian, China |
Product Description
- 10.1 inch AV VGA LCD Controller Board Kit
Product Show
Product Overviews
Specification
- 10.1 inch AV VGA LCD Controller Board Kit
| LCD Size | 10.1 inch |
| VGA input | o |
| Video input | o |
| Audio input | o |
| HDMI input | o |
| DVI input | OPTIONAL |
| YPBPR input | o |
| S-video input | OPTIONAL |
| LCD Resolution | 1024 x 600 PIXELS |
| Brightness | 200 cd/m2 |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast | 500:1 |
| View Angle | 70°/70°(L/R) 40°/50°(U/D) |
| Touch Panel | 4-Wires Resistive / 5-Wires Resistive optional |
| Touch Interface | USB / RS232 optional |
| OS Support | Windows XP/NT4/9X/ME, WINCE, MAC, MS-DOS, Linux,Windows Vista / Windows 7 (32 bit & 64 bit) |
| Speaker | o |
| Power | DC9-15V |
| Power Consumption | ≤6w |
| Work Temperature | -20~60°C |
| Storage Temperature | -30~70°C |
| LCD Module Size | 235.0(W) X 145.8(H) X 6.1(D) mm |
| Weight | 625g |
| VGA Cable | x 1pcs |
| Power Adapter | x 1pcs |
| Touch Pen | x 1pcs |
| USB Touch Cable (For Touch Model) | x 1pcs |
| Driver CD | x 1pcs |
| Remote Control | x 1pcs |
- 10.1 inch AV VGA LCD Controller Board Kit
