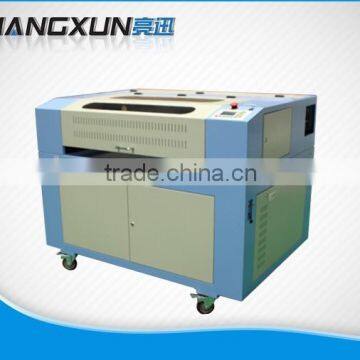

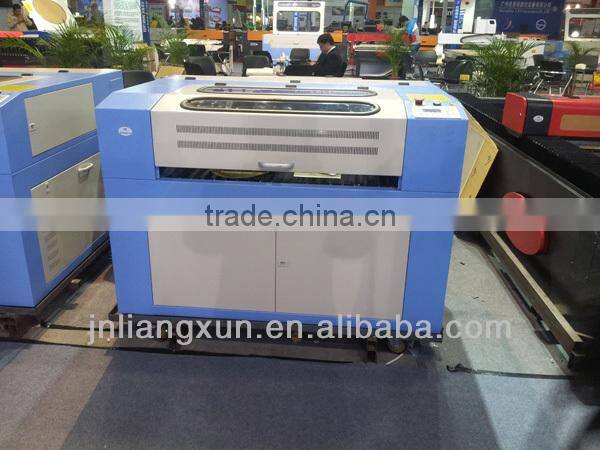

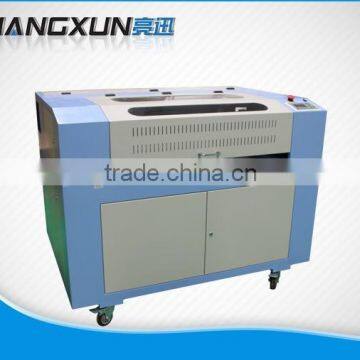

LX960 power laser pointer for cutting plastic christmas stencil
1.Product features
LX960 series machines adopt DSP digital controlling technology,self-design laser power supply,incorporate designed frame and structure to guarantee stable work.The new software is matched to AutoCAD,coreIDRAW CAD and all other graphics processing softwares for outputting original graphics.This series machines firstly use USB port data interface plugging and momentary data transmission to realise high efficiency without accounting computer resource.The LCD controlling panel brings friendly computer-human interface and easy operation.
The most advanced DSP controlling technology developed firstly in this field offers functions of successive,rapid and curved cutting,opitimization of shortest processing path to create high efficiency.Compensation of luminance decrease is made automatically in the course of engraving to keep identical cutting in different areas.Production efficiency is greatly improved through using rapid controlling software for cuting and buffering function in high speed movement.
2.Specifications:
Name: |
LX960 |
Processing area: |
900mm*600mm (3feet*2feet) |
Laser power: |
60W,80W |
Laser type: |
Sealed Co2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw, AutoCAD, Photoshop |
Whole machine size: |
1420mm*1020mm*1150mm |
Engraving speed: |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-20 mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Interface: |
USB |
Minimum shaping character |
letter 0.8mm, Chinese 2mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Option: |
Up and down table, rotary attachment |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 3 months |
Option: |
Rotary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |
Net weight: |
190KGS before package, 240KGS after package |
Applicable materials
Nonmetal materials such as acrylic, double color board, Plexiglas,Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
3.samples:
1) 24 hours technician professional and timely after-sale service.
2)12 months for machine,10 months for the laser tube,long life span of laser tube:1500-3000 hours.
3) International quality certificate:CE,FDA,SGS,ISO9001:2008
4) We are a professional laser machine supplier with for years experiences in China,offering various laser and CNC equipments.
Looking for agents all over the world!
