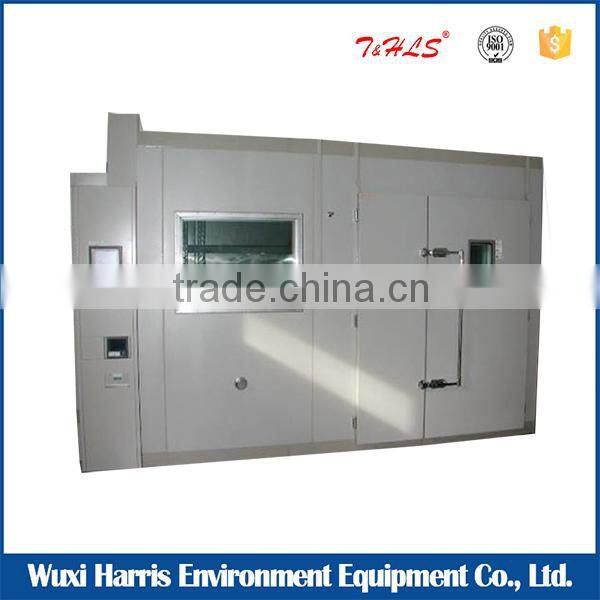

China Manufacturer Walk In Environmental Test Chamber, Walk in Chamber
US$ 4,200 - 4,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Harris
Model Number:
THS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer Climatic Temperature Cycling Test Cabinet, Humidity Temperature ChamberUS$ 3,800 - 5,800MOQ: 1 Set -
Low High Temperature Cycle Impact Test ChamberUS$ 20,000 - 23,000MOQ: 1 Set
-
Programmable High Low Temperature Laboratory Testing MachineUS$ 5,800 - 6,000MOQ: 1 Set
-
10 Years Factory Temperature Humidity Fingerprint Fume Display CabinetUS$ 5000.00 - 5000.00MOQ: 1 Set
-
Intelligent IP4 Rain Spray Simulation Environmental Test ChamberUS$ 4,600 - 4,800MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Harris
Model Number
THS
Power
Electronic
Usage
Other, Universal Testing Machine, material enviromental test

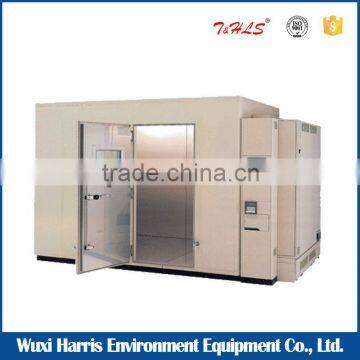

China Manufacturer Walk In Environmental Test Chamber, walk in chamber
Product Description
Walk in environmental test chamber is simulation under the condition of product in humid climate environment
combination(high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself.
Does need to be met the requirements of international standard (IEC, JIS, GB, MIL...).International quantum measurement procedures in order to achieve consistency (including test steps, conditions, methods) to avoid different cognitive, and narrowing the scope of measurement uncertainty.
| Specification |
THS walk in environmental test chamber |
|||||||||
| Workroom Sizes W*D*H (cm) |
Customizable walk in size |
|||||||||
| Temperature Range | A: -20°C-150°C B: -40°C-150°C C: -60°C-150°C D: -70°C-150°C | |||||||||
| Temperature Fluctuation | ≤±0.5°C(standard)/≤±0.2°C(optional) | |||||||||
| Temperature Evenness | ≤±2°C | |||||||||
| Temperature Deviation | ≤1°C | |||||||||
| Accuracy | 0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional) | |||||||||
| Humidity Range | 20%~98%R.H/10%~98%R.H(optional) | |||||||||
| Humidity Deviation | ±2% R.H | |||||||||
| Temperature Rise Speed | 1.0°C~3.0°C/min | |||||||||
| Temperature Down Speed | 0.7°C~1.2°C/min | |||||||||
| Time needed for heating | RT°C~150°C≤30min | |||||||||
| Time needed for cooling | RT°C~-40°C≤60min | |||||||||
| The machine noise | 72 dB(A) | |||||||||
| Load on the largest | 100kg,≤20kg/layer | 150kg,≤26kg/layer | 260kg,≤30kg/layer | 260kg,≤40kg/layer | 300kg,≤60kg/layer | |||||
| Equipment installed power | ~3.25KW | ~3.55KW | ~3.95KW | ~5.5KW | ~6.25KW | |||||
| material | Inner chamber:# SUS 304 stainless steel | The outer wall:A3 carbon steel plate with plastic spray/#SUS304 | ||||||||
| Wind Cycling Way | Centrifugal fan forced air circulation | |||||||||
| Refrigeration Way | Single stage compression refrigeration | |||||||||
| Refrigerater | French Tecumseh | |||||||||
| Refrigerants | R4O4A USA Dupont environmental protection refrigerant | |||||||||
| Condensing Way | Air-cooled or water-cooled | |||||||||
| Heater | Nickel chrome heating wire heater | |||||||||
| Humidifier | Semi-closed steam and wet | |||||||||
| Water Suplying Way | Automatic cycling water supply | |||||||||
| Controller | Japan OYO/Korea Temi | |||||||||
| Standard Accessoriesparts | 1 Observe window(double-deck cavity toughened glass),50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze,3 fuses,1 power line | |||||||||
