Wholesales Nantong roll roll machine
| W12-25x2000 Nantong roll roll machine performance: |
This four-roller rolling machineis used to coil plate into different sharps such as cylindrical form, conic form and arc, it adopted Japan hydraulic technical.
Top roll is main drive rolls, it can does vertical and level motion, up and down, parallel translation is display. This machine include pre-bending function. Max pressure of hydraulic system 19.5Mpa .
Structure and main parts: this equipment composed of work frame, upper roll device, main drive device, down roll device, side roll device, balance device, tuning device, hydraulic system, electricity control system, NC system, lubricate device.
| W12-25x2000 Nantong roll roll machine parameter: |
| NO | ITEMS | PARAMETER | UNIT |
| 1 | Max thickness | 2000 | mm |
| 2 | Max width | 25 | mm |
| 3 | Max plate width | 20 | mm |
| 4 | Minimum diameter | 800 | mm |
| 5 | Diameter of top shaft | 380 | mm |
| 6 | Diameter of bottom shaft | 340 | mm |
| 7 | Near-roll diameter | 280 | mm |
| 8 | Coiling speed | 4.5 | m/min |
| 9 | Work pressure | 16 | |
| 10 | Motor power | 30 | kw |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.

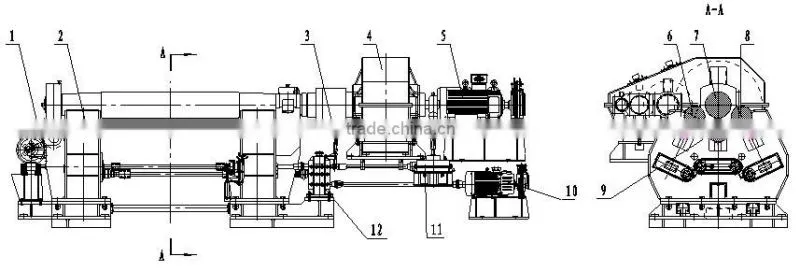

1. The front view
2. The side view

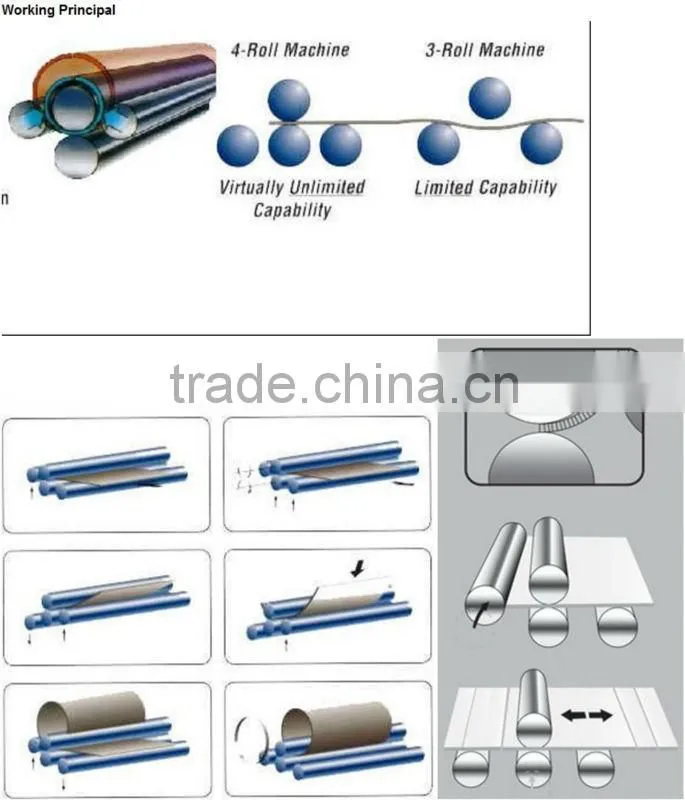

Working principle
1.How about your W12-25x2000 Nantong roll roll machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your W12-25x2000 Nantong roll roll machine ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
