Direct factory 3 rollers stainless plate rolling machine
| 1.The Feature of 3 rollers stainless plate rolling machine : |
The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation.
A cylinder can be rolled, including the pre-bending of both ends, feeding the plate forward through the rolls, one time only. The operator should find one only position for each side roll, to get part finished.Permanent lubrication technology(bearing life period without refueling).
| 2.The whole structure of 3 rollers stainless plate rolling machine : |
The main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism,main drive mechanism,downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.
It allows for excellent roundness, thanks to the Planetary movement of the side rolls (Accurl patent), moving them to the center of the machine (the tightest geometry available), compared to the inclined linear guides of other brands that, especially on large diameters, move farther away from the central roll and the plate clamping.clamping pressure is adjustable(no-existent skidding,productivity is 80% than three roller plate rolling machine).
3. The parameter of 3 rollers stainless plate rolling machine: |
If you have any other requirements for the size, pls do not hesitate to contact us, or you can advise us your ideas or thoughts for the machine, we can kindly design for you and communicate with you for the details.

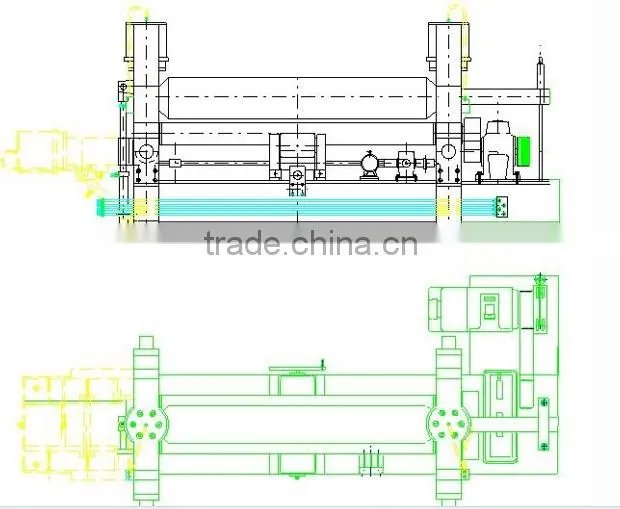

1.The front view:
2. The side view

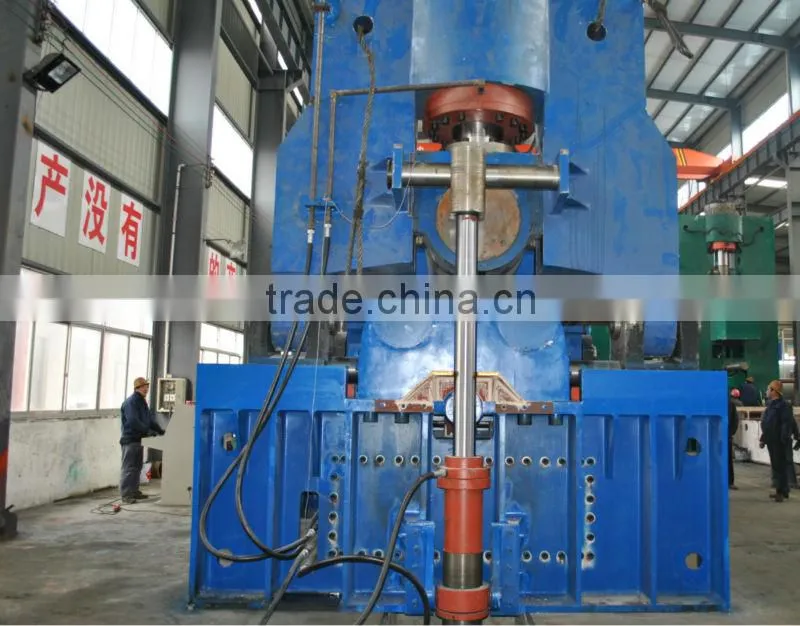

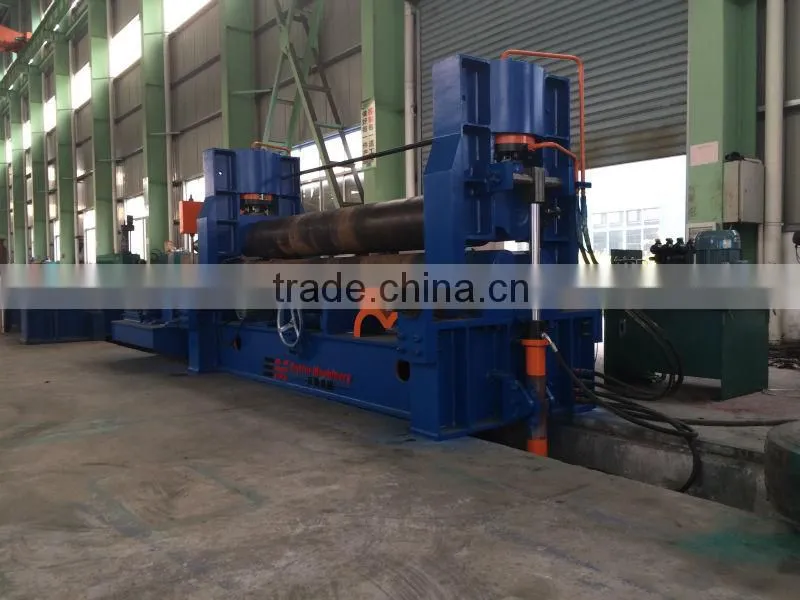

Detail photos:
1.How about your 3 rollers stainless plate rolling machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your 3 rollers stainless plate rolling machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
