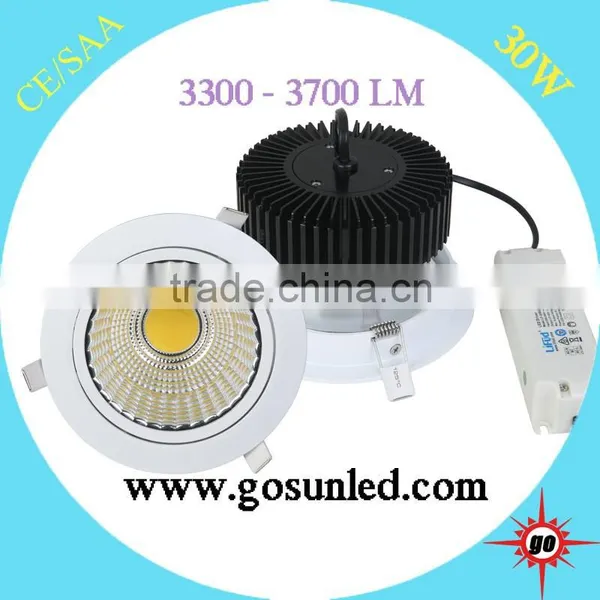

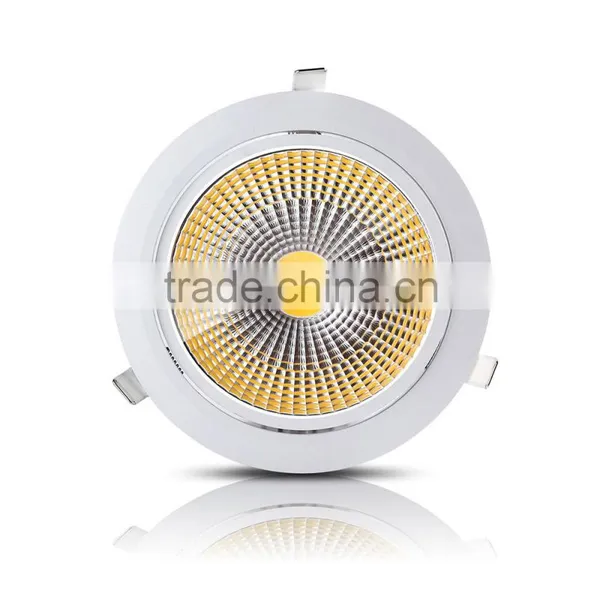

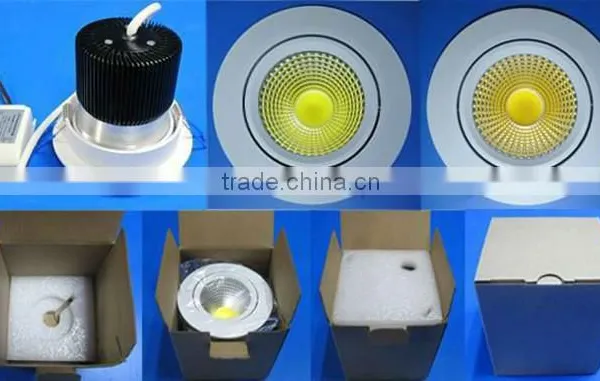

Super brightness 30w high efficiency CRI max97 led cob panel downlight
1.Product features
| LED power | 30W |
| Lamp consumption | 33W |
| Output | 3300-3700lm |
| Beam angle | 30 or 60 degree |
| Input voltage | AC100-277v |
| Frequency Range | 50-60HZ |
| CRI | >82 |
| Working Temperature | -40°c-65°c |
| Storage Temperature | -25°c-65°c |

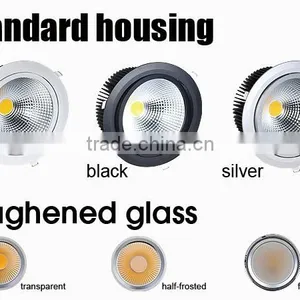

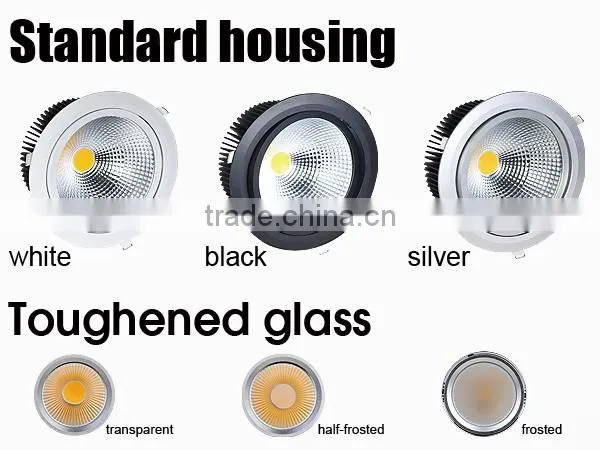

| Color of housing | Aluminum,white ot black |
| Lifespan | 50,000+hrs |
| Certificate | CE/ROHS/SAA/SASO/ERP/GS/SAA |
2. COB parameter
| PCB | Ceramic |
| Chip Brand | Epistar 10*23 |
| Output | 3800-7200lm |
| Chip Qty | 462pcs |
| CRI | >82 |
| Voltage | 30-36vDC |
| Current | 1000mA-1500mA |
3.Driver parameter
| Brand | Lifud |
| Input | AC100-277V,Max 305V |
| Output | 27-42vDC,350mA |
| Power Factor | 0.9-0.99 |
| Power Efficiency | 88% |
| Certificate | CE/TUV/UL/CQC/PSE/CB |
| Dimmable | Triac/0-10V/Dali/Wi-Fi available |
| <MEANWELL APC-12-350 is optional> | |
Product Datasheet:
| Part No. | Color | CCT | Output |
| GS-SCL-COB-30W-WW | warm white | 2900-3200k | 3300-3400lm |
| GS-SCL-COB-30W-NW | natural white | 4000-4500k | 3400-3550lm |
| GS-SCL-COB-30W-CW | cool white | 5900-6300k | 3550-3700lm |

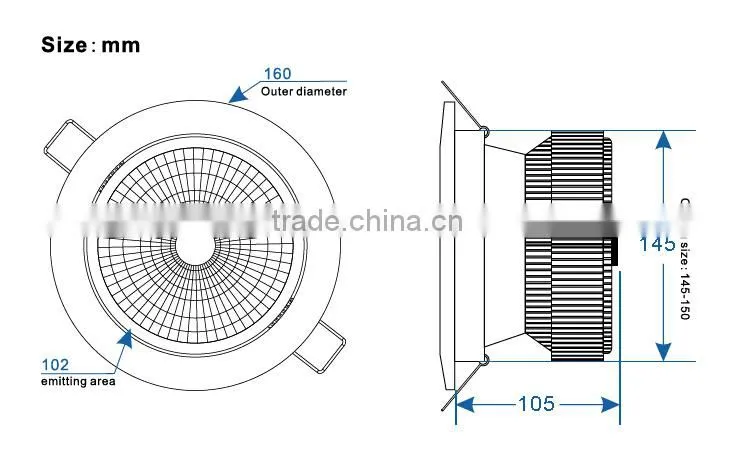

Dimension:

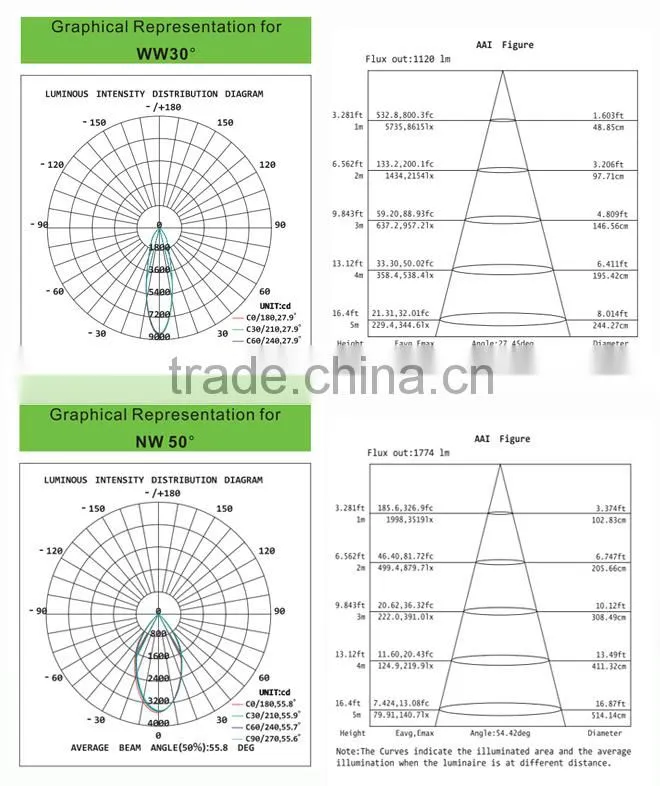

IES Test:(please contact us to get the IES file)
Comparision
Verified Information
The competitive advantage of product line:

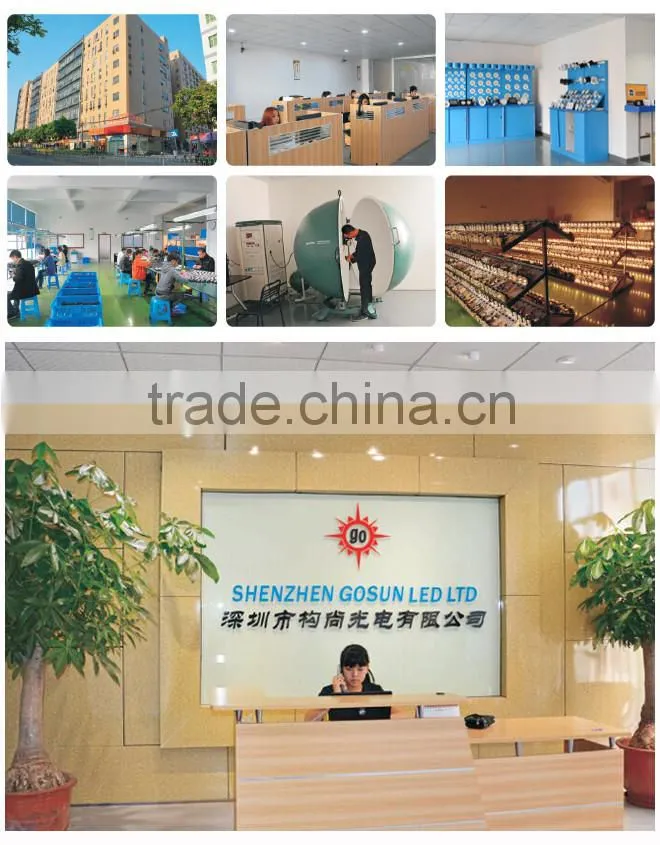

Company pictures
Production flow:
GOSUN aging room:

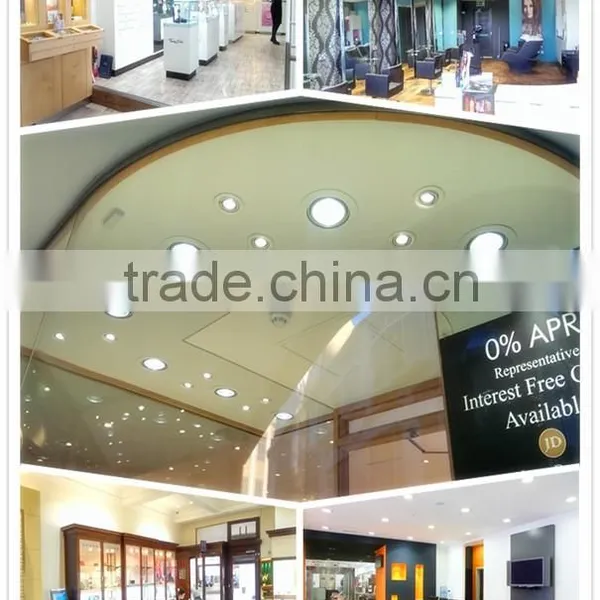

project picture:
My company has with BMW Land Rover 4S shop cooperation, with some senior hotels and shopping malls cooperation, our products are well received by the customer's favorite, the quality of our products is very good in peer.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Covering an area of 3,000 square meters, we now have over 150 employees, an annual sales figure that exceeds USD 8,000,000 ... View detail
Basic Information
| Product/Service (We Sell): | LED Downlight,LED Track light,LED spotlight,LED Panel,LED Ceiling light | |
| Number of Employees: | 51 - 100 People |
Trade & Market
| Main Markets: |
Africa South Asia Central America Eastern Asia Southeast Asia North America Domestic Market Mid East South America Oceania Eastern Europe Northern Europe Southern Europe Western Europe |
|
| Total Annual Sales Volume: | US$5 Million - US$10 Million | |
| Export Percentage: | 91% - 100% |
Factory Information
| Factory Size (ters): | 1,000-3,000 square meters | |
| Factory Location: | Building 7, Longteng Road, Shiyan Town, Baoan District,Shenzhen | |
| Number of Production Lines: | 4 | |
| Number of R&D Staff: | 5 - 10 People | |
| Number of QC Staff: | 5 - 10 People |
Supplier Assessment Report
| Do you want to know more about this company before you make a deal? Request an Assessment Report. |
| Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers. |
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Our quality control:
* All products must go through five checks before manufacturing process.
* Raw material full check before production.
* Full check after every individual process finished.
* Full check after production half-done.
* 500 times on and off testing after production finished.
* Full check after production packed before shipping.
Welcome to place trial order to test our product!!!
