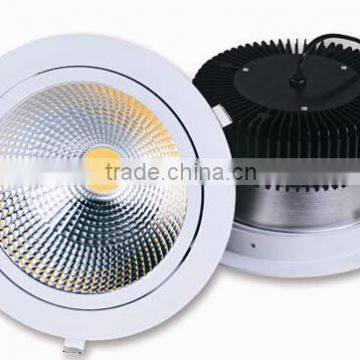

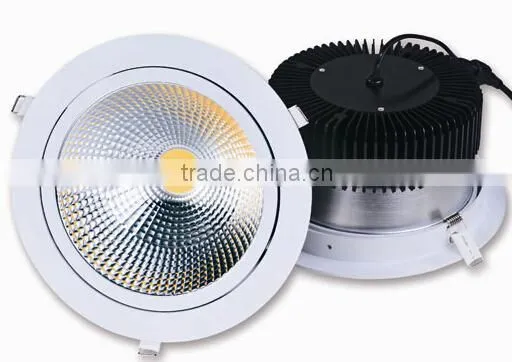

2016 popular new competitive Good heat dissipation 50w embedded downlight cob led downlight
1.Product features
| LED power | 50W |
| Lamp consumption | 55W |
| Output | 5600-6300lm |
| Beam angle | 20 or 50 degree |
| Input voltage | AC100-277v |
| Frequency Range | 50-60HZ |
| CRI | >82 |
| Working Temperature | -40°c-45°c |
| Storage Temperature | -25°c-65°c |
| Color of housing | Aluminum,white ot black |
| Lifespan | 50,000+hrs |
| Certificate | CE/ROHS/SAA/SASO/ERP/GS |

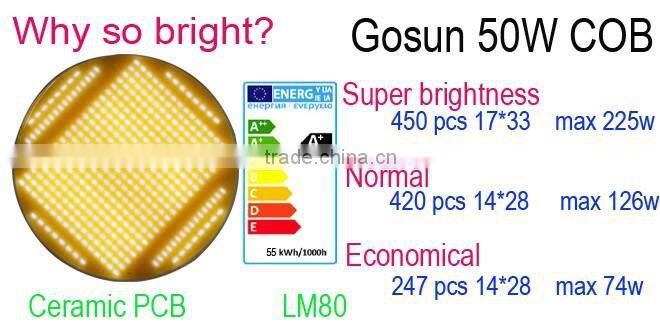

2. COB parameter
| PCB | Ceramic |
| Chip Brand | Epistar 18*33 |
| Output | 6500-7200lm |
| Chip Qty | 440pcs |
| CRI | >82 |
| Voltage | 39-42vDC |
| Current | 1500mA(MAX3750mA) |
3.Driver parameter
| Brand | Lifud/MEANWELL/EAGLERIES/PHILIPS |
| Input | AC100-277V,Max 305V |
| Output | 27-42vDC,1500mA |
| Power Factor | 0.9-0.99 |
| Power Efficiency | 90% |
| Certificate | CE/TUV/UL/CQC/PSE/CB |
| Dimmable | Triac/0-10V/ Dali/Wi-Fi |
| <MEANWELL APC-12-350 is optional> | |
Product Datasheet:
| Part No. | Color | CCT | Output |
| GS-SCL-COB-30W-WW | warm white | 2900-3200k | 5600-5800lm |
| GS-SCL-COB-30W-NW | natural white | 4000-4500k | 5800-6000lm |
| GS-SCL-COB-30W-CW | cool white | 5900-6300k | 6000-6300lm |

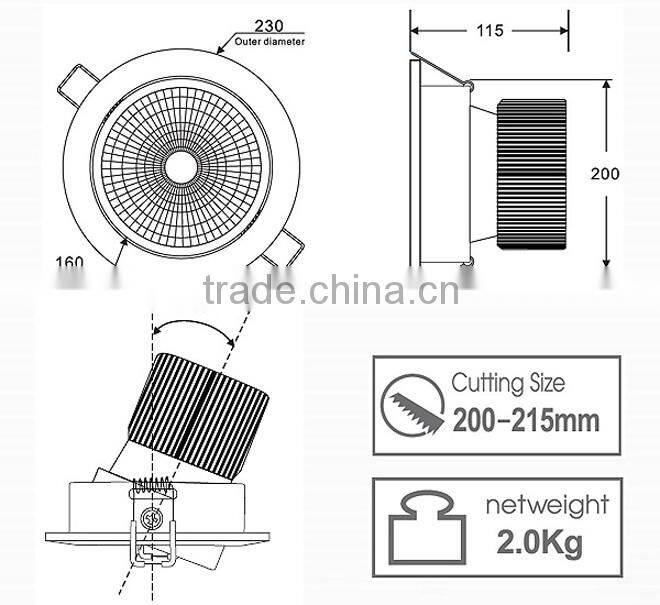

Dimension:

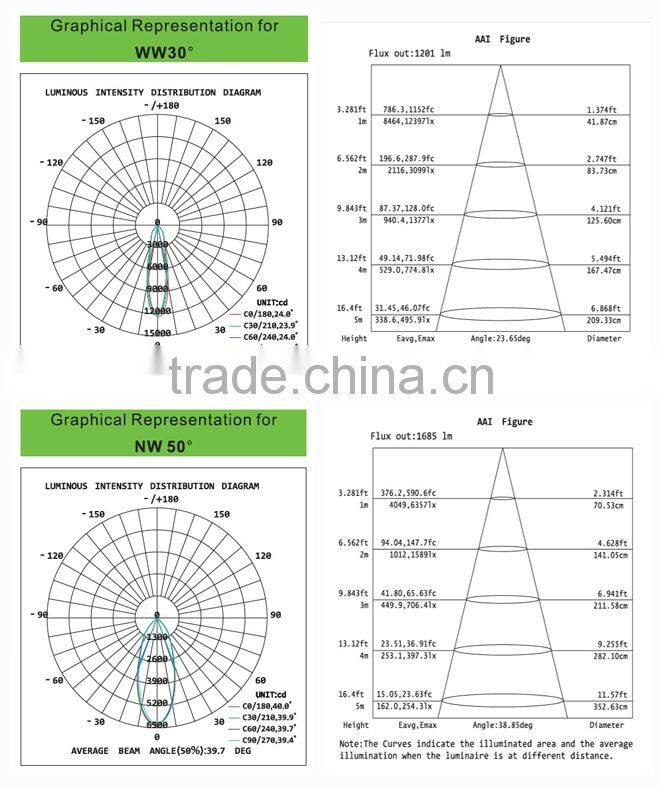

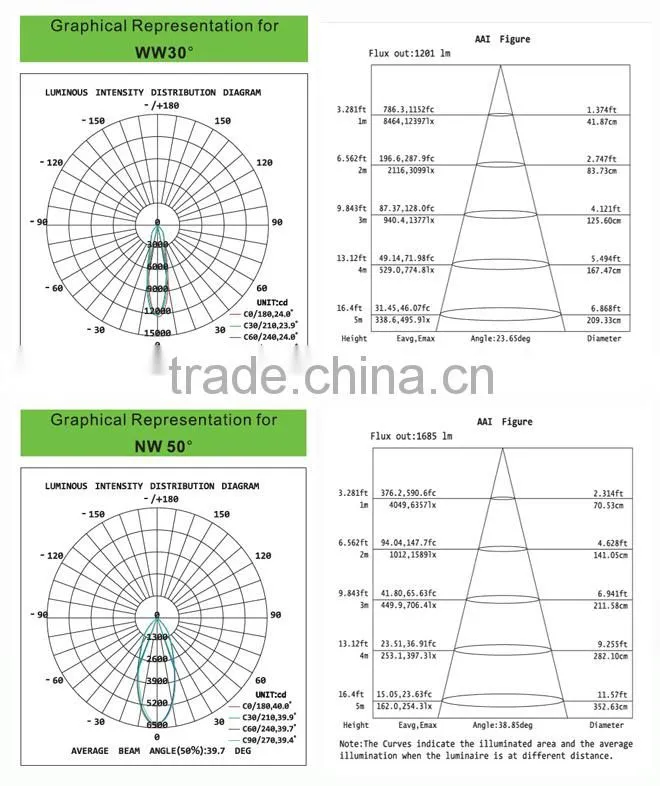

IES Test:(please contact us to get the IES file)

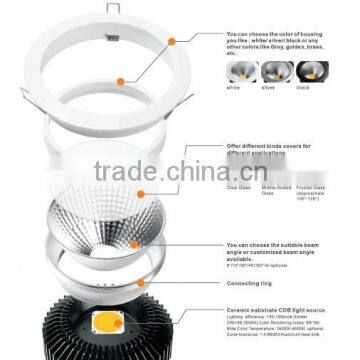

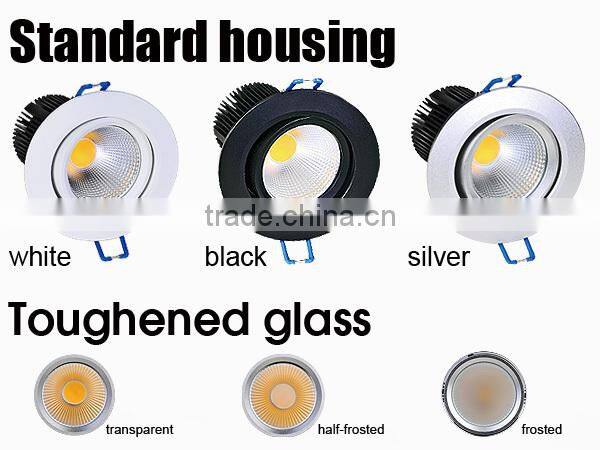

Options:
GOSUN certificates:
CE, ROHS, SASO, TUV, ERP test report for the whole lamp.
UL, SAA, TUV, CE, CB, PSE,ROHS for the driver.

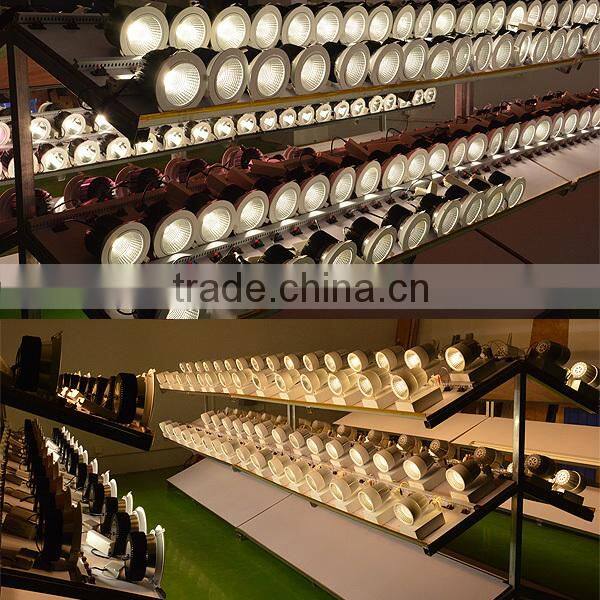

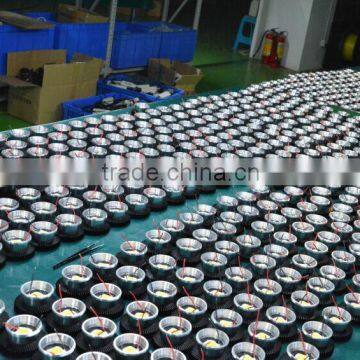

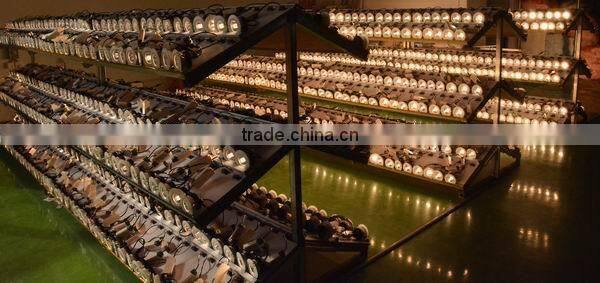

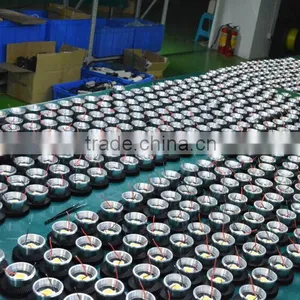

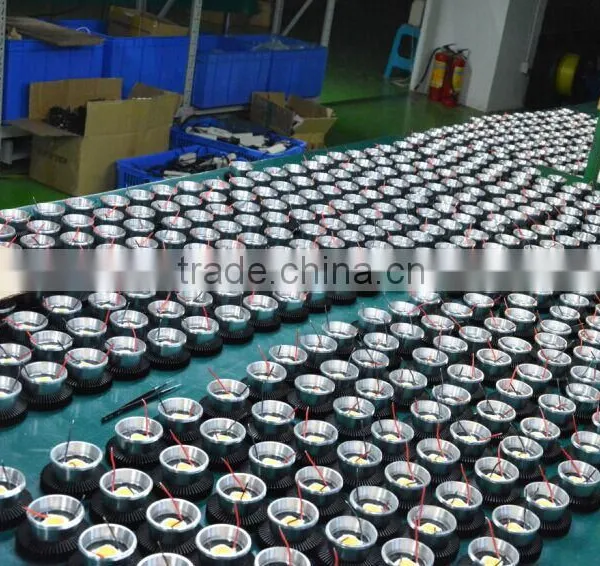

GOSUN aging room:

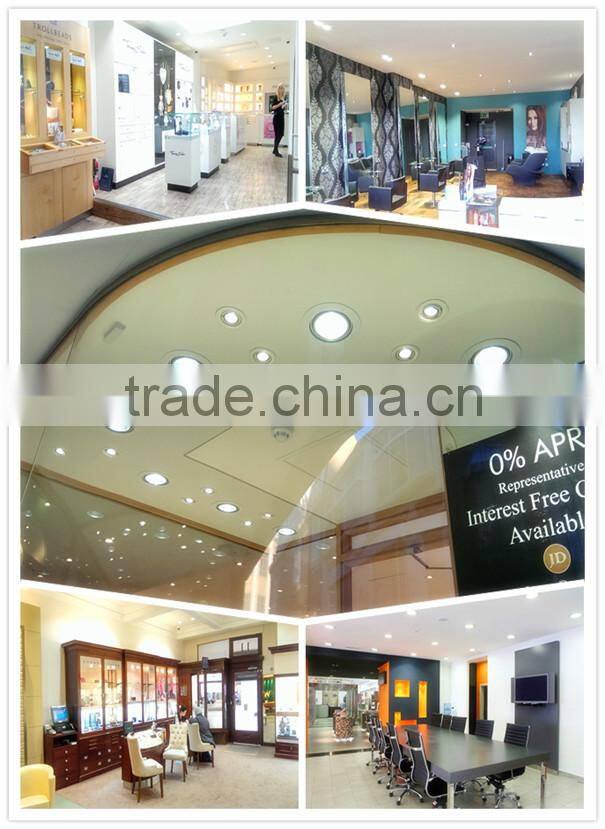

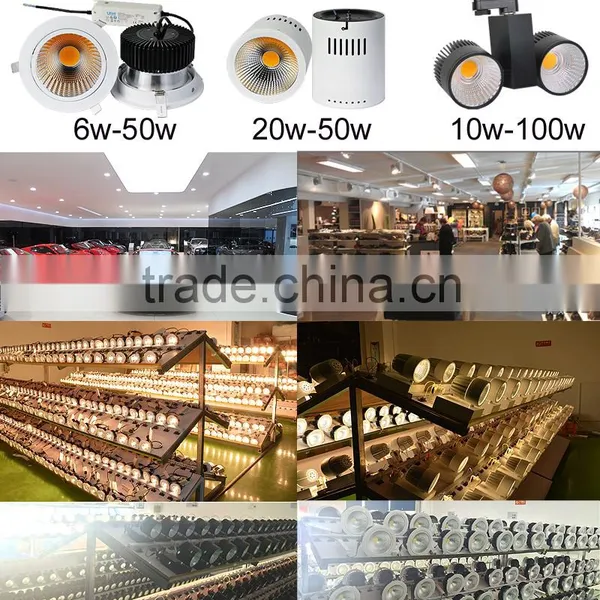

project picture:

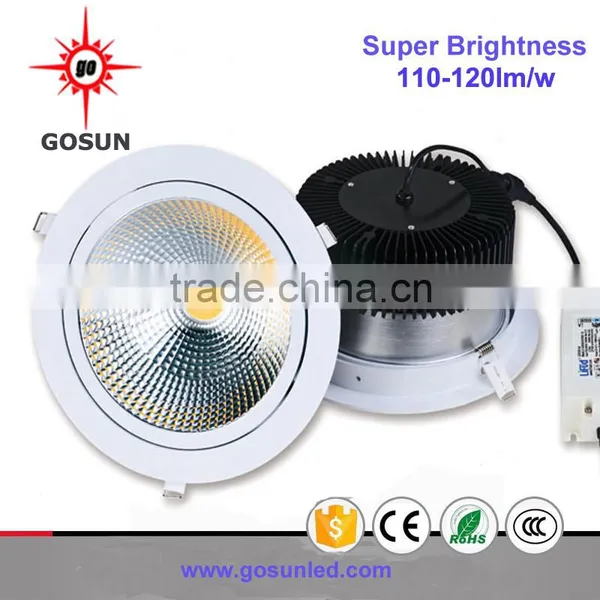

More pictures:

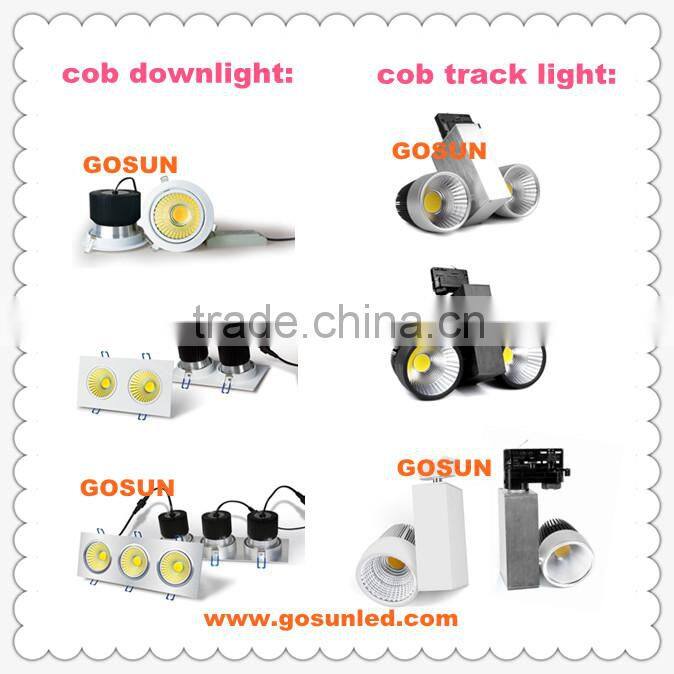

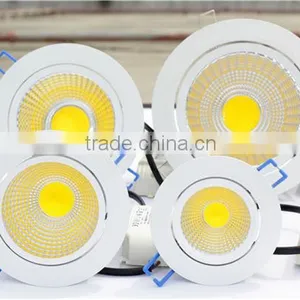

GOSUN more cob lamps:
Payment
Why choose GOSUN?
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Our quality control:
* All products must go through five checks before manufacturing process.
* Raw material full check before production.
* Full check after every individual process finished.
* Full check after production half-done.
* 500 times on and off testing after production finished.
* Full check after production packed before shipping.
Welcome to place trial order to test our product!!!
2016 popular new competitive Good heat dissipation 50w embedded downlight cob led downlight
2016 popular new competitive Good heat dissipation 50w embedded downlight cob led downlight
2016 popular new competitive Good heat dissipation 50w embedded downlight cob led downlight
