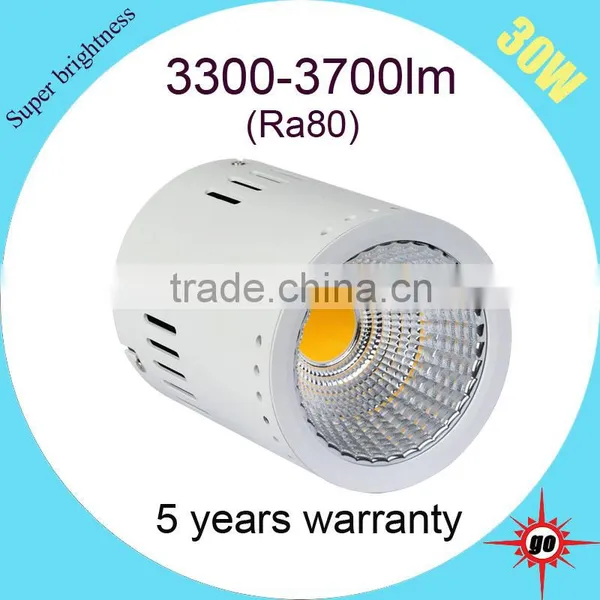

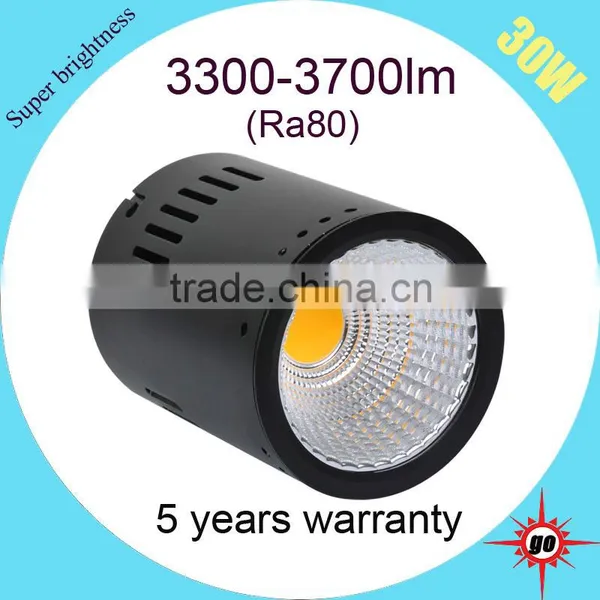

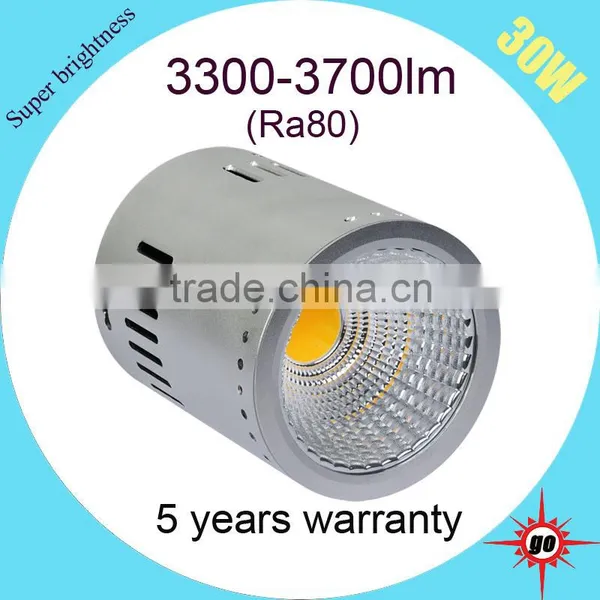

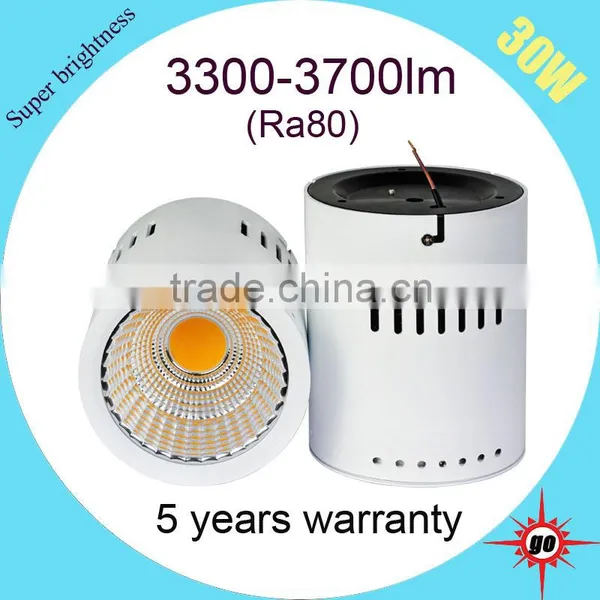

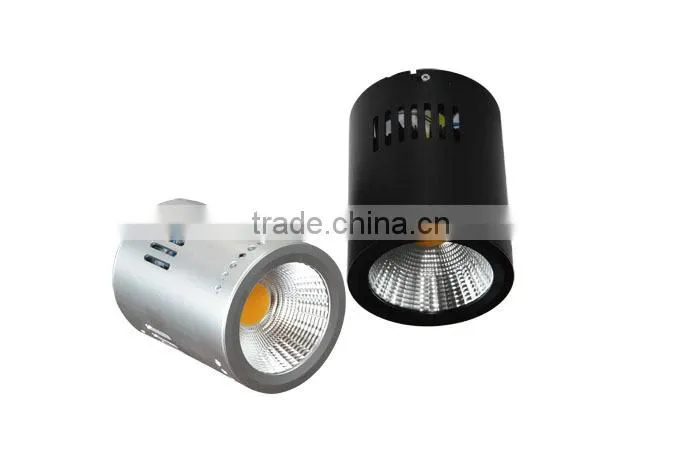

New design 30w Surface mounted LED downlight
1.Product features
| LED power | 30W |
| cob chips | Epistar 462pcs |
| Output | 3400-2500lm |
| Beam angle | 20 or 30 or 40 or60 degree |
| Input voltage | AC100-277V |
| Frequency Range | 50-60HZ |
| CRI | >82 |
| Working Temperature | -40°c-65°c |
| warranty | 5 years |
| Color of housing | Aluminum,white ot black |
| certificates | CE/ROHS/GS/SAA/SASO |
| Certificate | CE/ROHS/ERP/SAA/SASO/GS |
2.COB parameter
| PCB | Ceramic |
| Chip size | 14*28mil |
| Output | 2700-2800lm |
| Chip Qty | 300pcs |
| CRI | >82 |
| Voltage | 26-28vDC |
| Current | 700mA |
| Brand options | Gosun/Cree/brigelux/Citizen |
3.Driver parameter
| Brand | Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC |
| Input | AC100-277vAC |
| Output | 18-30vDC,700mA |
| Power Factor | 0.9-0.99 |
| Power Efficiency | 88% |
| Certificate | EMC/TUV/UL/CE/CQC/PSE |
| Dimmable | Triac /Dali /Wi-Fi available |

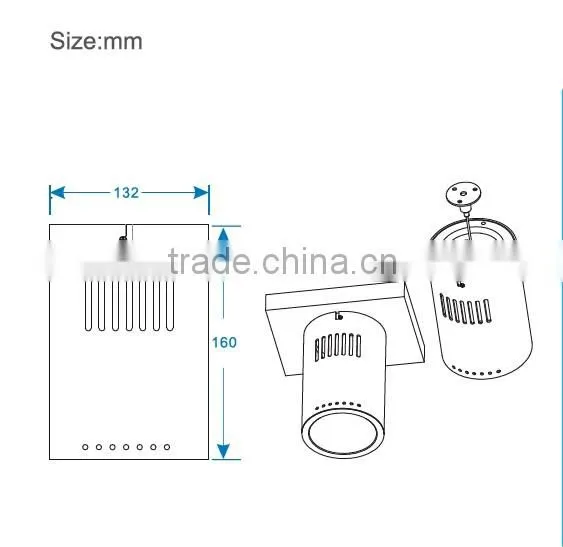

4.Dimension
| Data Sheet: |
| Part No. | Color | CCT | Output | Size(mm) |
| GS-SCL-COB-30W-WW | Warm White | 2900K-3200K | 2200-2300lm | φ132* H160 |
| GS-SCL-COB-30W-NW | Natural white | 3900K-4200K | 2300-2400lm | |
| GS-SCL-COB-30W-CW | Cool White | 5500K-6500K | 5900-6200lm |

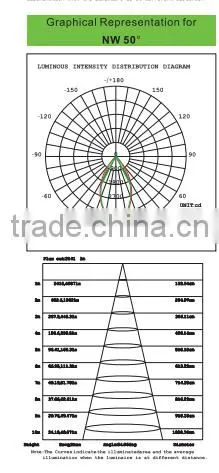

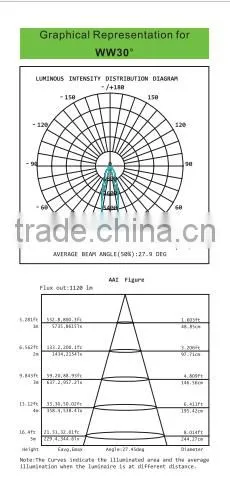

Test Report(Please contact us to get the IES files): |
(Note:The beam angle is only about 1/2 output of the all illuminated)

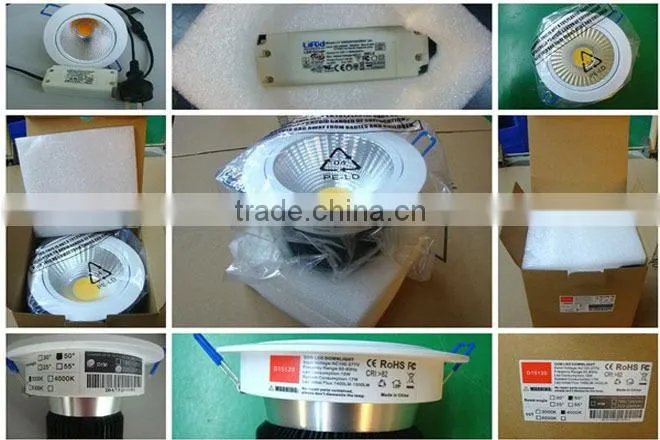

EPE Cotton and hard board protect: n
Shipment and payment:

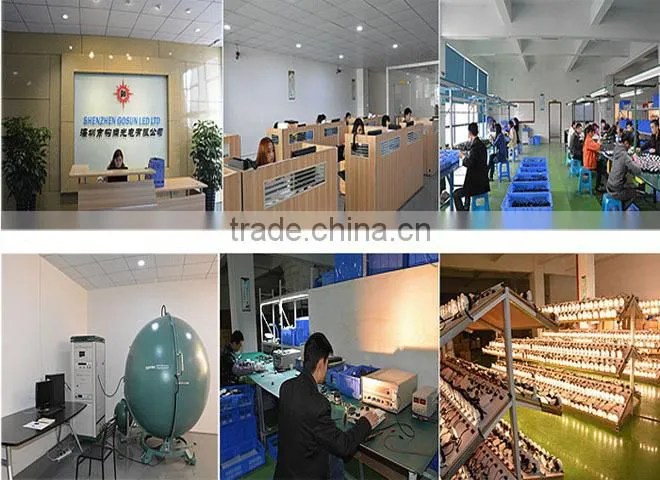

Company picture:

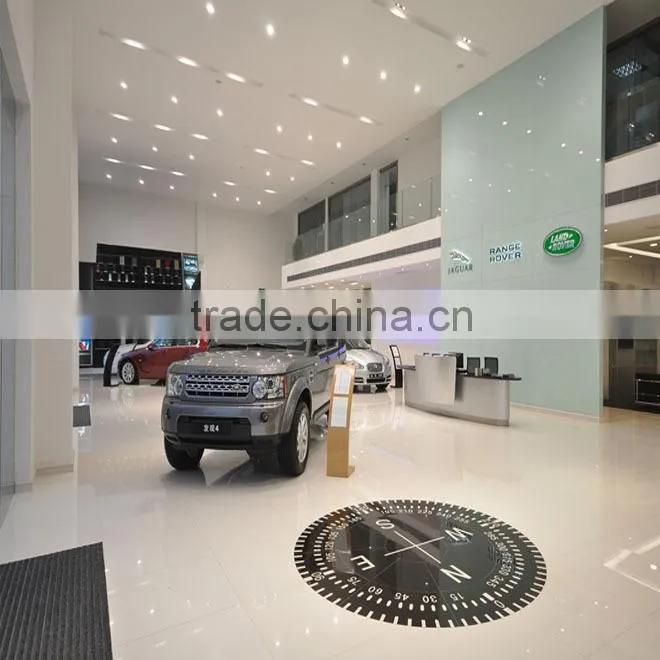

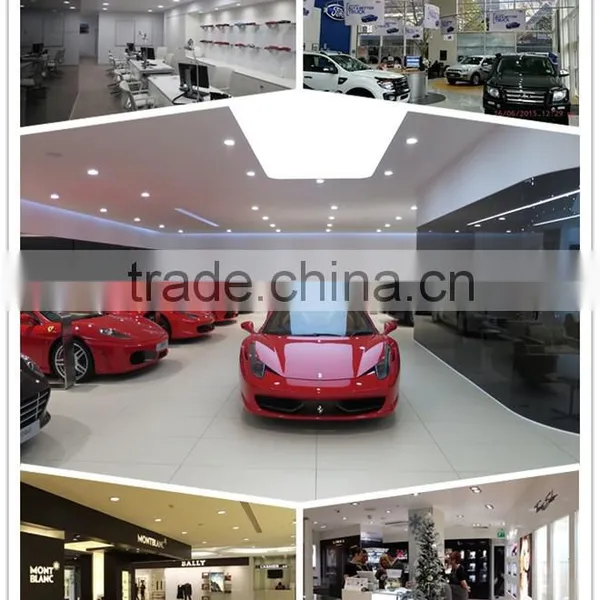

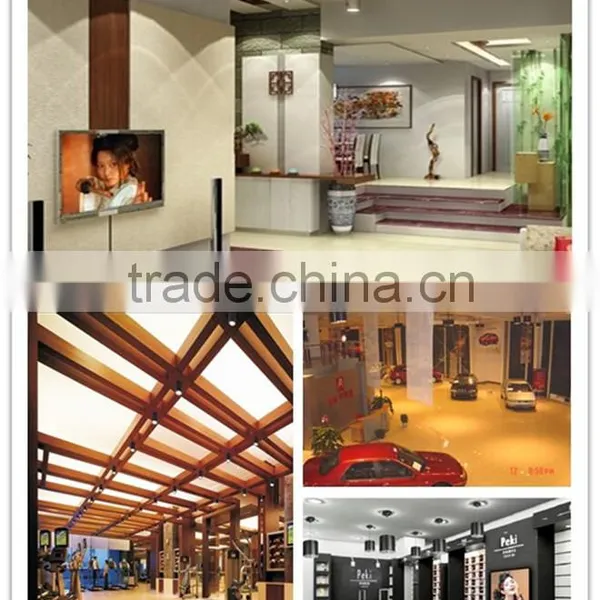

Projects for Landrover in England 2014.10

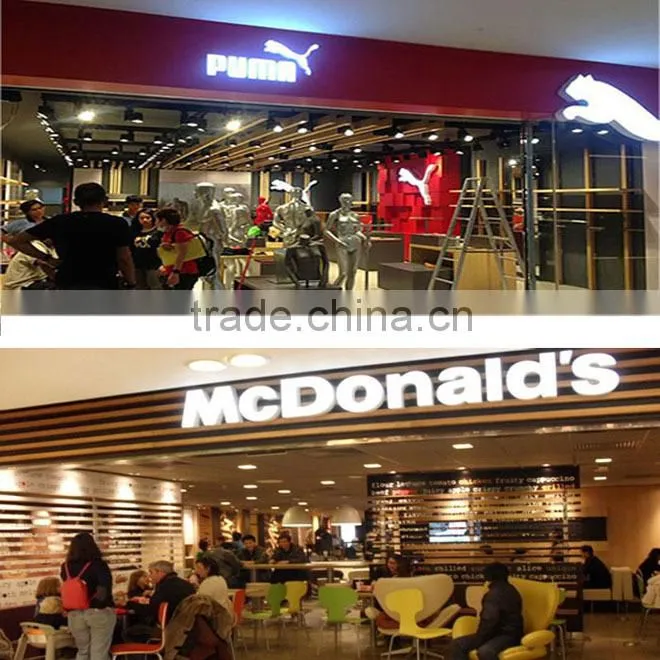

Poojects for PUMA McDOND'S Germany&France
Hong kong lighting fair 2014.10.27
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Our quality control:
* All products must go through five checks before manufacturing process.
* Raw material full check before production.
* Full check after every individual process finished.
* Full check after production half-done.
* 500 times on and off testing after production finished.
* Full check after production packed before shipping.
