High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight

Name: High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight
Brand: Gosun
SKU: 104287077
Availability: InStock

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-1

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-2

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-3

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-4

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-5

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight thumbnail-6

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-1

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-2

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-3

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-4

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-5

High Brightness 2*10w Square Led Cob Downlight 230v Black Dimmable Downlight photo-6

US$ 1 - 29.6 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

LED

Warranty(Years):

5years

Input Voltage(V):

100-277vAC

Contact Supplier Request Quote Chat Now

Shenzhen Gosun LED Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source LED

Warranty(Years) 5years

Input Voltage(V) 100-277vAC

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2600

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, natural white

Working Temperature(℃) -40, 45

Working Lifetime(Hour) 50000

Lamp Body Material Ceramic

IP Rating IP54

Certification CE, SAA, SASO

Model Number GS-CL-COB-2*10W

Place of Origin Guangdong, China

Brand Name Gosun

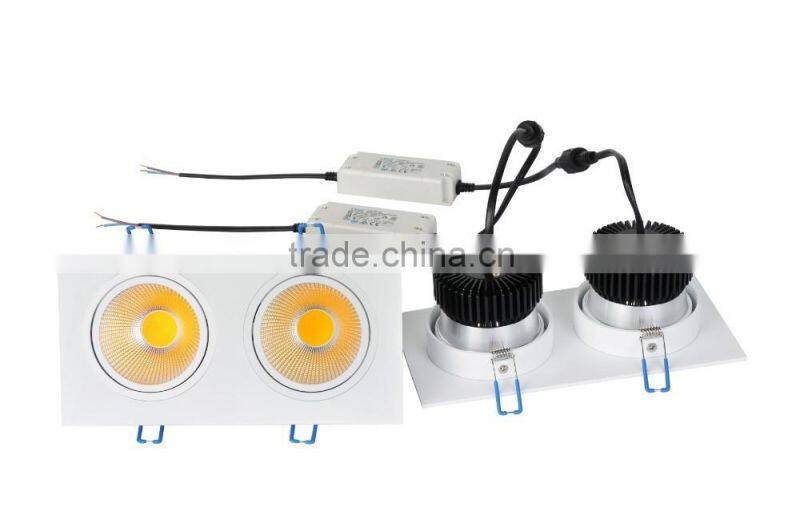

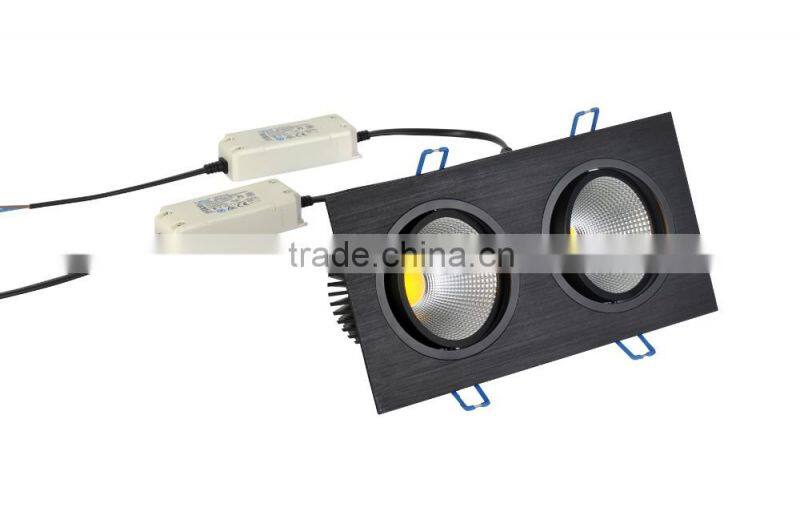

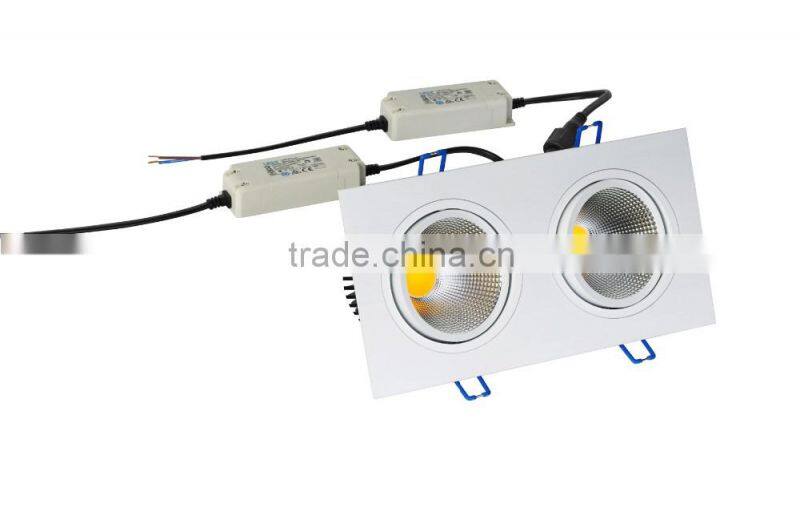

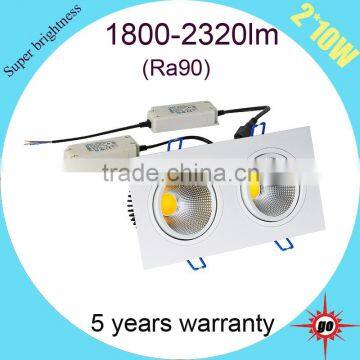

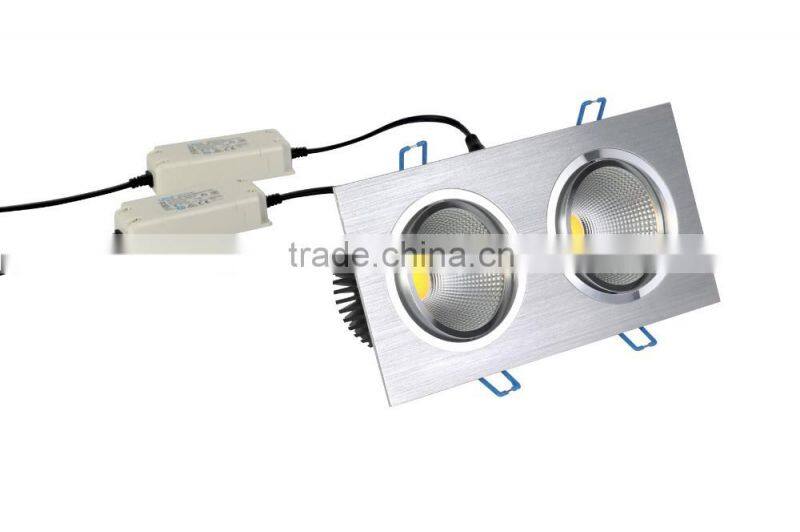

High brightness 2*10w square led cob downlight 230v black dimmable downlight

Specifications:

1.Output: 2400-2600lm.
2.CRI: 82.
3.Beam Angle: 30, 50.
4.Chip brand: Epistar 10*23

5.Certificate: CE/RoHS/SAS0/SAA

20W COB LED Downlight

Products Features:
(1)LED Power:2*10W.
(2)Lamp Consumption:24W.
(3)Output: 2000-2200lm.
(4)Input voltage:100-240v AC,

(5)Beam Angle:30°/50°
(6)CRI:> 82.

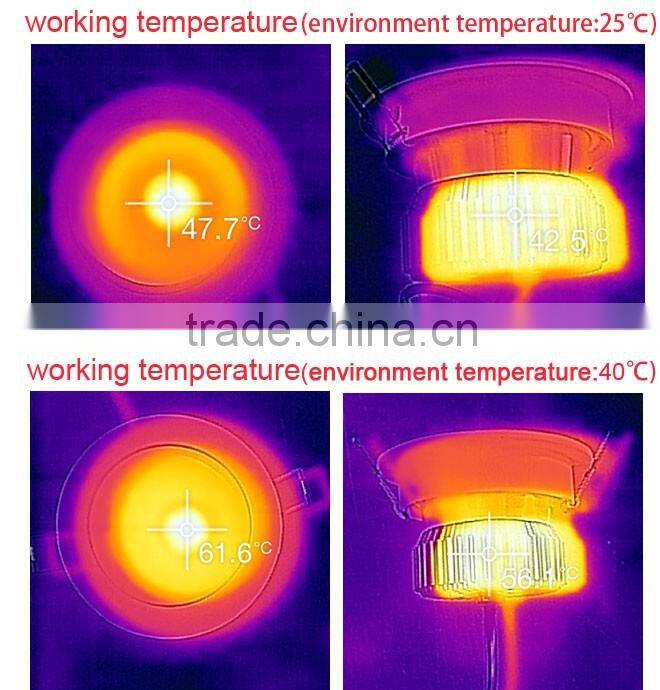

(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.

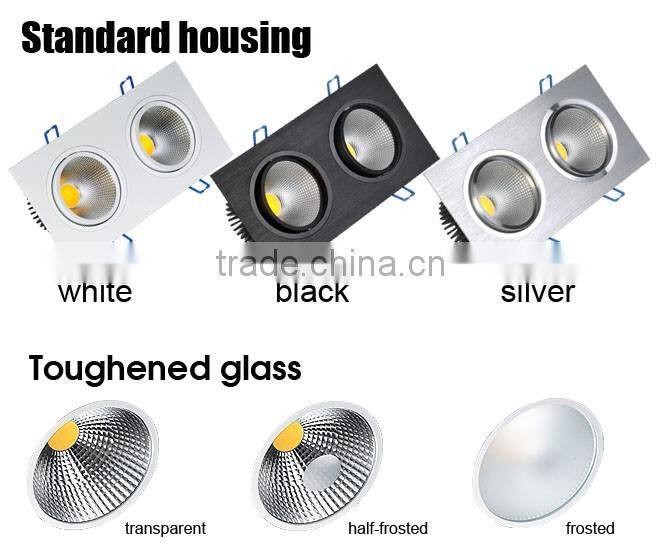

(9)Color of housing: white, black, aluminum.
(10)Frequency Temperature:50-60hz

(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/SASO/SAA
(13)Warranty: 5 years.

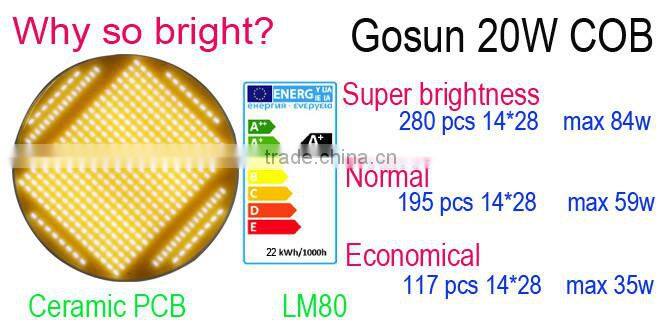

COB Parameter:

(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2600-2760lm.
(4)Chip Qty: 160pcs*2.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 320-350mA.

Driver Parameter :

(1)Brand: Lifud (LED Friend).
(2)Input:100-240v AC.
(3)Output: 25-40vDC, 320mA.
(4)Power Factor: 0.9-0.97

(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.

Product Datasheet:

Part No.	Color	CCT	Output
GS-CL-COB-2*10W-WW	warm white	2900-3200k	2200-2400lm
GS-CL-COB-2*10W-NW	natural white	3900-4200k	2400-2600lm
GS-CL-COB-2*10W-CW	cool white	5900-6200k	2600-2760lm

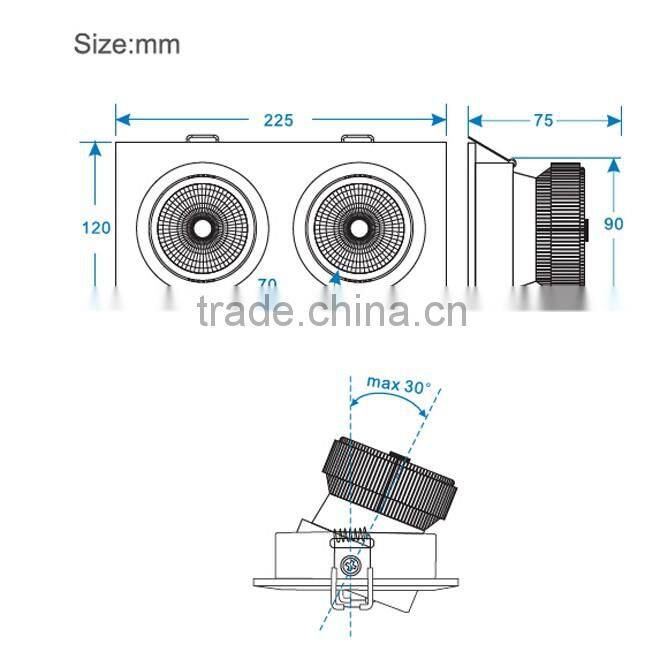

Dimension:

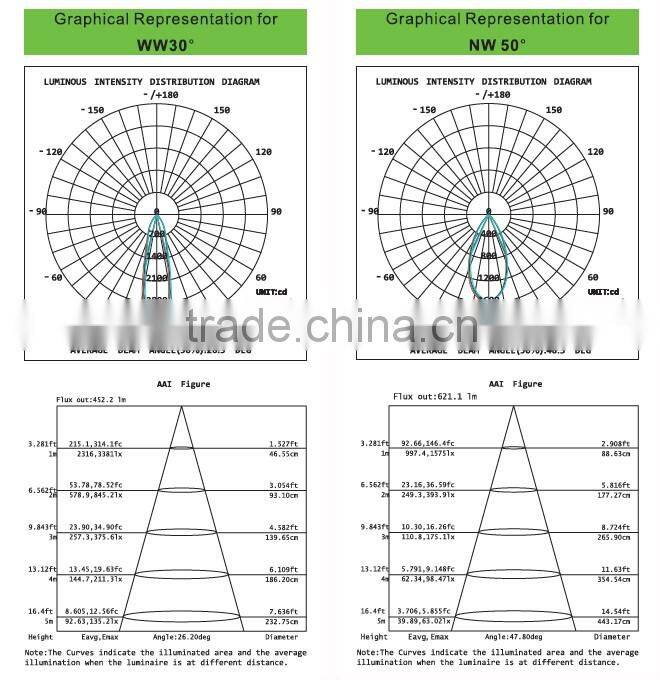

IES Test:(please contact us to get the IES file ):

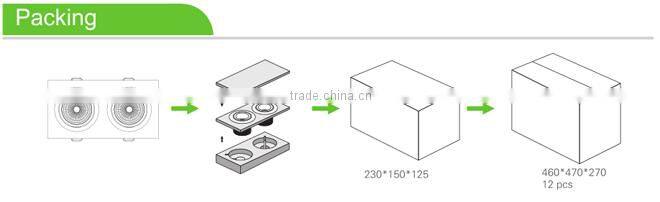

packing:

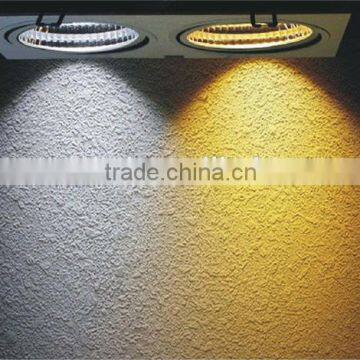

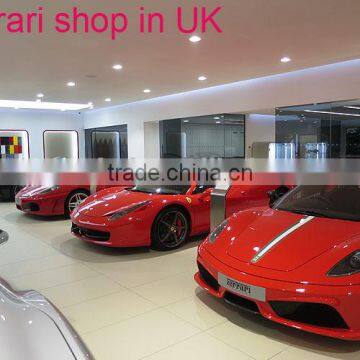

more picture:
