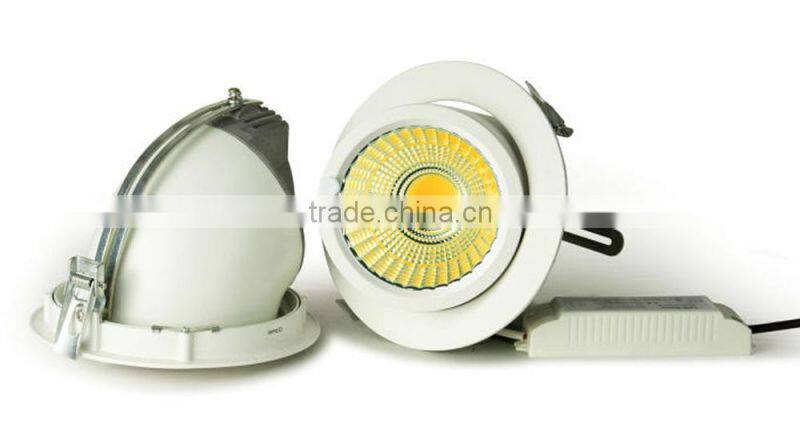

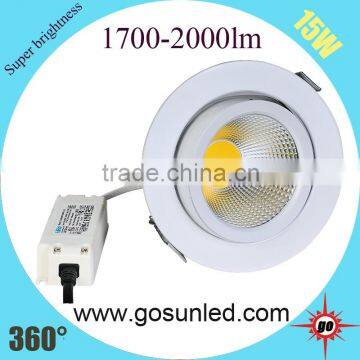

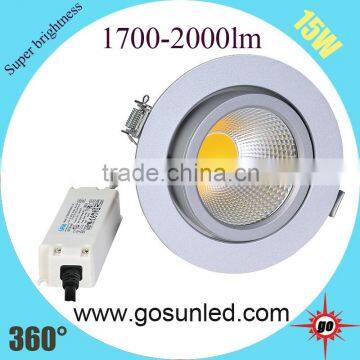

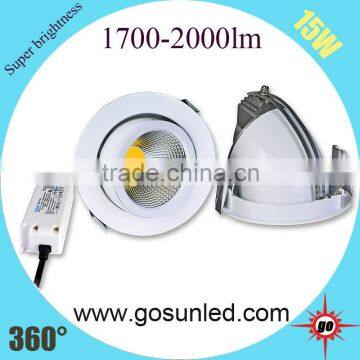

Dimmable 15w led gimable downlight led celling light
Available watt: 6W,10W,15W,20W,30W,40W,50W
1×6W,2×6W,3×6W
1×10W,2×10W,3×10W
1×15W,2×15W,3×15W
1×20W,2×20W,3×20W
1x30W, 2X30W,
1X40W,2X40W
Gimbal downlight:10w,15w,20w,26w
180° rotatable and 360° rotatable is optional
| Detail Descriptions: |
1.Product features
| LED power | 15W |
| Lamp consumption | 17W |
| Output | 1700-1800lm |

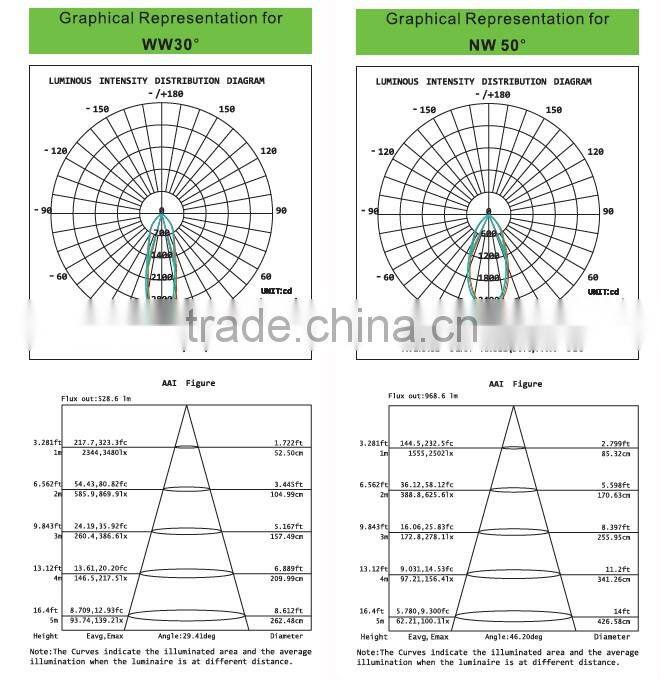

| Beam angle | 30 or 40 or50 degree |
| Input voltage | AC180-277V |
| Frequency Range | 50-60HZ |
| CRI | >82 |
| Working Temperature | -40°c-45°c |
| Storage Temperature | -25°c-65°c |

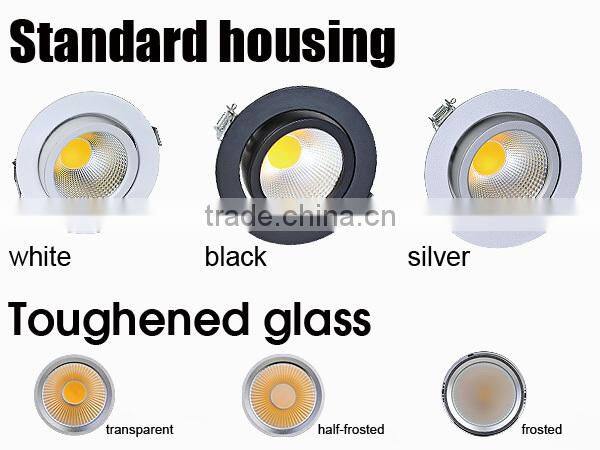

| Color of housing | Aluminum,white ot black |
| Lifespan | 50,000+hrs |
| Certificate | CE/ROHS/ERP/SAA/SASO |
2.COB parameter
| PCB | Ceramic |
| Chip Brand | Gosun/Cree/bridgelux/Citizen/Epistar |
| Output | 1400-1500lm |
| Chip Qty | 220pcs |
| CRI | >82 |
| Voltage | 30-33vDC |
| Current | 500mA(max1320) |
3.Driver parameter
| Brand | Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC |
| Input | AC100-277vAC |
| Output | 27-42vDC,500mA |
| Power Factor | 0.5-0.6 |
| Power Efficiency | 82% |
| Certificate | EMC/TUV/UL/SAA/CB/PSE |
| Dimmable | Triac/ Dali /WI-FI available |
| Data Sheet: |
| Part No. | Color | CCT | Output | Size(mm) |
| GS-SOCL-COB-15W-WW | Warm White | 2900K-3200K | 1600-1700lm |
φ150*H134 φ138(hole) |
| GS-SOCL-COB-15W-NW | Natural white | 3900K-4200K | 1700-1800lm | |
| GS-SOCL-COB-15W-CW | Cool White | 5900K-6200K | 1800-1900lm |
| More pictures for your reference: |

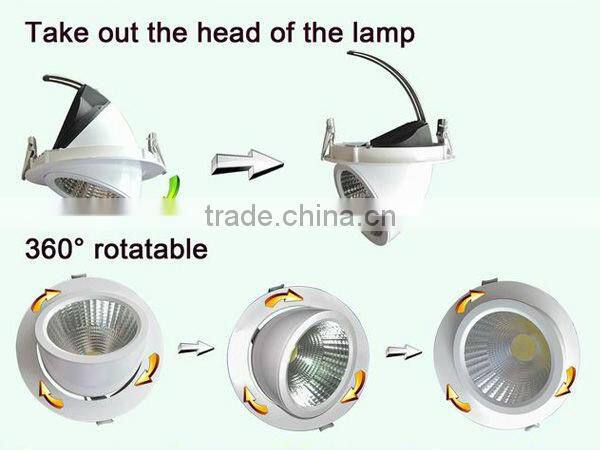

Rotatable:

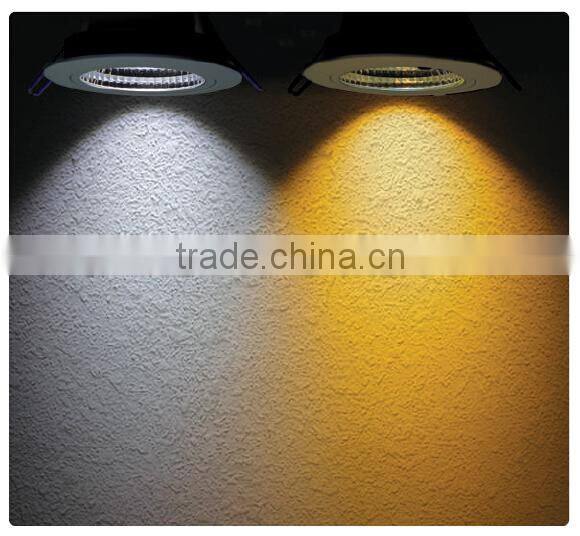

Lighting:

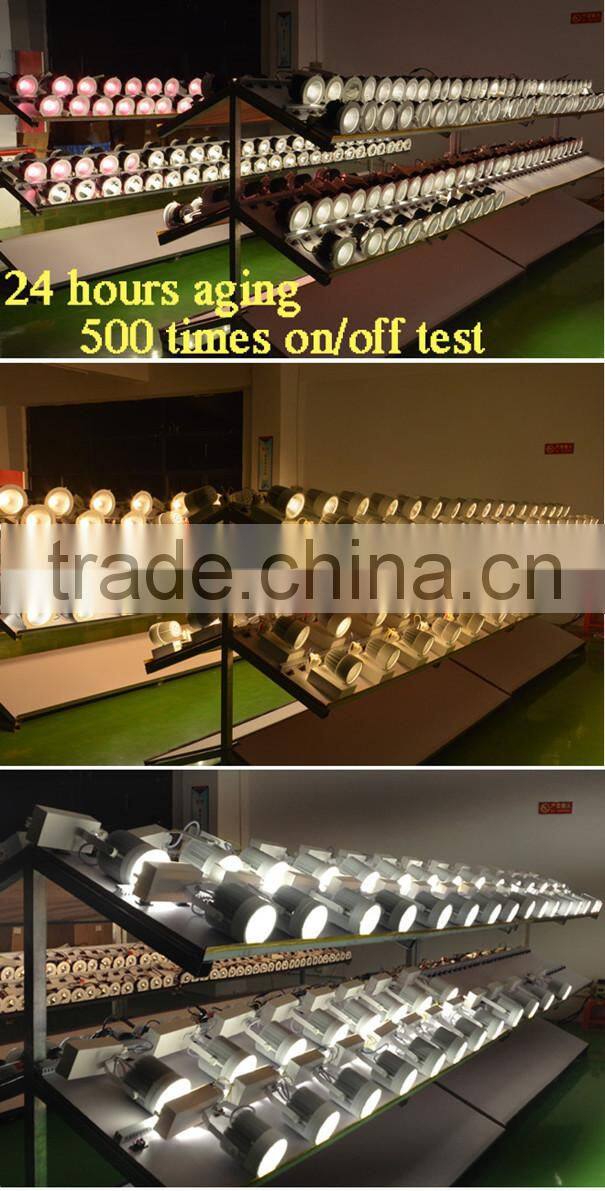

| Aging picture: |
| Certificaes(CE/RoHS): |

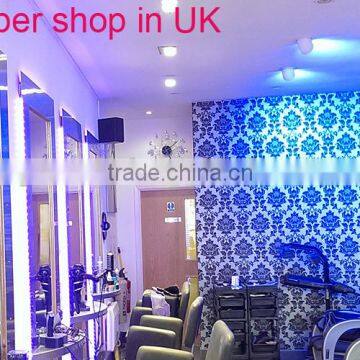

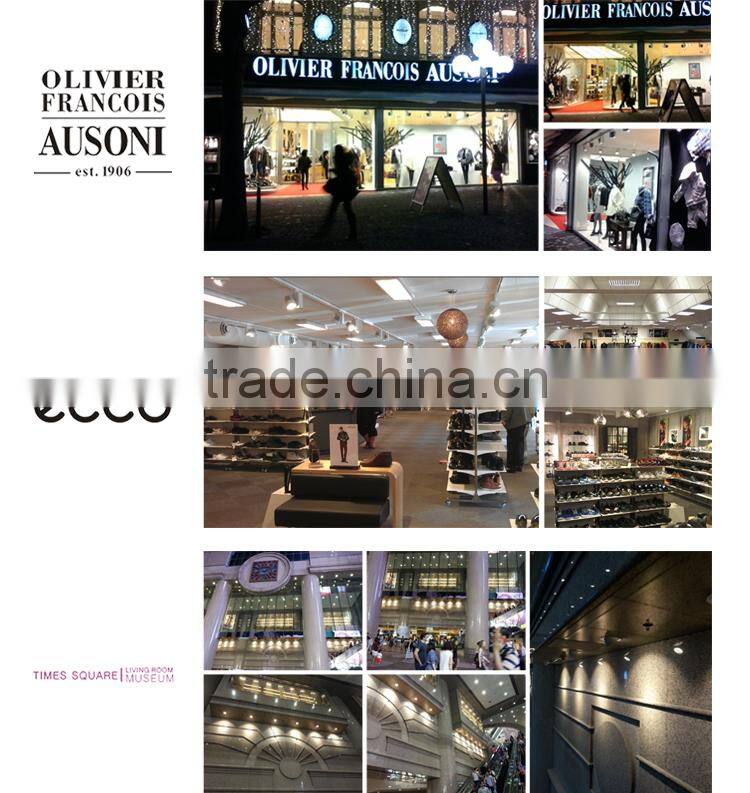

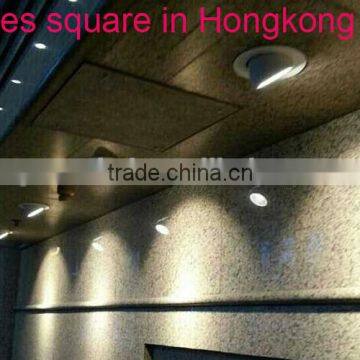

Project:
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3. We can help you to design and put into any your customized lightings .
4.Distributership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information.
|
Main products: COB Downlights,COB Track lights,COB spotlight |
| More than 5 Years Experience for COB,With CE/RoHS/C-TICK/ERP certificates | |
| Application: Exhibition halls,Hotel lighting,Supermarkets,Car workshops,Airport,Offices,Bus stations,Hospital lighting,Schools,Factories,etc. |
| Advantages: |
1.Light source: COB light source is made of ceramic PCB and Gosun/Cree/bridgelux/Citizen chip for your choose.
2.Rflector cup: the reflector is designed by professional optical lab company.The Emitting effect is more than 93%.
3.Driver: Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC driver is optional,with CE/ROHS/SAA/UL/TUV certificates.
4.Design: All the COB products are designed by ourself.
5.Aging: All the products aging 24 hours and turn on and off more than 500 times by relay.
Our Terms:
1. MOQ: 1PCS welcome.
2. 5days lead time for samples, and 10days for bulk.
3. Usually we accept T/T, Paypal, and Western union to pay.
4. DHL/UPS/FEDEX/TNT Express,sea and air transportation you can choose.
5. We doing neutral packing, and we can put your company's information on when you required.
6. We accept 30% and 70% payment terms when large quantity.
7. 3 year warranty, in case any quality issue in 3 years, we replace with new items without any excuse,
8. We can return samples if you don't like them at all.
Any inquiry will be highly appreciated !!!
