Specifications
1)Driver brand: Lifud2)High output: 4400-5000lm
3)Brand: Epistar cree
4)PCB: Ceramic
5)Waranty: 3 years
Specifications:
1.Output: 4400-5000lm.
2.CRI: 82.
3.Beam Angle: 30, 60.
4.Connection: 2-way, 3-way, 4-way.
5.Certificate: CE/RoHS/

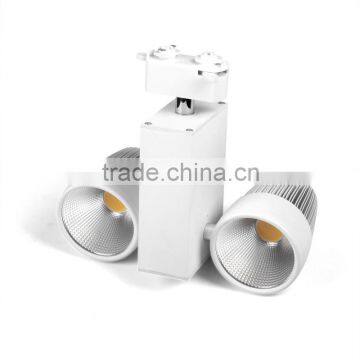

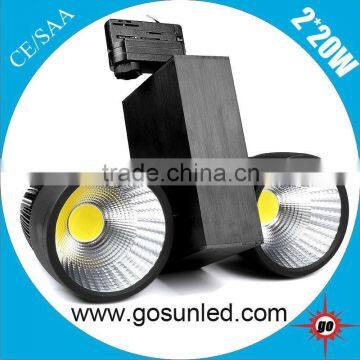

40W COB LED Track lighting
Products Features:
(1)LED Power: 2*20W.
(2)Lamp Consumption:44W.
(3)Output: 4400-5000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 82.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Track connecotr: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/
(13)Warranty: 3 years.
COB Parameter(total 2 pcs):
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Power: 20W*2
(4)Chip Qty: 300 pcs*2.
(5)CRI> 82.
(6)Voltage:26-28vDC
(7)Current: 650-700mA.
Driver Parameter total 2 pcs):
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 18-30vDC, 700mA.
(4)Power effect: 0.9-0.99.
(5)Power Efficiency: 88%
(6)Certificate:CE/TUV/UL/CQC/SAA
Dimmable: Triac or Dali is available.
Meanwell PLD-25-700 is optional.
Product Datasheet:
Part No. |
Color |
CCT |
Output |
GS-STL-COB2*20W-WW |
warm white |
2700-3500k |
4400-4600lm |
GS-STL-COB-2*20W-NW |
natural white |
4000-4500k |
4600-4800lm |
GS-STL-COB-2*20W-CW |
cool white |
5500-6500k |
4800-5000lm |

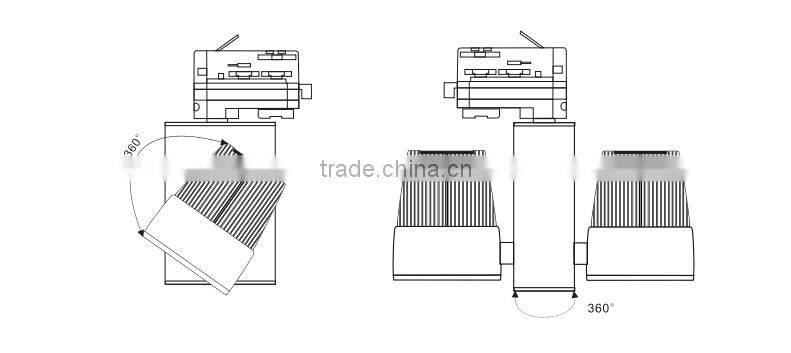

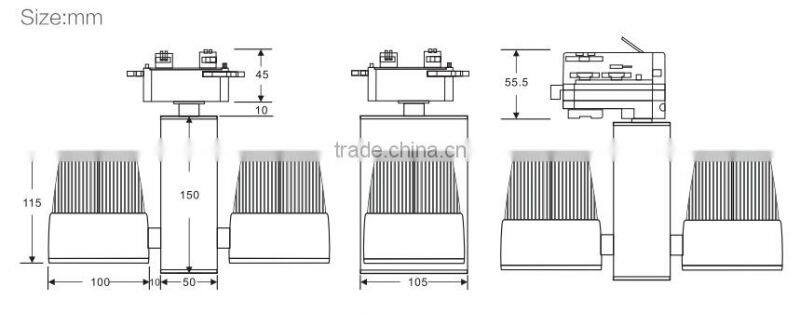

Dimension:

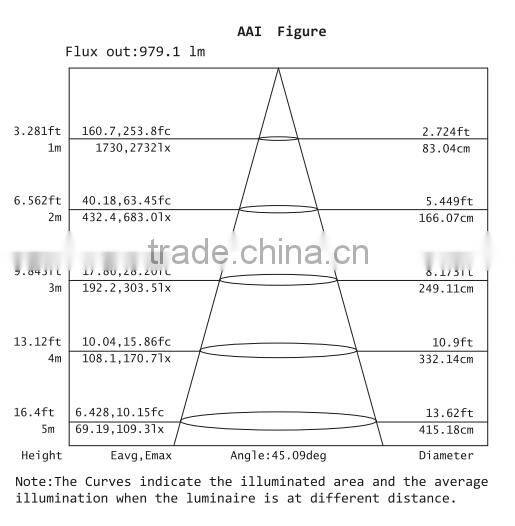

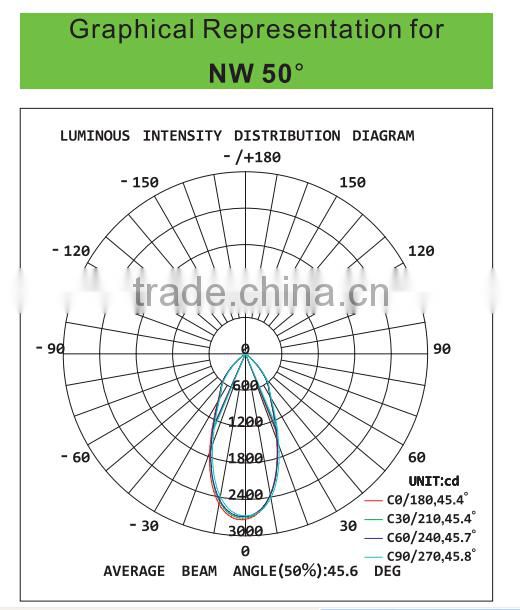

IES Test:(please contact us to get the IES file):

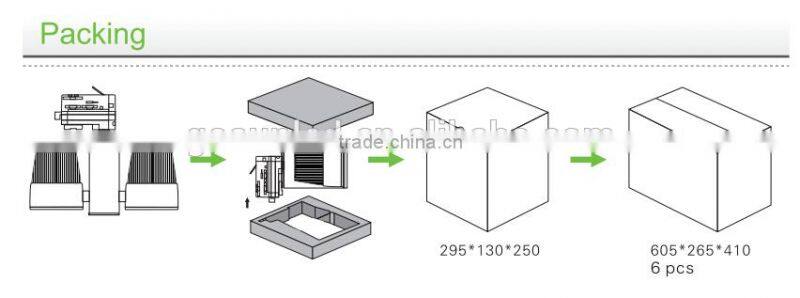

Packing:

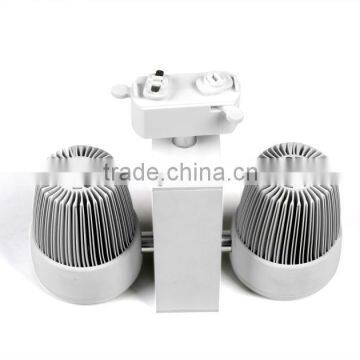

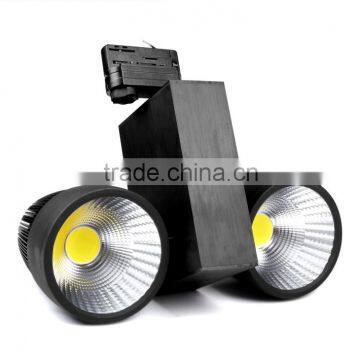

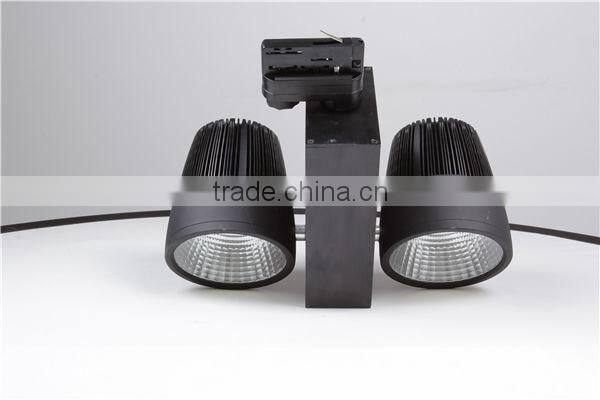

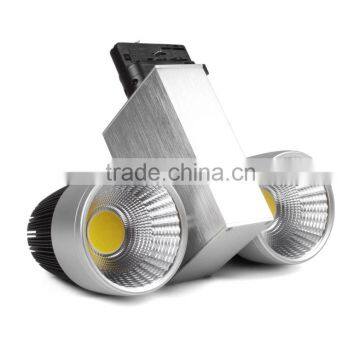

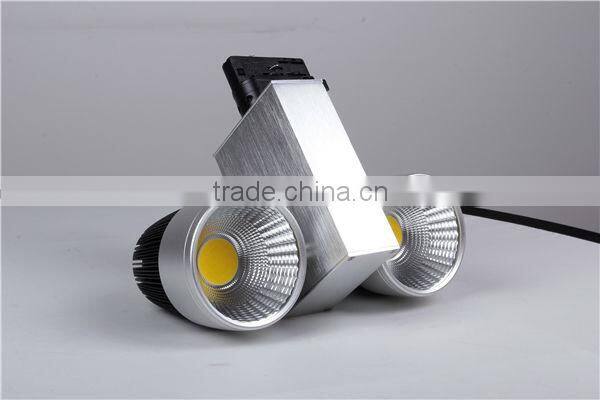

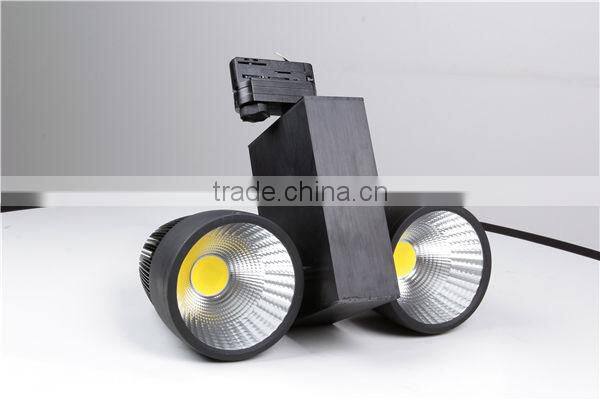

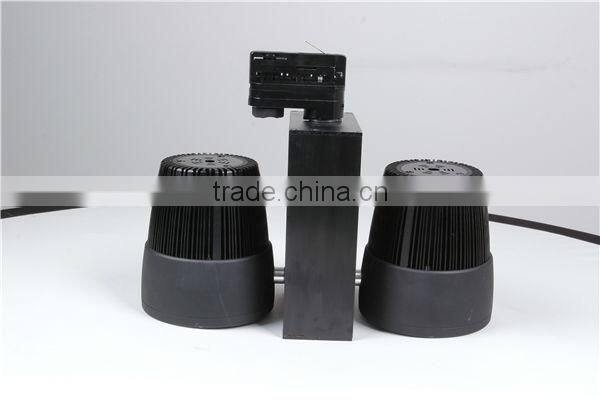

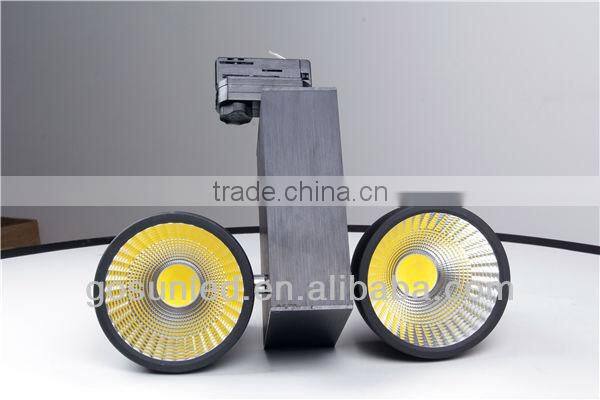

More Pictures:

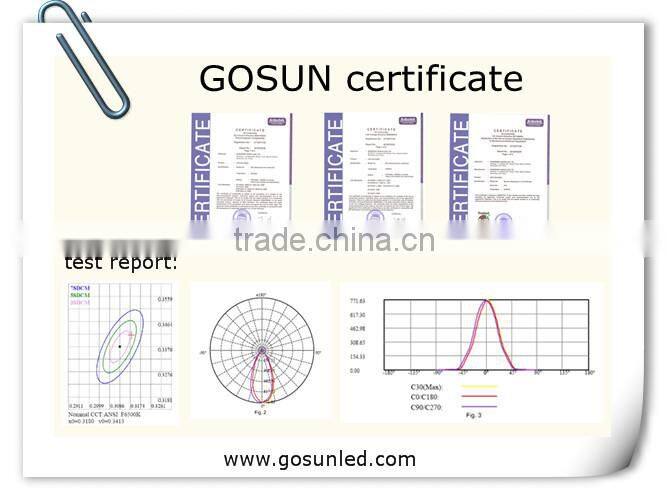

Description of company:
