CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty

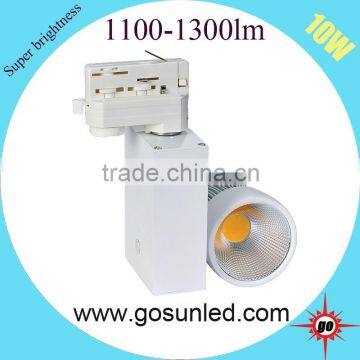

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-1

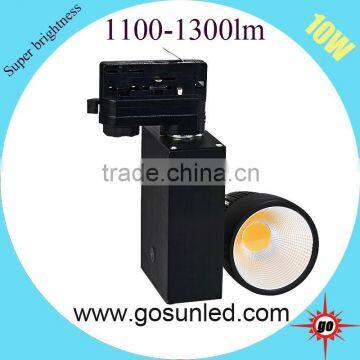

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-2

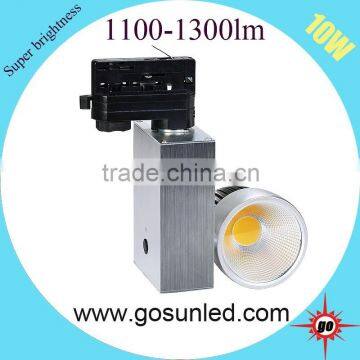

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-3

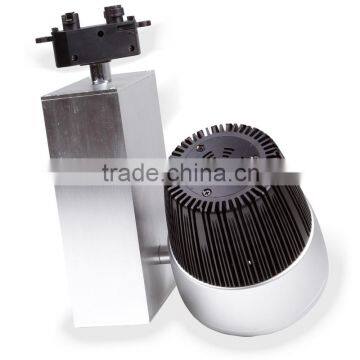

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-4

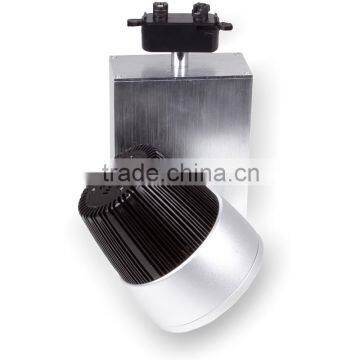

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-5

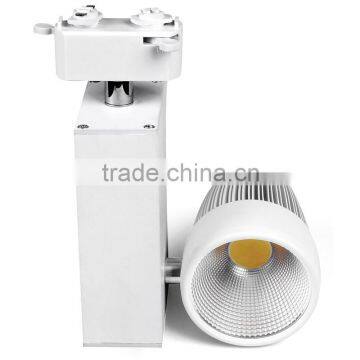

CE&Rohs Approval Cree&epistar Track Ceiling Cob Led 10w Light With 3 Years Warranty photo-6
US$ 20 - 28.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar 10*23
Warranty(Years):
3
Input Voltage(V):
100-277
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epistar 10*23
Warranty(Years) 3
Input Voltage(V) 100-277
Lamp Power(W) 12
Lamp Luminous Flux(lm) 1160-1300
Lamp Luminous Efficiency(lm/w) 120
Color Temperature(CCT) Warm White
Working Temperature(℃) -40, +55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification CE, SAA
Base Type Other, 2-way, 3-way, 4-way
Place of Origin Guangdong, China
Brand Name Gosun
Model Number GS-STL-COB-10W

Specifications

1)Driver brand: Lifud
2)High output: 1160-1300lm
3)Brand: Epistar&cree
4)PCB: Ceramic
5)Waranty: 3 year

Specifications:

1.Output:  1160-1300lm.
2.CRI: 82.
3.Beam Angle: 30, 50.
4.Connection: 2-way, 3-way, 4-way.
5.Certificate: CE/RoHS/





10W COB LED Track lighting


Products Features:
(1)LED Power: 10W.
(2)Lamp Consumption:11W.
(3)Output: 1160-1300lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/50°
(6)CRI:> 82.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Track connecotr: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/
(13)Warranty: 3 years.





COB Parameter

(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Power: 10W

(4)Chip Qty: 140 pcs*2.
(5)CRI> 82.
(6)Voltage:28-32vDC
(7)Current: 320-350mA.





Driver Parameter

(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 350mA.
(4)Power effect: 0.9-0.99.
(5)Power Efficiency: 88%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.









Product Datasheet:



Part No.

Color

CCT

Output

GS-STL-COB-10W-WW

warm white

2700-3500k

1160-1200lm

GS-STL-COB-10W-NW

natural white

4000-4500k

1200-1250lm

GS-STL-COB-10W-CW

cool white

5500-6500k

1250-1300lm

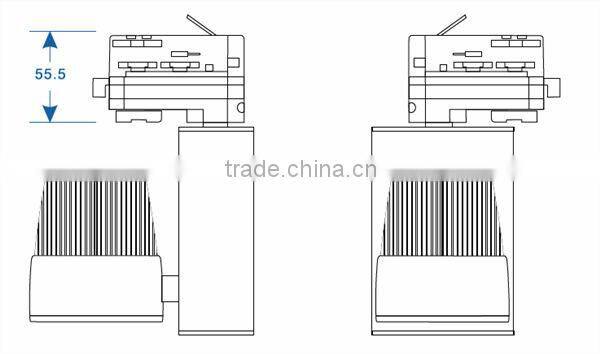

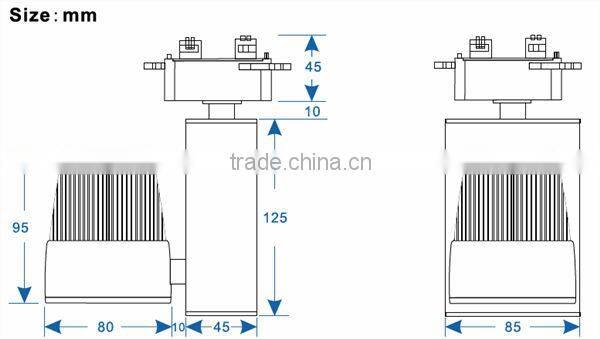

 Dimension:



 CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty

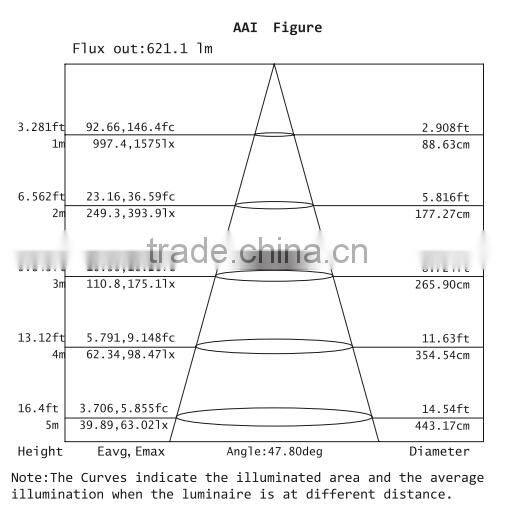

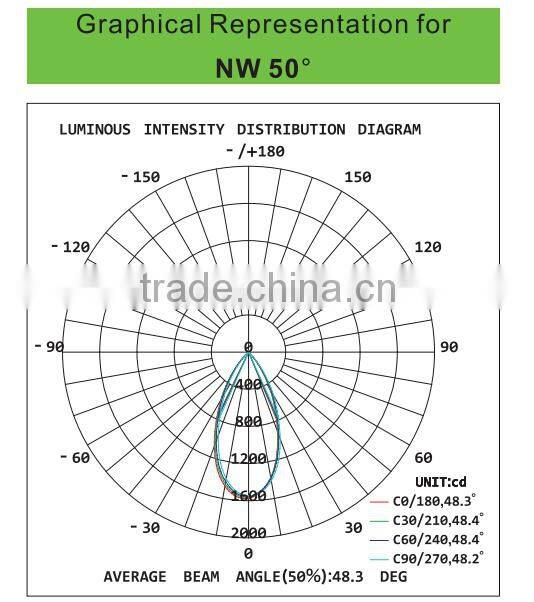

IES Test:(please contact us to get the IES file):

 CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty

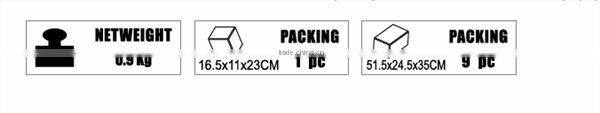

 Packing:



 CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty

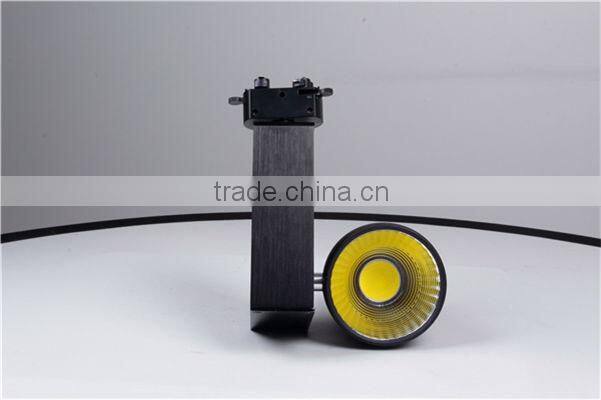

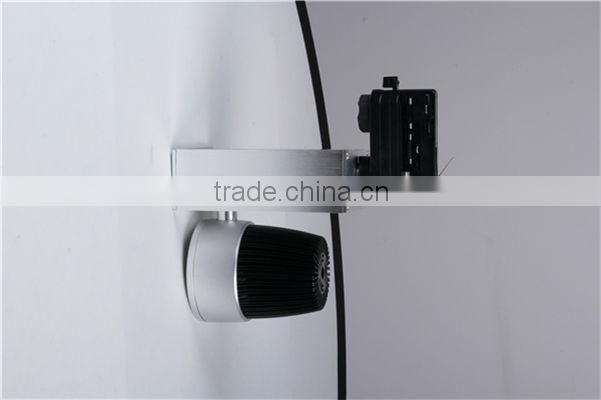

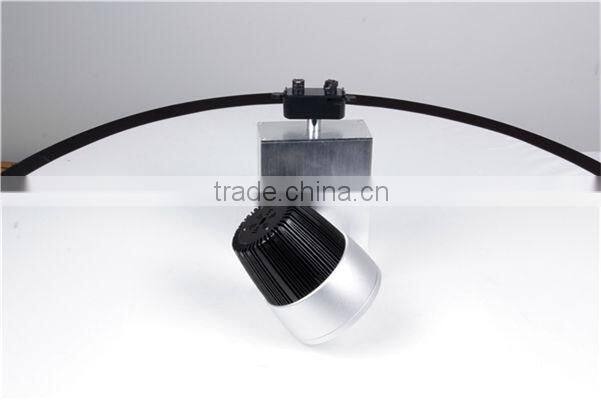

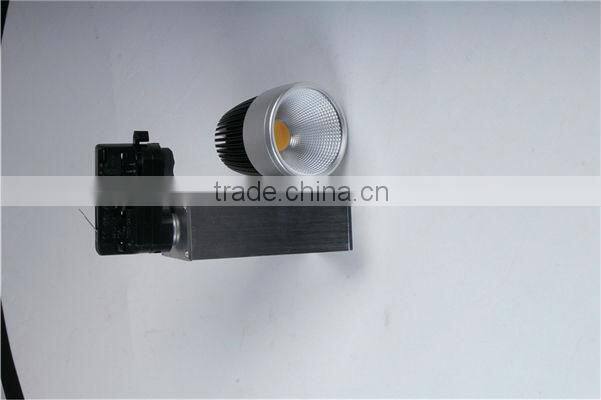

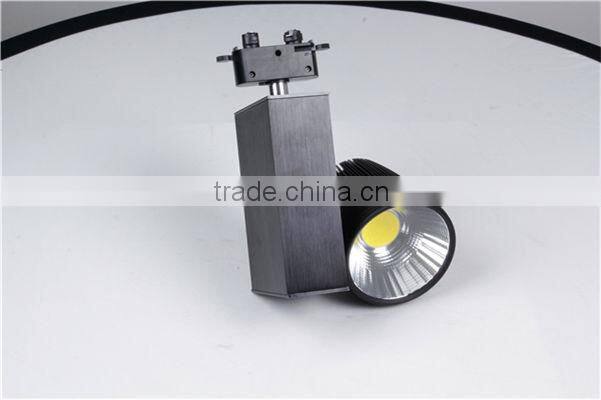

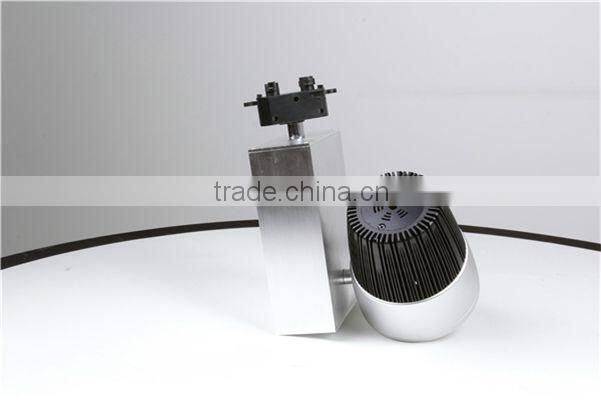

More Pictures:

CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty

CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty



Description of company:

CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warrantyCE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty



 Gosun certificates:

CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty

CE&Rohs approval Cree&epistar Track Ceiling Cob Led 10w light with 3 years warranty



GOSUN Quality Control

1. 100% testing before aging .

2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.

3. 100% testing by safe tester (with 3700V high voltage) before packing.

4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files and ERP reports.



GOSUN Services and terms

Warranty: 3years , free replacement.

Lead time: 7-12 days.

Payment: TT, Western Union, Paypal, Money Gram.

Transportation: DHL, UPS, FedEx, Air, Sea, etc.





GOSUN focus on COB LED Commercial Lighting since from 2010, and we make COB led lamps only,  we belive high quality & high efficiency based on profession.

BESUN wish our lamps would light up your life.







         WWW.GOSUNLED.COM
