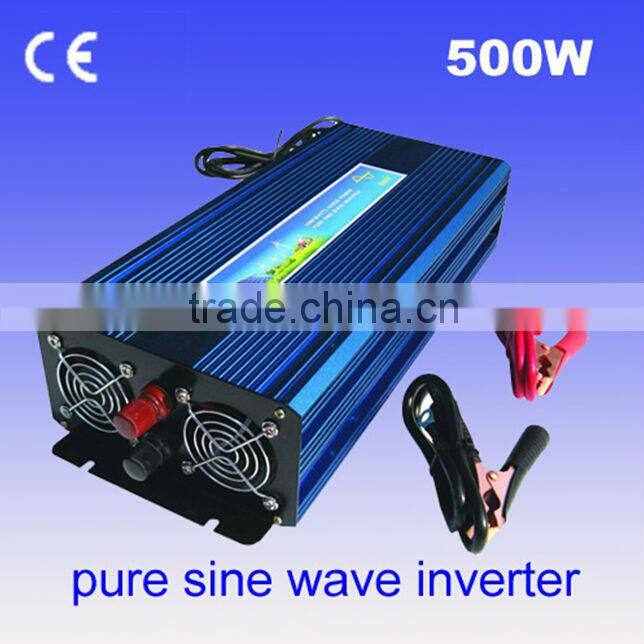

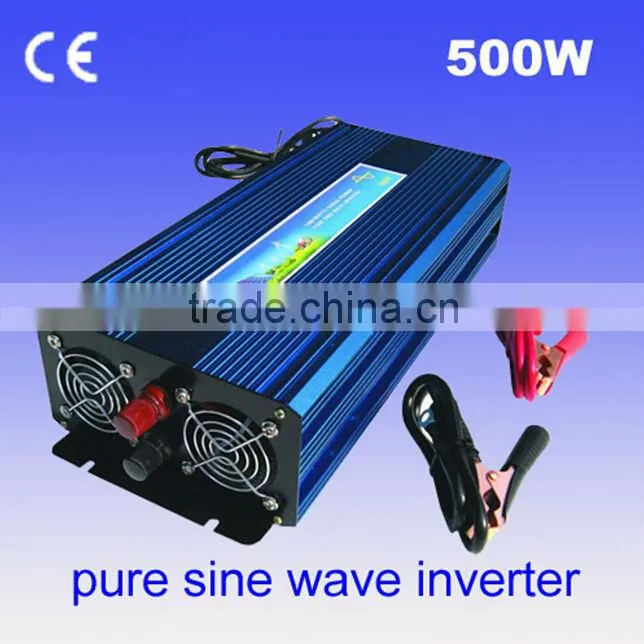

Pure sine wave 500W off grid solar charge controller inverter

PRODUCT FEATURES:

·Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

·Pure sine wave output.

·Small, light and artistic, benefited from adopting the SMD pastern technology.

·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

APPLICABLE FOR:

·Industrial intellectual control system.

·Small sized emergency power supply system.

Technical parameters: (Model: CT-500C)

Input part

DC voltage: 12V or 24V

Voltage range: 10-16VDC or 20-33VDC

No load current draw: <0.5

Efficiency: >88%

DC connection: Cables with terminal

AC voltage: 100/110/120VAC or 220/230/240VAC

Frequency: 50Hz or 60Hz

Output part

AC voltage: 100-120V or 220-240VAC

Continuous power: 500W

Surge power: 1000W

Waveform: pure sine wave

Frequency: 50hz or 60hz

AC regulation: 3%

Charge current: 10A

Charge voltage: 14V/28V

Charge mode: Equalize/Float

Protection part

Low voltage alarm: 10DC±0.5V or 20.5±1V

Low voltage shut down: 9.5DC±0.5V or 19.5±1V

Over load: shut off output

Over voltage shut down:16V or 33V

Over thermal: shut off output automatically

Environment part

Working temperature: between -10℃ and +50℃

Working humidity: 20% ~ 90% RH

Storage temperature: between -30℃ and +70℃

Package part

Machine size (mm):415*165*85

Packing size (mm): 510*230*148

Net weight (kg): 3.8

Gross weight (kg): 4.5

Packing mode: carton packaging

Other part

Start: soft start

Cooling ways: intelligent cooling fan
