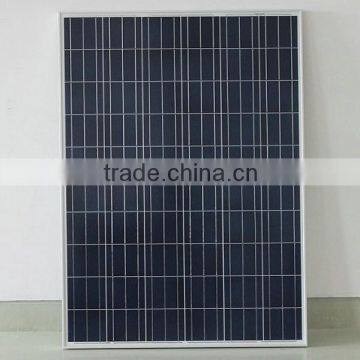

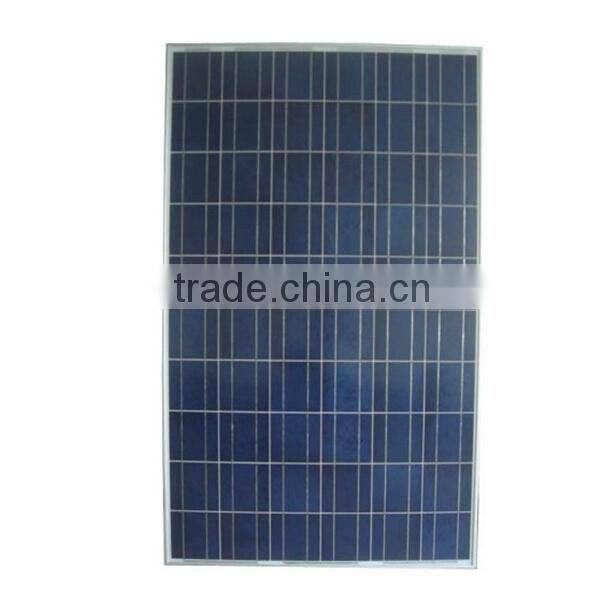

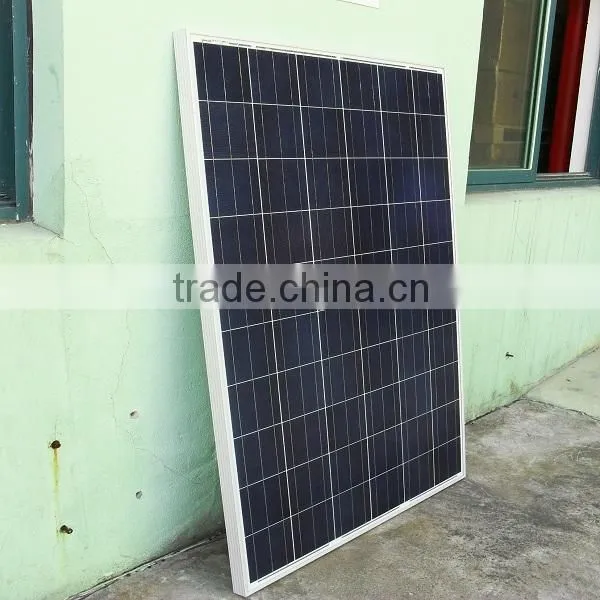

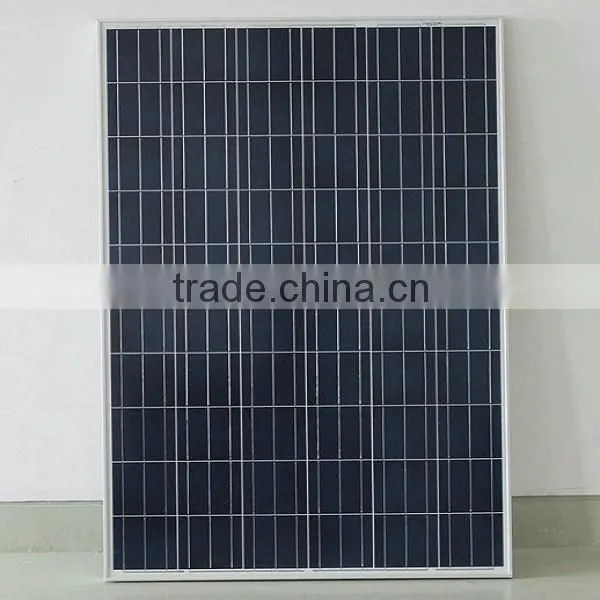

250w Solar Panel, 250wp Solar Module, for Home Solar Pannel
US$ 0.45 - 0.65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CREATOP
Model Number:
CTP-250W
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
CREATOP
Model Number
CTP-250W
Material
Polycrystalline Silicon
Size
1640x 992x 40mm
Number of Cells
72
Max. Power
250W
Specifications
250w solar panel, 250wp solar module, for home solar pannel1. Tested up to 2,400 Pa according to IEC 61215
2. CE, TUV
3.25Y
250w solar panel, 250wp solar module, for home solar pannel
Product Description
| Cells | Mechanical Data | |||
| Cell Technology | Polycrystalline | Dimension of solar module | 1640x 992x 40mm | |
| Number of cells per module | 60pcs | Weight | 18.0KGS | |
| Cell Type | 156*156mm | |||
| Electrical Data | ||||
| CTP-250(60) | ||||
| Maximum power | 250W | |||
| Open circuit voltage (V): | 36.0V | |||
| Max. power voltage (V): | 30.0V | |||
| Short circuit current (A) | 8.77A | |||
| Max. power current (A): | 8.33A | |||
| * At Standard Test Conditions(STC) Irradiance 1000Watt/M2, AM1.5 100mW/cm2 25’C | ||||
| Thermal Data | ||||
| Temperature coefficients of Voc (%) | -0.38/ ℃ | |||
| Temperature coefficients of Isc (%) | +0.1/ ℃ | |||
| Temperature coefficients of Pm (%) | -0.47/ ℃ | |||
| Temperature coefficients of Im (%) | +0.1/ ℃ | |||
| Temperature coefficients of Vm (%) | -0.38/ ℃ | |||
| Temperature Range | -40℃~+80℃ | |||
| Additional Data | ||||
| Junction box type | (TUV) | |||
| Cable type | (TUV) | |||
| Output tolerance | +/-3% | |||
| Frame material | Anodized aluminium | |||
| Front glass | 3.2mm tempered glass | |||
Maximum diameter of 25 mm with impact speed of 23m/s
10 years Full warranty on the Material and workmanship, and a performance warranty of 90% of the minimal rated power output (Pmpp +/- 3%) during the first ten (10) years and 80% during twenty-five (25) years
Our Services
Company Information
FAQ
We can offer you the solar panel from 0.1W to 320W size with high quality and competitive price.
Customized orders are welcome.
Please tell us quantity, size, voltage, mono/poly information.We will send you the quotation as soon as possible.
We also have flexible solar panels, welcome for your inquiry.
