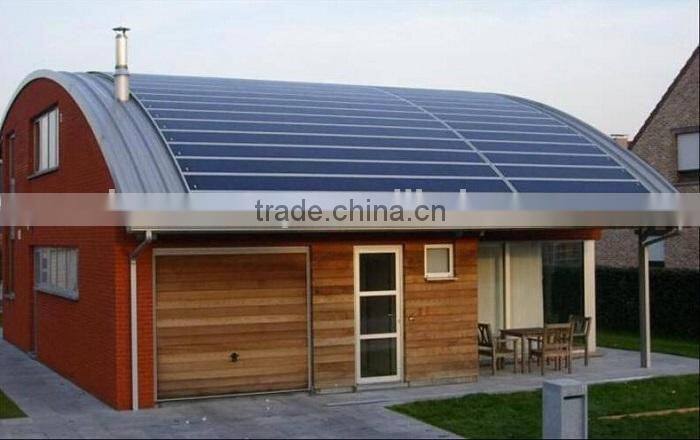

144w Peel and Stick Solar Panel

Performance Characteristics

Rated Power (Pmax): 144 Wp

Production Pmax Tolerance: ± 5 %

Construction Characteristics

Dimensions: Length: 5486 mm (216"), Width: 394 mm (15.5"), Depth: 4 mm (0.2"),

16 mm (0.6") including potted terminal housing assembly

Weight: 7.7 kg (17.0 lbs)

Output Cables: 4 mm2 (12 AWG) cable with weatherproof DC rated quick-connect terminals*

560mm (22“) length.

By-pass Diodes: Connected across every solar cell

Encapsulation: Durable ETFE high light-transmissive polymer

Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor

Cell Type: 22 triple junction amorphous silicon solar cells 356 mm x 239 mm

(14" x 9.4") connected in series

Application Criterion

• New or qualified new roof installations

• Installation by certified installers only

• Installation temperature between 10 °C - 40 °C (50 °F - 100 °F)

• Maximum roof temperature 85 °C (185 °F)

• Minimum slope: 5/8:12 (3°)

• Maximum slope 21:12 (60°)

• Membrane: Select EPDM and TPO substrates from approved manufacturers only

• Metal: PVDF Coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface (without

pencil beads or decorative stippling) and 406 mm (16“) minimum width

Electrical Specifications

STC

(Standard Test Conditions)

( 1000 W/m2, AM 1.5, 25 °C Cell Temperature)

Maximum Power (Pmax): 144 W

Voltage at Pmax (Vmp): 33.0 V

Current at Pmax (lmp): 4.36 A

Short-circuit Current (Isc): 5.3 A

Open-circuit Voltage (Voc): 46.2 V

Maximum Series Fuse Rating: 8 A

Temperature Coefficients

(at AM 1.5, 1000 W/m2 irradiance)

Temperature Coefficient (TC) of Isc: 0.001/°K(0.10%/°C)

Temperature Coefficient (TC) of Voc: -0.0038/°K (-0.38%/°C)

Temperature Coefficient (TC) of Pmax: 0.0021/°K (-0.21%/°C)

Temperature Coefficient (TC) of Imp: 0.001/°K (0.10%/°C)

Temperature Coefficient (TC) of Vmp: -0.0031/°K (-0.31%/°C)

y = yreference • [1 + TC • (T- Treference)]

Thin flim flexible solar panel products list:

1):Power:31W&33W

Size:1410*394*4mm

2):Power:68W&72W

Size:2849*394*4mm

3):Power:136W&144W

Size:5486*394*4mm

Please feel free to contact us for more details.
