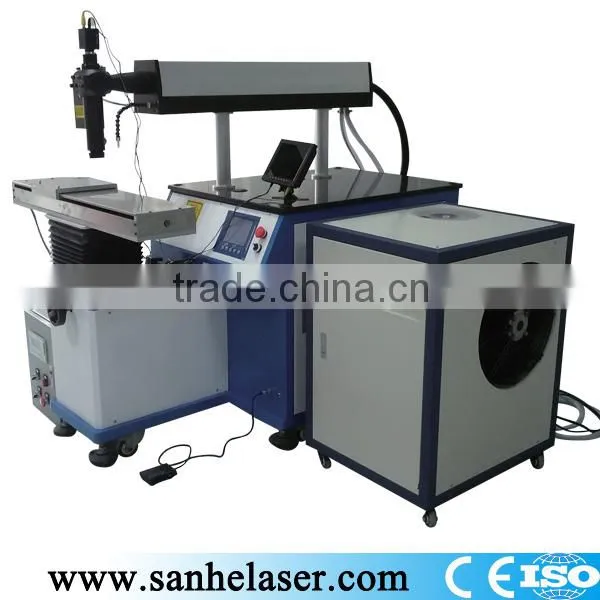

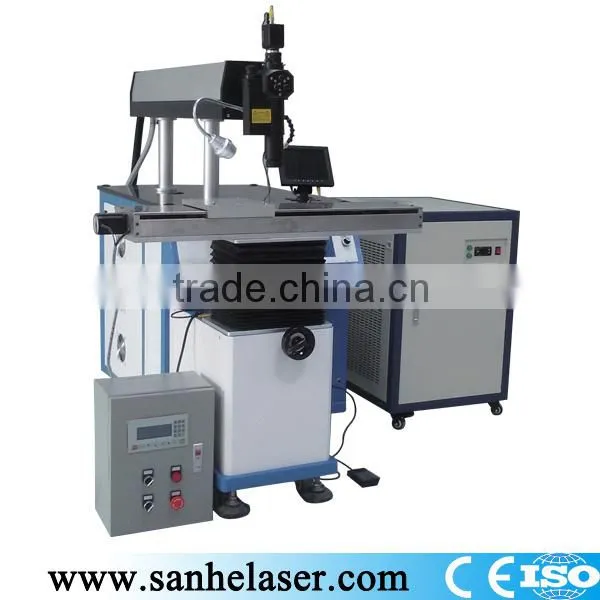

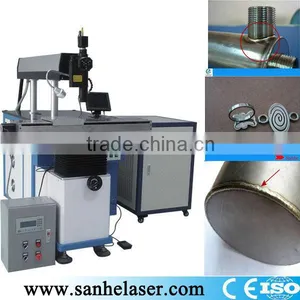

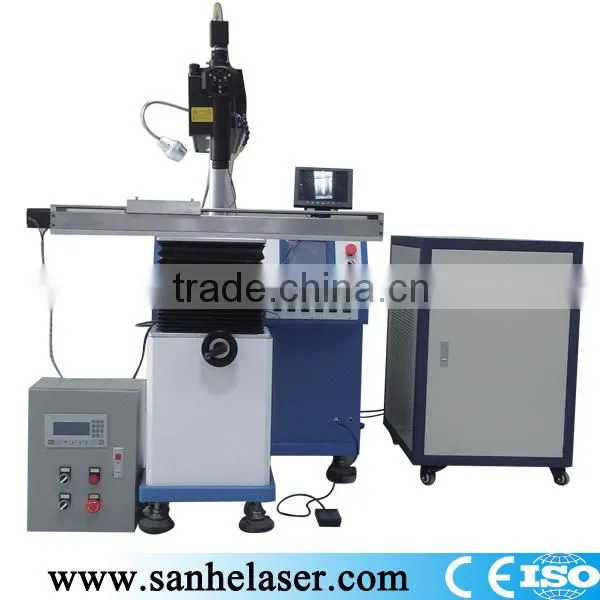

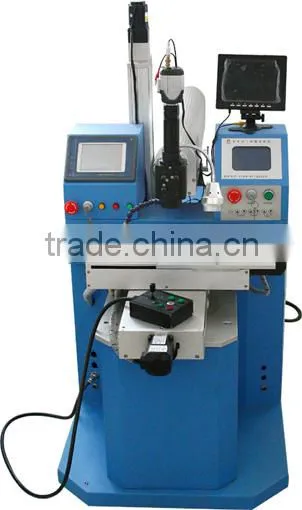

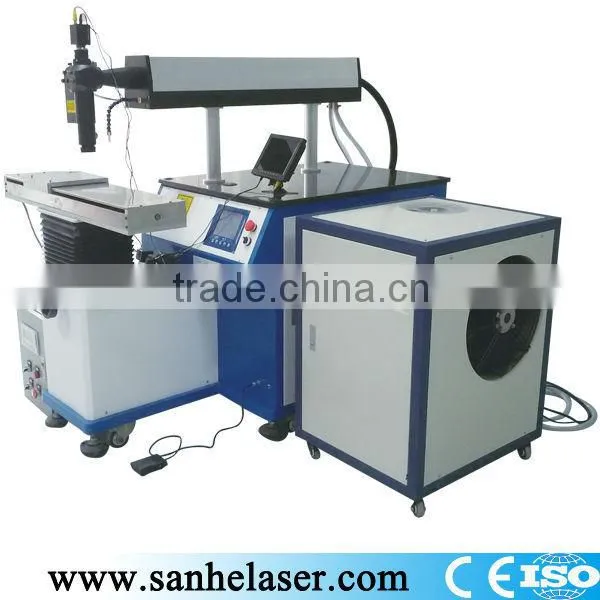

3HE 300w small parts laser welding machine,eastern laser welding machine,stainless steel laser welding machine

wood box

Specifications

small parts laser welding machine
New international cavity design
System design
Automation design
laser power:300w/400w

3HE  300w  small parts laser welding machine,eastern laser welding machine, stainless steel laser welding machine





Main advantages:

New international cavity design

 United Kingdom technology of combined cavity design, has higher electro-optical conversion efficiency;Full cavity design for partial cooling and cooling treatment, lasers last longer;Typical maintenance design, changing lights from dimming, routine maintenance easier.

System design

Split design, modular, suitable for a variety of industry applications portfolio;Humanized design, LCD displays, set button operation, easy to operate;Provides industry-specific solutions, and offers a wide variety of mature private sector grip and control, more convenient to use;Can be combined with production-and better adaptability;Can be combined with air tight boxes to meet the special product welding requirements;Meet the international laser safety standard and high-voltage electrical safety standards.

Automation design

1,   CNC motion system

CNC2000 numerical control system software based on Windows, using DSP technology development, hardware with PCI interface, 4-axis, the system has complete features:Program verification feature,MDI feature,Absolute incremental programming(G90,G91),Imperial, metric, the number of pulses programming(G20,G21,G22),Mirroring features(G24,G25),Zoom functions(G50,G51),Automatic, jogging, walking, hand, zero return function,Quickly locate(G00),Linear interpolation(G01),Circular interpolation(G02,G03),Pause(G04),Thread function(G33),Sets/returns the electrical origin(G29,G30),Back backlash compensation, beam radius compensation(G40,G41,G42),Rotation feature(G68,G69),Subroutine,Static/dynamic simulation,Automatic deceleration control,Maximum no-load step frequency:200000Hz,AutoCAD drawing file conversion (PLT, DXF files).

2, Numerical control laser power supply

LCD display power is controlled by single-chip digital power supply,Users of multiple laser waveform and parameter programming through keyboard, can repeat work for the lamp operating current, frequency, pulse width and spot diameter to implement intelligent control,With stable work, control is better, the characteristics of small volume, easy to operate, easy to maintain.

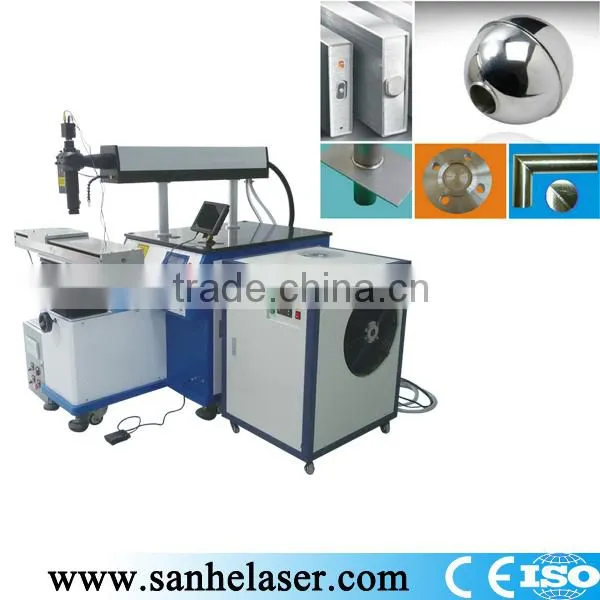

Range of application:

Range of application:Range of application;Hydraulic tappet sealed welding;Filter seal welded;Spark plug welds;Valve push rod welding;Bumper air bag detonators sealed welding;Crankshaft or cylinder heat treatment

Electronics industry:Cell phone batteries, battery shell seal welded;Solid state relay sealing;Connector data cable welding

Hardware industry:Tools, accessories, tableware, lighting

Special types of trades:Special types of trades;Navigation sensor seal welding;Weapons welded



Technical parameters:











Model	3HE-300W	3HE-400W
Host system dimensions	1550X650X1200MM	1550X650X1200MM
Cooling system size	820X580X1050MM	820X580X1050MM
Machine power consumption	10KW	15KW
Electrical requirement	220V/50Hz/60A	380V/50Hz/60A
Aiming and positioning	CCD and red light	CCD and red light
Travel of table	300X250X200MM	300X250X200MM
Laser material	ND:YAG	ND:YAG
Maximum laser power	300W	400W
Laser wavelength	1064nm	1064nm
Smallest spot diameter	0.2mm	0.2mm
Weld minimum weld pool	0.1mm	0.1mm
Welding depth	1.5mm	2.5mm
Pulse width	0.3ms-20ms	0.3ms-20ms
Pulse frequency	1-100Hz	1-100Hz
Control system	PC or PLC	PC or PLC
