Specifications
Fiber laser welding machineGood welding quality
Perfect light spots
Precision positioning
Low noise

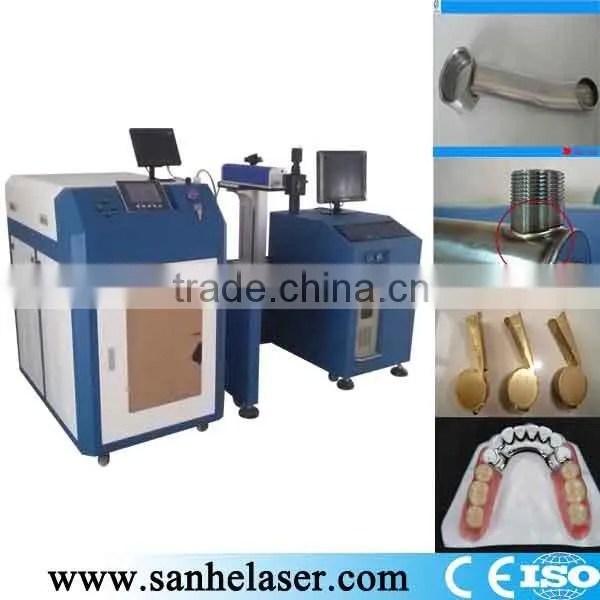

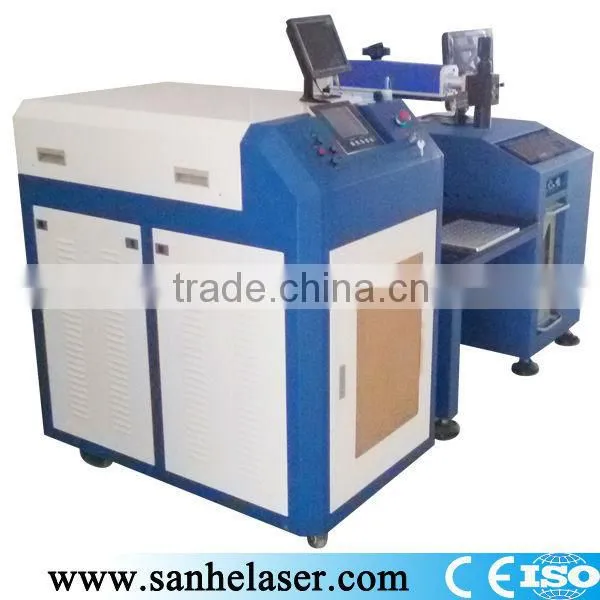

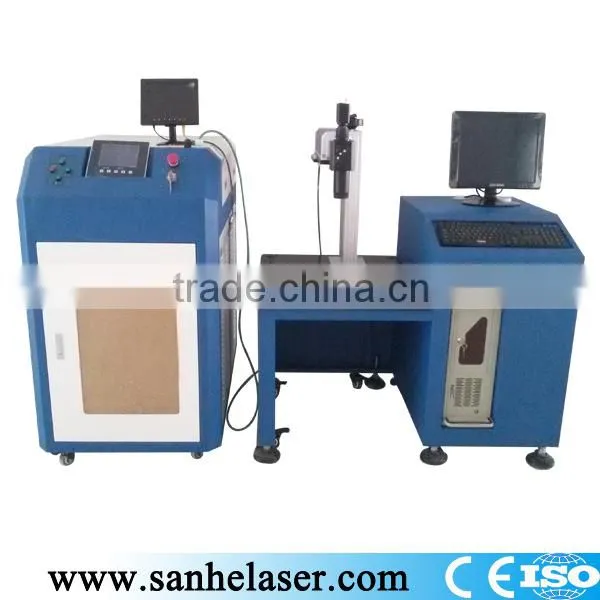

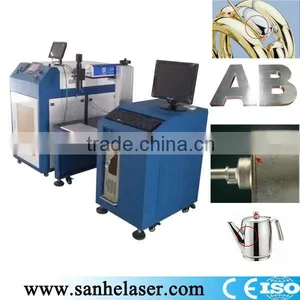

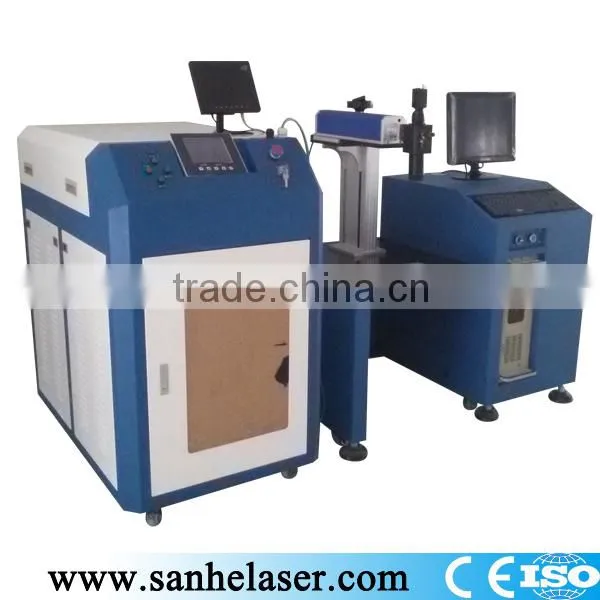

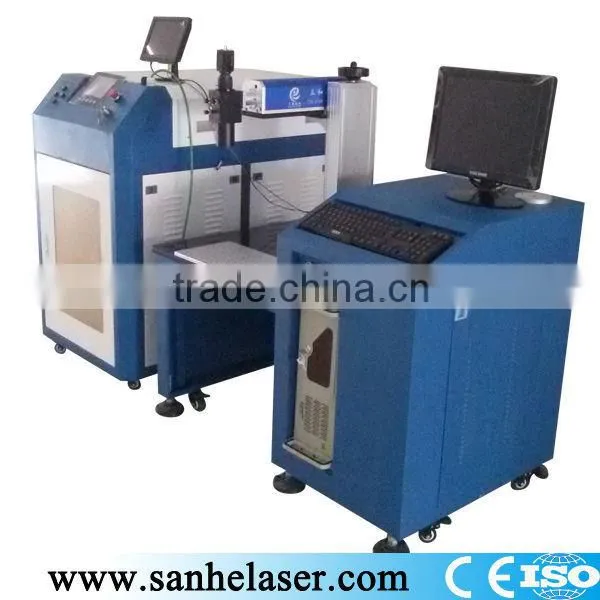

3HE High power Fiber laser automatic welding machine , high frequency welding machine

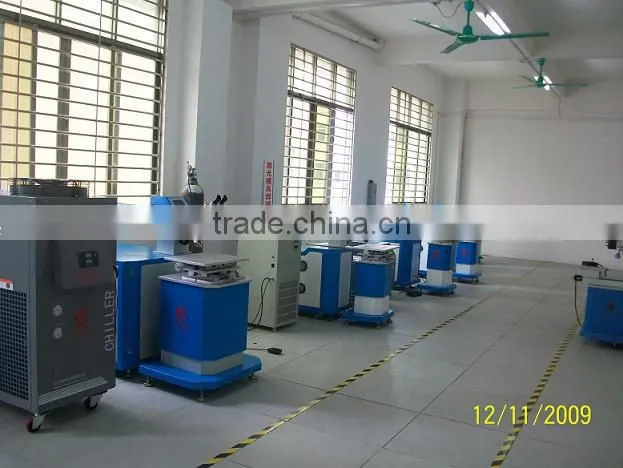

Dongguan sanhe laser technology limited company is a company engaged in the development, production and sales of well-paid technology enterprise, is located in Dongcheng, Dongguan city industrial zone, with a modern production plant, the strength, talent is sufficient, have a professional research and development and production team.Company since its inception, the introduction of advanced laser technology and convergence with international laser industry solutions, and well-known institutions and optoelectronic Research Institute maintains a long-term good relations of cooperation, in the field of energy development and application of new laser bold in innovation, the pursuit of excellence.
Sanhe laser company have launched a series of large power laser cutting series, the laser marker series, industrial laser equipment, such as laser welding, the company relies on excellent quality and leading-edge technology, to meet the requirements of different lasers use area.Equipments are exported to the United States, Korea, India, Viet Nam, Japan, Malaysia and many other countries.
Brief introduction
After fiber optic transmission, the optical fiber transmission laser welding machine, through a collimating lens collimator for parallel light, and then by focusing on the work of carrying out welding laser welding machine.
Model characteristics
- Compact laser output components for large mold in injection machine, forklift, automotive welding
- Using state of the art real time laser power feedback control system to avoid the fluctuation, causes, such as fluctuations in the water temperature, Xenon lamp aging effects on laser energy, makes the solder uniform depth
- Can be time-and-energy, suitable for many different applications, can process multiple stations simultaneously
- For long distances, harsh environments, such as high temperatures, dust, vibration welding
- The optical fiber transmission laser beam quality, spot light, energy distribution
Range of application
Suitable for large welded, injection molding, die-casting mold patches, micro-electronic components, precision parts, high-grade digital components, fiber optic connectors, medical equipment and welding
Technical parameters
Model |
3HE-150F |
3HE-300F |
3HE-400F |
Laser wavelength |
1064nm |
1064nm |
1064nm |
Cavity reflectors |
United Kingdom ceramic optical condenser |
||
Max laser power |
120W |
300W |
400W |
Pulse width |
0.1-20MS |
0.1-20MS |
0.1-20MS |
Pulse frequency |
0.1-30Hz |
0.1-200Hz |
0.1-200Hz |
Spot adjustment range |
0.3-2MM |
0.3-2MM |
0.3-2MM |
Aiming and positioning |
Cross hair and the red light(Optional camera system) |
||
Mechanism of cold water cooled power |
1.5P |
3P |
4P |
Machine power consumption |
6KWSingle-phase/three-phase |
12KWthree-phase |
12KWthree-phase |
Electrical requirement |
three-phase 380V±5%/50Hz/20A |
three-phase 380V±5%/50Hz/40A |
three-phase 380V±5%/50Hz/40A |
Host dimensions |
850X600X1280MM |
850X600X1280MM |
850X600X1280MM |
Cold water machine dimensions |
400X650X700MM |
380X740X740MM |
380X740X740MM |

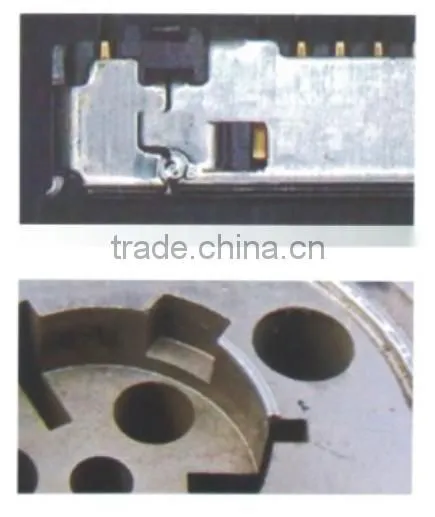

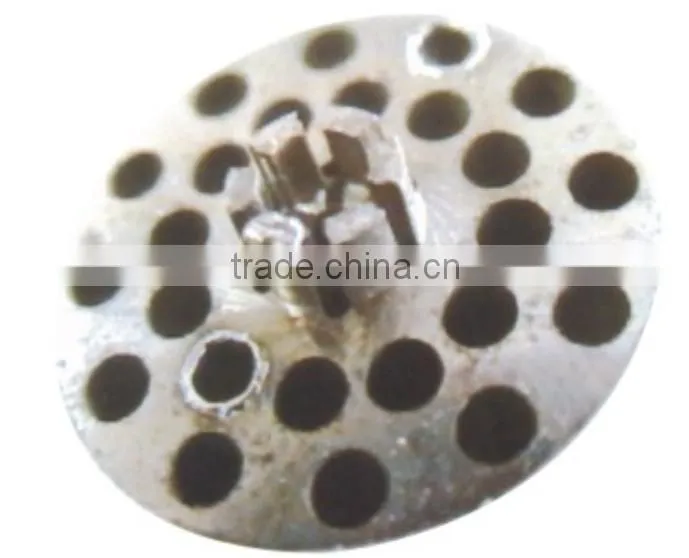

Welding samples:
