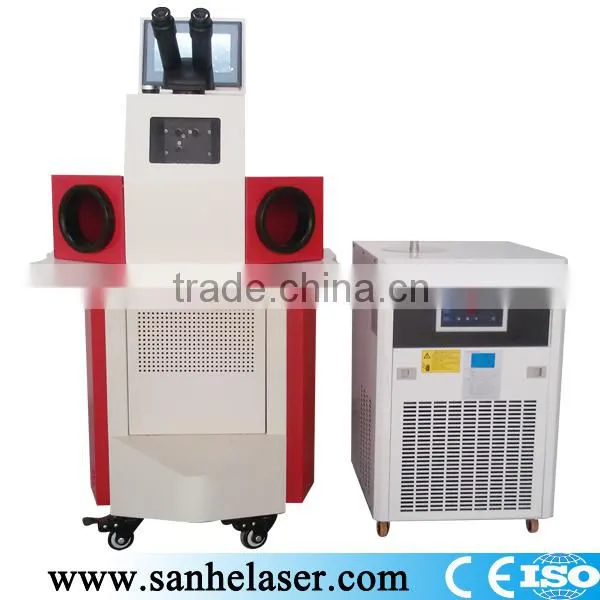

Factory direct 3HE-200W laser welding machine for jewelry,welding machine for glasses,portable laser welding machine

wood box

Specifications

laser welding machine for jewelry
stable performance
10x microscope magnification
operation convenient
easy to clean up

 3HE -200W   laser welding machine for jewelry,welding machine for glasses, portable laser welding machine







Brief introduction

Laser spot welding using laser deposition welding, laser-welding technology for high thermal energy and focus point, internal diffusion heat by conduction to the surface by controlling the laser pulse width, energy, peak power and repetition rate, and other parameters, make melt, forming a specific pool.Because of its unique advantages, widely used in the jewelry processing and micro and small parts in the welding field.

Model characteristics

1.United Kingdom imports ceramic condenser cavity, corrosion resistance, high temperature resistance and Chamber life (8-10), Xenon lamp life of more than 8 million times

2.Uses the world's most advanced automated blackout systems, eliminating time on eye irritation

3.Parameter adjustment design of the double sided Board, increase adjustment rocker in a closed cavity, operation more convenient

4 .Professional work within the cavity design, easy to clean up and recycling of precious metals

5.10X microscope magnification, cross hair indicates, and adopt high-speed liquid crystal light valve automatic blackout blinds. Output shielding gas and laser synchronization to ensure that solder joint appearance, the solder will not oxidizing discoloration

6.High definition CCD observation system to ensure spot effect in appearance

7.With 24 hours of continuous operation, stable performance of the whole machine, 10,000-hour maintenance

8.With 24 hours of continuous operation, stable performance of the whole machine, 10,000-hour maintenance

9.Energy ,spot size, pulse width, frequency, and so on, can be adjusted on a larger scale in order to achieve a variety of effects of welding, suitable for welding of various metal materials. Parameters are adjusted by the control rods in an enclosure, simple and efficient.

Range of application

Commonly used in gold and silver jewelry, golf heads, fill holes, Chlamydia trachomatis in spot welding, welding of electronic components inlaid ornament, stainless steel, titanium alloys, welding, repair of precision casting products, widely used in jewelry, electronics, watches, and other industries



Our strengths and improvement



Modern production line, production management and quality monitoring of professional standards.



Professional production team and efficient after-sale service system;



10X microscope system based on pioneered the use of high definition CCD observation system to ensure spot effect in appearance;



Screen 7 inch LED screen, able to switch in Chinese and English, with the international market.



Technical parameters



Model	3HE-200W
Laser power	200w
Laser wavelength	1064nm
Single pulse maximum energy	120J
Laser types	Nd:YAG
Laser welding depth	0.1-3.3mm
Pulse width	0.3-20ms
Combo laser welding frequency	0-50Hz
Spot size adjustable	0.2-3mm
Machine power consumption	≤6KW
Electrical requirement	220V±10%/50Hz
Cooling method	Water cooling
Control system	Industrial control computer
Observing systems	10X microscope or high definition CCD
Protective gas	Argon gas
Consumables	Xenon lamp, filter, protective lenses, argon gas, water, electricity
Temperature	55°F(13°C)-82°F(28°C)
Humidity	5%-75%no frost





Welding samples:
