3 Phase 15KW Diesel Generator

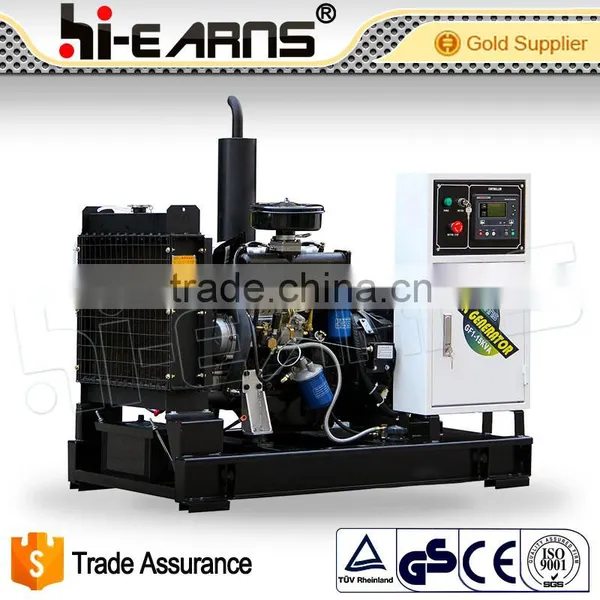

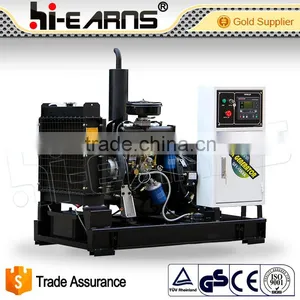

3 Phase 15KW Diesel Generator photo-1

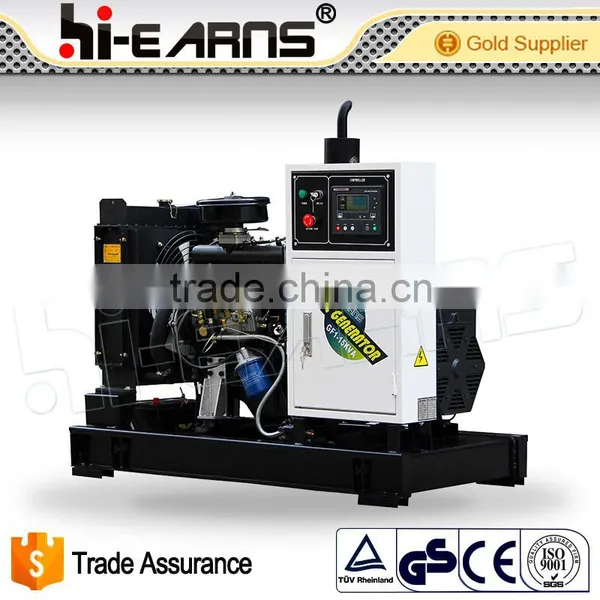

3 Phase 15KW Diesel Generator photo-2
3 Phase 15KW Diesel Generator photo-3
3 Phase 15KW Diesel Generator photo-4
US$ 2,000 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF1-15KW
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Hi-earns
Model Number GF1-15KW
Output Type AC Three Phase
Speed 1500rpm/1800rpm
Frequency 50HZ/60HZ
Rated Power 15KW
Rated Voltage 400V/230V
Rated Current 27.06

open diesel generator set 15KW


Model GF2-19KVA
Standby power(50HZ) 17KW / 21KVA
Prime power(50HZ) 15KW / 19KVA
Voltage(V) 220/380V
Phase 3
P.F(COSφ)       0.8
Standby Amps(A)    28
Engine type Weifang Huadong Engine K4100D, 4-stroke,water-cooled,direct line, turbo type
Rated RPM(r/min)                                                                    1500rpm
Cooling system

Forced water-cooled

Fuel consumption(g/kw.h)

≤ 258

Commpression Ratio

19:01

Bore x Stroke(mm) 95 x 115
Displacement(L) 3.26
Start Method 19.0:1
Rated RPM Electric start
Alternator Data
Power Factor 0.8 Lag
Insulation Class H
Lubricating System Pressure,Split,Complex
Exhaust Air Temperature ≤ 470
Altitude ≤ 1000m
Environment Temperature 40
Connecting Type 3 Phase and 4 Wires, "Y" type connecting
Ignite sequence 1-3-4-2
Intake Type Natually-Aspirated
Rated Speed Regulation % ≤±1%
Phase 3
Overall Size 2.1x0.85x1.1(m)
Weight 740kg




Advantages


Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE,ISO,GS,SONCAP etc.

6.Our logo or OEM

3 phase 15KW diesel generator



IQC

 Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.

3 phase 15KW diesel generator

3 phase 15KW diesel generator



Automatic Workshop

 Modern workshops have advanced production lines and professional knowledge of assembly.

 Flow card to record each details carefully.

3 phase 15KW diesel generator3 phase 15KW diesel generator3 phase 15KW diesel generator3 phase 15KW diesel generator



Packaging & Shipping

 Strong packaging to ensure safty during transportation.

 7 layer corrugated carton or wooden box packaging for products.

3 phase 15KW diesel generator3 phase 15KW diesel generator3 phase 15KW diesel generator



Company Information

We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.

3 phase 15KW diesel generator3 phase 15KW diesel generator3 phase 15KW diesel generator3 phase 15KW diesel generator



Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
