Super Silent 12KW/15KVA Diesel Generator Price Quality Choice

FOB Price

US$ 2,800 - 3,100 / Set

2 Sets(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Hiearns or OEM
Model Number	GF2-15KVA	Output Type	AC Three Phase
Speed	1500rpm/1800rpm	Frequency	50/60HZ
Rated Power	12KW	Rated Voltage	220/380, 230/400V
Rated Current	23A

Product Description

12KW Water-cooled diesel generator 15KVA Super silent diesel generator

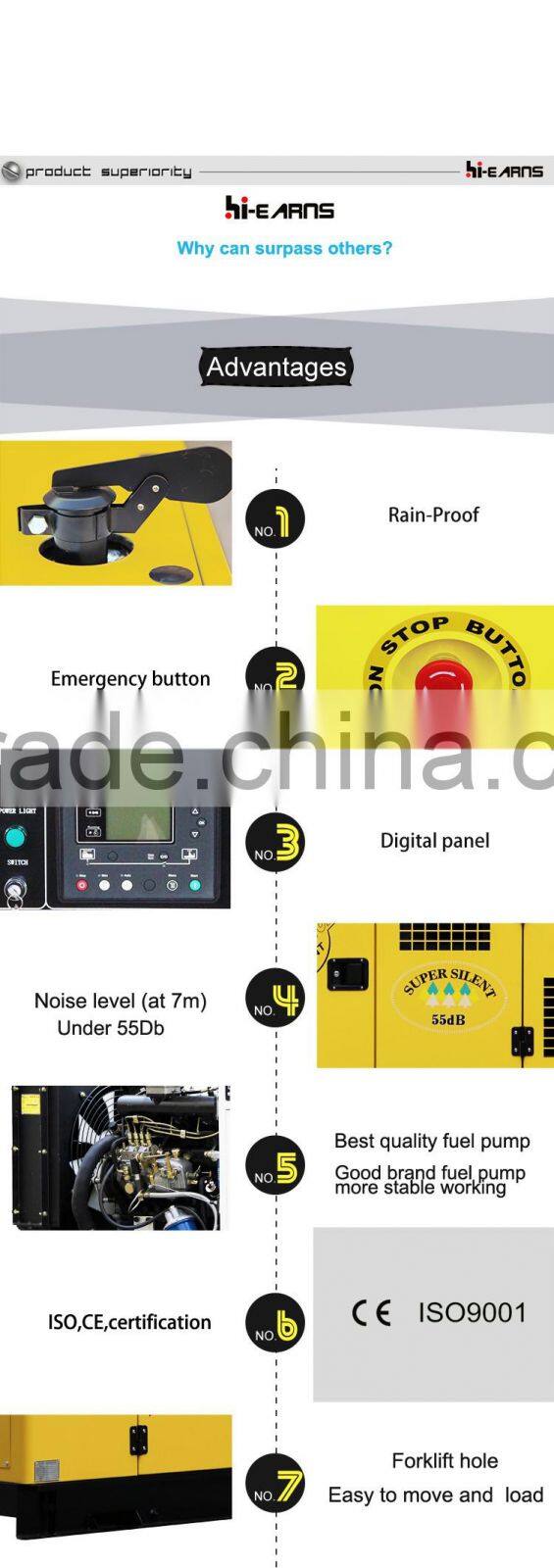

1.Super silent canopy ensure the noise level under 55DB;
2.low fuel consumption,big fuel tank
3.With Chinese famous Quanchai brand N485D diesel engine
4.Different color are optional

Standby Power	12.8 KW / 16KVA
Prime Power	12KW / 15KVA
Model	N485D
Cylinder Number	4
Bore×Stroke(mm)	85×95
Displacement(L)	2.156
Rated RPM(r/min)	1500
Rated Speed Regulation %	≤5
Rated Fuel Consumption(g/kW·h)	≤245
Cylinder Head Type	Dry type
Diesel Generator Type	Direct line,Water-cooled,Four stroke
Intake Type	Natually-Aspirated
Combustion Chamber Type	Direct Injection
Lubricating System	Pressure,Split,Complex
Flywheel Cover Specification	SAE4#
Flywheel Specification	SAE7.5″
Exhaust Fan Diameter(mm)	φ410
Flywheel Teeth Number	109
Add Oil Capacity	5L
Voltage (V)	380/220
Frequency (HZ)	50
Insulation Class	S
Rated Current (A)	22.7
Phase	3
Altitude	≤1000m
Power Factor	0.8
Voltage Regulation,Stead State	≤±1%
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
AVR	SX460
Environment Temperature (°c)	40
Exciter Type	Brushless,self-exciting
Protection Grade	IP23
Open Type's Dimension Length × Width × Height (mm)	1550×750×1000
Silent Type's Dimension Length × Width × Height (mm)	1800×850×1100
Open Type's Net Weight(Kg)	608
Silent Type's Net Weight(Kg)	658
Open Type's 20FT Loading Quantity	14PCS
Silent Type's 20FT Loading Quantity	12PCS

Automatic workshop

♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;

♦ Flow card ro record each details carefully;
