Laser Cutting Machine
Product application:
SMT steel mesh laser cutting machine :
SMT steel mesh cutting machines can used for various types of specifications steel mesh cutting, precision stainless steel cutting .
FPC laser cutting machine:
1:Cutting a variety of flexible circuit board materials and mulch, clean and free of carbon, including common manufacturing cricuit board materials and component parts manufacturing materials.
2:Can cut a variety of substrate materials, such as silicon wafers, ceramics, glass etc.
3:Precision etching various functional films.

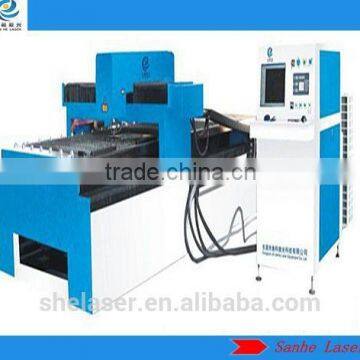

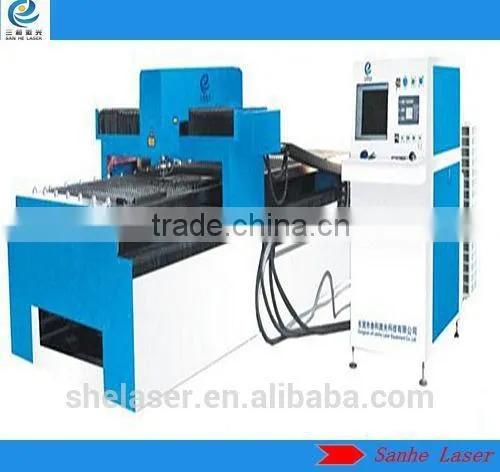

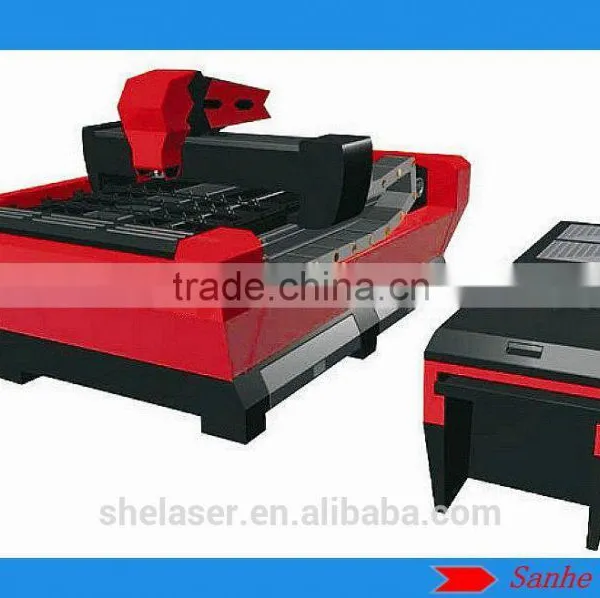

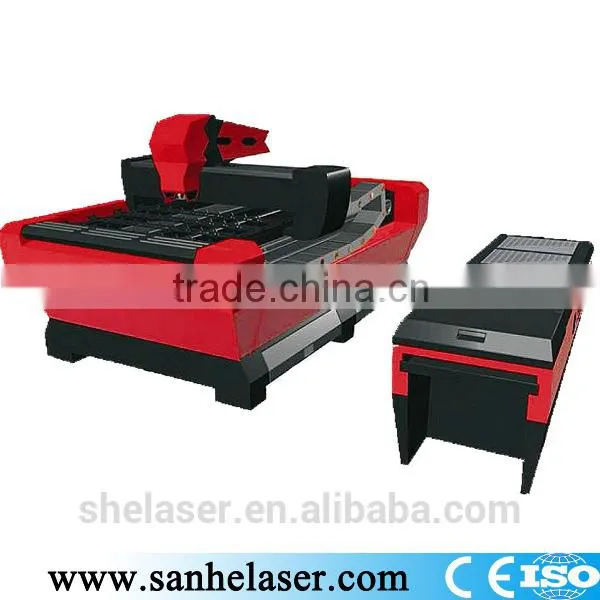

Fiber laser cutting machine:
Can cutting metai sheet, pipe by no-contact cutting type. particularly suitable for stainless steel, iron, diamond and other materials. for hard maching of brittle alloy has a very good effect. laser cutting technology in sheet metal industry can instead of punch and thread cutting. suitable for cabinet chassis, hardware, adverstising, elevator manufacturing, household appliances, automobile manufacturing aerospace,engineering, machinery and other industries.
Product features:
SMT steel mesh laser cutting machine:
This is a high-end high-precision SMT laser stencil cutting machine ,adopted imported long oling technology of fiber laser, with high beam quality and light long life, high photoelectric conversion efficiency.No need changing the lamp and maintenance costs, using air coolingtechnology, significant savings in electricity consumption. The minimum focal spot diameterto 0.016mm, cutting hole wall smooth. Cutting process using a small quantity of industrial oxygen-aided cut,had no effect on the environment.
FPC laser cutting machine:
- High performance UV laser: uses the high beam quality, high peak power, short pulse width and high pulse stability imported 10W/355nm, all-solid-state ultraviolet laser , ensure quality and stability
- Optimal design of optical systems: super high beam quality, reducing power consumption, reducing the focal spot size to ensure that UV laser machining accuracy
- Using precision two-dimensional stage and full closed loop CNC system: ensure positioning and repeat accuracy
- Using position sensor and CCD imaging location technology: laser beam datum points and Datum point high precision of machine tools overlap
- Use highly rigid machine tool cushion blocks design, vibration reduction and natural granite base,start/stop and speed up the process of the Elimination of worktable inertial vibration
Fiber laser cutting machine:
1:High laser cutting speed, small deformation and high precision.
2:CNC numerical control system based on optimization algorithm, design of opto-mechatronics, radically cutting performance.
3:Powerful software, simple operation, automatic programming supports dxf, plt and other graphic formats, commpatibility strong.
4:Optional automatic feeding machine, consisting of sheet metal cutting flexible manufacturing system.
Technical parameters:
SMT steel mesh laser cutting machine:
Model |
3HE-GW100W |
laser power |
100W |
laser wavelength |
1070nm |
Effective cutting area |
600mmx600mm |
Maximum stroke |
660mmx660mm |
Maximum clamping |
700mmx800mm |
Normal cutting thickness |
0.3mm-1.0mm |
Positioning accuracy |
±2um |
Repeat positioning accuracy |
±1um |
Input power |
Single-phase 220V |
Power consumption |
>2KW |
Auxiliary gases |
Industrial oxygen |
Weight |
2 Ton |
Dimension |
1450mmx1450mmx1450mm |
FPC laser cutting machine:
Model |
3HE-UV10W |
Host size |
1770mm*1360mm*1600mm |
Weight |
2300 KG |
Laser |
(all-solid-state)UV,355nm(Imported from USA)10W |
Scanning system |
CTI(Imported from USA) |
Movement system |
Full-closed loop AC linear motor system |
Machine precision |
±20μm |
Position precision |
±2μm |
Repeat precision |
±2μm |
Cutting area |
620mm*620mm |
Material thickness |
≤1.2mm |
Spot diameter |
20μm |
Working temperature and humidity |
20±2℃/<60% |
The machine subject |
Granite |

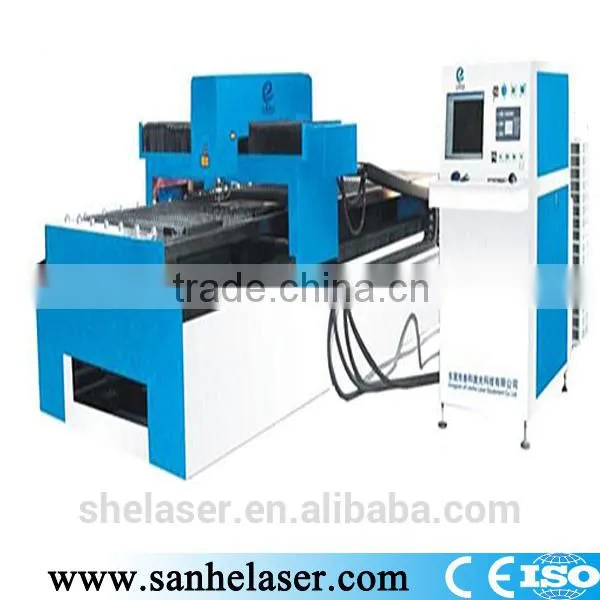

Fiber laser cutting machine:
| Model | 3HE-MF500W |
| Laser | Imported fiber laser |
| Laser power | 500W |
| Cutting stroke | 1500mm*3000mm |
| Cutting speed | Depand on the thickness |
| Repeat position precision | ±0.03mm |
| Cutting thickness | ≤8mm |
| Machine power | ≤10kw |
| Electric demand | 380V ± 10% / 50Hz / 60Hz / 60A |
Our service:
I. The whole set of machine is guaranteed for one year, not including normal replacement of wearing parts.
II. We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
III. If you have any particular suggestions or questions on our products, please feel free to contact us. We will be very grateful and reply your email or fax within 24 hours.

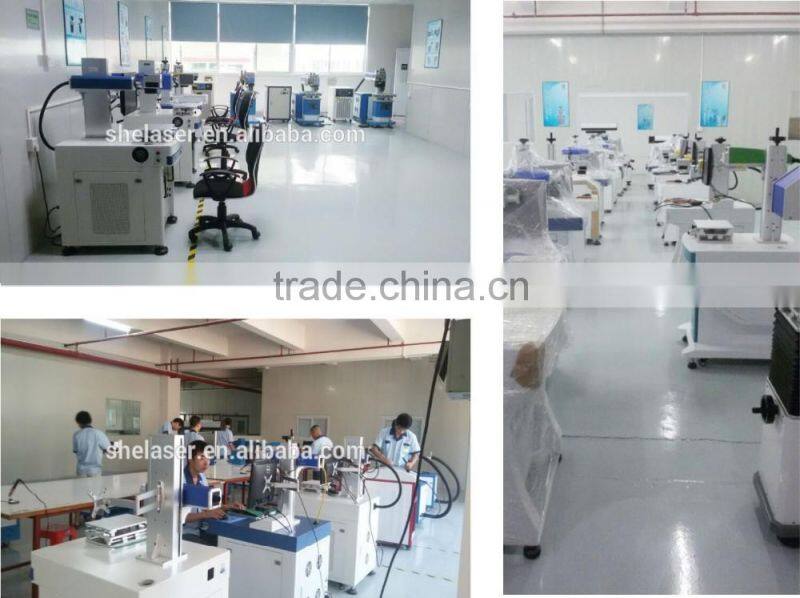

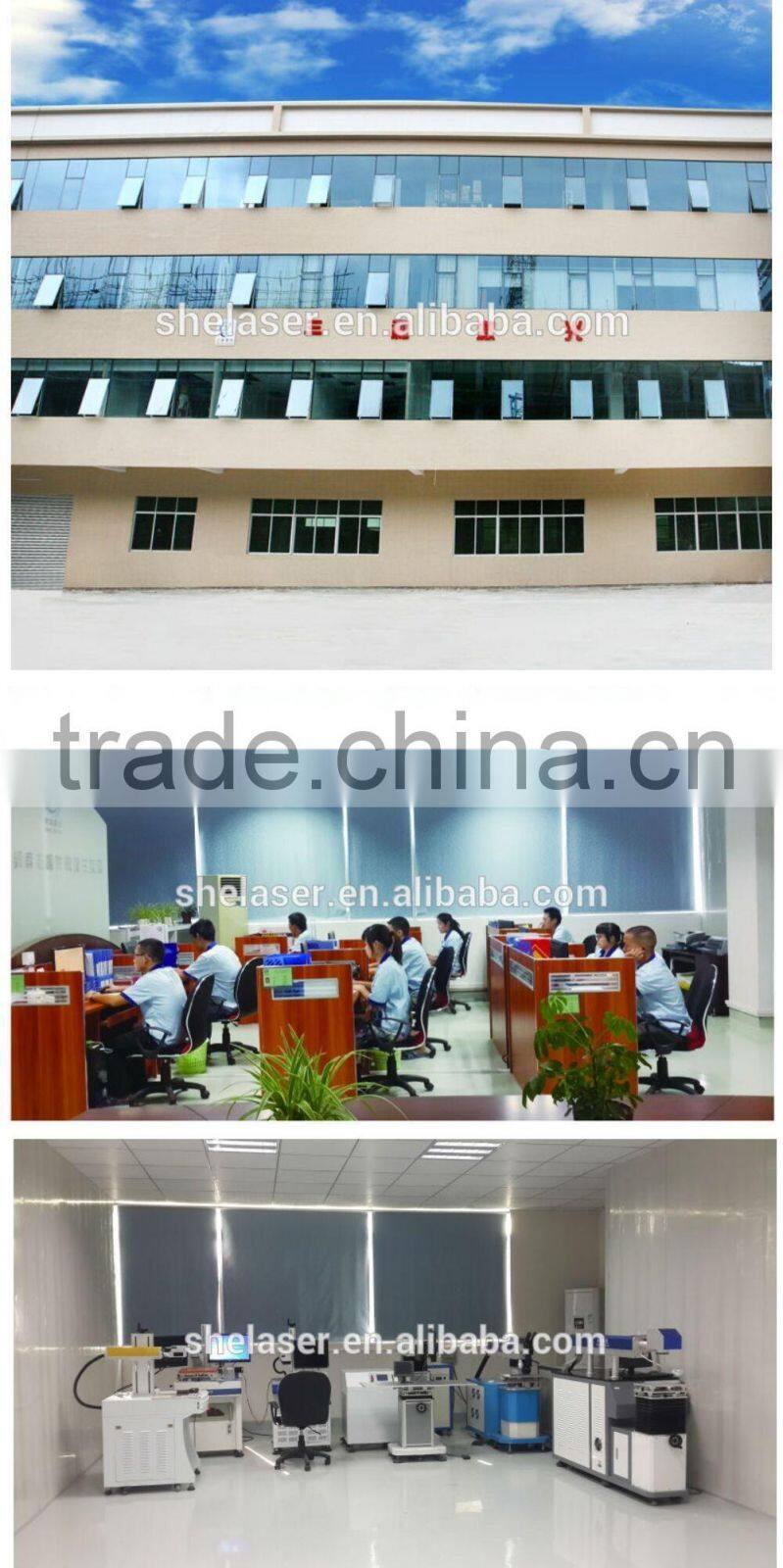

Our company:
Dongguan sanhe laser technology limited company is a company engaged in the development, production and sales of well-paid technology enterprise, is located in Dongcheng, Dongguan city industrial zone, with a modern production plant, the strength, talent is sufficient, have a professional research and development and production team.Company since its inception, the introduction of advanced laser technology and convergence with international laser industry solutions, and well-known institutions and optoelectronic Research Institute maintains a long-term good relations of cooperation, in the field of energy development and application of new laser bold in innovation, the pursuit of excellence.
Sanhe laser company have launched a series of large power laser cutting series, the laser marker series, industrial laser equipment, such as laser welding, the company relies on excellent quality and leading-edge technology, to meet the requirements of different lasers use area.Equipments are exported to the United States, Korea, India, Viet Nam, Japan, Malaysia and many other countries.
