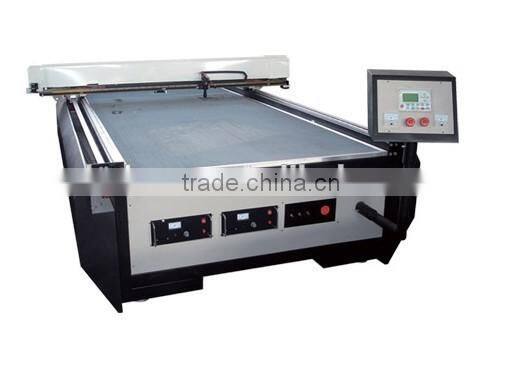

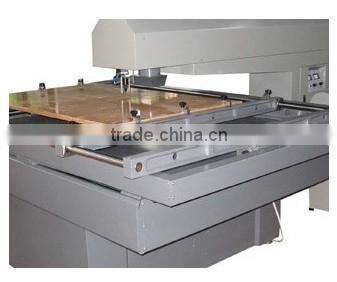

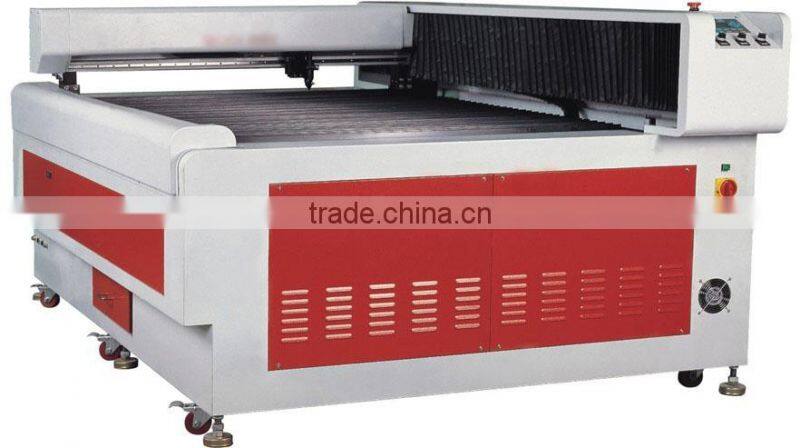

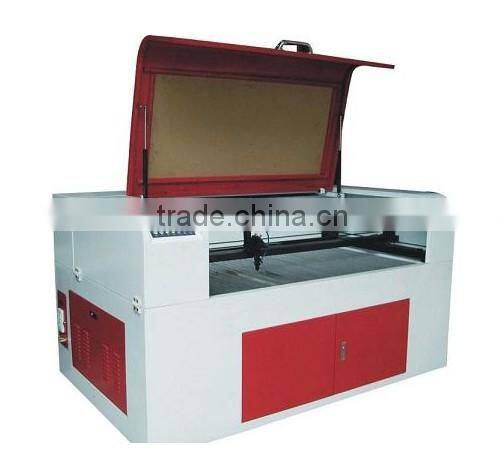

Factory direct 2014 3HE-500W New hot CO2 Metal laser cutting machine low price,cnc laser cutting machine

wood box

Specifications

CO2 Metal laser cutting machine
high strength and stability of machine tools
high power
low cost
fix optical

3HE-500W CO2 Metal laser cutting machine, cnc laser cutting machine







Model characteristics

1: fix optical (laser head stationary, plate movement).

2: the two sides imported precision ball screw drive (more accurate than generally accurate), precision electronic cutter error 0.05mm

3: 18-22mm, closed on absolute vertical uniform cutting knife line one metre speed for about two minutes, a spell of eight color box cutter cutting in half an hour to complete.

4: low power consumption using low cost, one-way 220, 3 Watts/hour (3000W power level model).

5: high strength and stability of machine tools, long-term work without distortion is not distorted.

6: laser knife mould cutting machine can cut production of 5MM,6MM plastic sheet cutting and 18MM,15MM,20MM wood cutting, cutting 0.45,0.71,1.05,1.42 any width cutting. slit evenly, top and bottom seam line. and that is open, no power on waiting time. Laser knife mould cutting machine box type the actual paper proof or on electronic film, self-adhesive materials most needed punching die cutter cutting directly with motif designing. Can also print directly on the paper form or large-format publishing., instead of a plotter tens of thousands of dollars.

Laser knife mould cutting machine performance: 1 laser knife mould cutting machine compact, covers an area of small, casing made of high quality steel material. External power supply 220V, and very low cost, consuming components (laser tubes, lenses etc) per working day of 8 hours per month less than 700 Yuan a month of 30 days. 2 laser knife die cutting machine used flight light road structure, CO2 laser generator by domestic performance best of manufacturers provides, stability high. laser reflection focused lenses used United States original imports lenses, greatly reduced laser power in transmission process in the of attenuation used thermostat water circulatory system, extended laser tube life of while also more ensure has laser power of stable, guarantee laser knife die cutting machine of cut sewing uniform.

Main advantages:

(1) perform a variety of complex structures and processing.

(2) do not need mold, that is able to rapidly develop new products and cost savings.

(3) have an automatic tracking system, so that is able to complete plane, can complete a variety of rough surface cutting.

Application field:

Widely used in advertising poster production, sheet metal, high and low voltage electrical cabinets, textile machine parts, kitchen utensils, automobiles, machinery, electrical appliances, metal crafts, saw blade replacement parts, glasses, spring-loaded, circuit board, electric kettle, medical industries such as microelectronics, metal, knife measures.

Applicable materials:

Stainless steel, carbon steel, alloy steel, spring steel, copper, aluminum, gold, silver, titanium and other metal plates and pipes.

Technical parameters:

Model:                        3HE-SH-4515

Working area:              4500 mm x1500 mm

Cut material thickness: 0.2 mm-6 mm (carbon steel)

Maximum output power:         500W

Laser wavelength:              1064nm

Pulse frequency:               1--300HZ

Minimum line width:           0.15mm

Power configurations:      380V/50HZ/100A

Axis positioning accuracy:≤± 0.08 mm/1000 mm

Axis repeatability accuracy:≤± 0.04 mm

Machine weight:                4000 kg

Cooling way:             water cooling 5P

Maximum cutting speed:        35 mm/s
