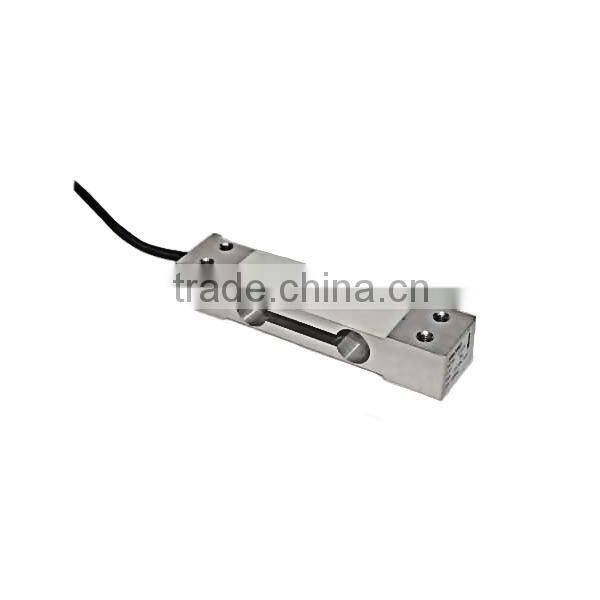

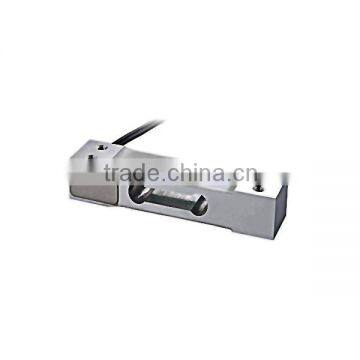

2kg 5kg Miniature Load Cell

Name: 2kg 5kg Miniature Load Cell
Brand: GXSENSOR Support OEM
SKU: 104238277
Availability: InStock

US$ 40 - 60 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

GXSENSOR Support OEM

Model Number:

LC-D2

Xi'an Kacise Optronics Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or other

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name GXSENSOR Support OEM

Model Number LC-D2

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

2kg 5kg miniature load cell

Features

Features of 2kg load cell

Protection Class: IP65
Optional measurement range: 20-350kg
Compact and beautiful structure, easy to install
Good corrosion resistance and long-term stability
Applied to related electronic scale such as small-sized electronic platform scale, portable scale, etc

Specifications

Parameter of 5kg load cell

Description
Material	Aluminum Alloy
Rated Load(kg)	3/5/10/20/30/50kg
Performance
Overall Precision	0.02(linearity + hysteresis + repeatability)
Sensitivity	2.0±10%mV/V
Excitation voltage	5~12V DC
Creep(30 min)	±0.02%F.S/30min
Zero balance	±2.0%FS
Input Resistance	410±15Ω
Output Resistance	350±3Ω
Insulation Resistance	≥2000MΩ
Working Environment
Safety overload	150%F.S
Ultimate overload	200%F.S
Operation overload	-20~+60°C
Zero Drift	±0.03%F.S/10°C
Output Drift	±0.03%F.S/10°C
Protection Class	IP65
Platform size	<350×450mm
