Specifications
touch screen power line communication Lamp/Appliance Module for android1Rated voltage 220VAC , 50Hz
2CE certificate
3 manuf
Taiyito TDXE4404 2-Way Fluorescent Low Cost wifi power line communication touch screen Module Lamp/Appliance Module/2 gang lamp module for android with 2-Button Switch Panel from china
2-Way Low Cost wifi power line communication Lamp/Appliance Module/touch screen Module for android Advantage:
1. If the lamps/appliances have this module then can control by the system many commands.
2. Very easy for installation, no never it is a new or old house, can put it inside the wall switchbox or put it on the lamp.
3. Have the function for all on/off, for example, you can turn on all the lamps in the bedroom or turn it all off.
4. It is very stable and reliable, bidirectional communication with feedback
2-Way Fluorescent Low Cost wifi power line communication Lamp/Appliance Module/ touch screen Module for android Function description:
1. You can use the remote controller to turn on/off the lamp which you put this kind of module in any direction at home, also can check the working status.
2. When you in front of the lamp switch, you also can control it just like a normal local switch to turn on/off it.
3. When you are on the way home, you can make a call first to turn on the light in your hallway or turn on the drinking machine.
4. When you are in another province for business, you can through web controller to turn on/off your lamps or appliances-a very popular and modern way to control your home lights & appliances.
5. This module also controlled by Scene, for example, in the evening you want to your bathroom, just press scene key, you can open the way to your bathroom all the lights one by one, when you return back, just press Scene off key is ok.
6. Also have the timing control function.
2-Way Fluorescent Low Cost wifi power line communication Lamp/Appliance Module/ touch screen Module for android Features:
l Bidirectional communication by power line in high speed with the feedback function
l Join with any type of switches, and plug-in panel.
l Ultra-slim design. Dimension:46X46X23mm
l Easy use and quick setup. Can finish learning within 6 seconds.
l Use noise filter circuit inside
l Commands ALL ON/OFF for lamps.
l Command ALL OFF for electronic appliances.
Technical Specification:
l Rated Voltage & Frequency: 220VAC±10%,50Hz
l Maximum Load Two loads≤600W
l Static Power<0.5W
l Operating Temperature: -10~50°C
l Response Time for bidirectional signals≤ 2s
2-Way Fluorescent Low cost wifi power line communication Lamp/Appliance Module / touch screen Module for android Set up the address:
(Notice: Please refer to the specifications of the remote firstly…)
Connect with the traditional switch (Need neutral wire inside the switch box)
l It shows to connect with the traditional mechanical switch. (illus 1)
l Continuously press one circuit of the switch (up-down) rapidly 6 times. Electrify first load. It beeps ’Di’ three times. Now pressing the switch will be no use, which means to enter the address setting state.
l Send the relative signal by controller. (e.g. by TDXE6648 LCD Multi-Function Remote control)
Note: If want to set the electrical appliance module, press the key ‘ALL OFF’
If want to set the fluorescent lamp module, press the key ‘ALL ON’.
l Where hear beep ‘DI’ one time. Send the relative address code by remote immediately.
l After receiving the signal, the first load will cut off. It will beep long sound ’DI’ one time. Succeed in learning.
l Same way for setting the second load as the above.
Notice:
1. If not setup it, the devices will not responds to the command ‘ALL ON’.
2.The Micro Module will exit the Program Mode to factory setting if no action is taken after 30 seconds (Factory setting: the first circuit show P01, the second circuit show P02).
2-Way Fluorescent Low cost wifi power line communication Lamp/Appliance Module/ touch screen Module for android Operation:
After set up the address, you can control it through the methods as bellow:
1. Can realize local control same as any traditional switch.
2. Any bidirectional or X10 controllers, such as our wireless remote, wall-switch centralized controller, telephone controller and intelligent control center etc.
Installation:
Connect and install it by the professional persons as the wiring diagram.
Avoid injury to people and products.
l Shut off power.
l Connection line according to label on the module.
Module's "L" connects with Live wire.
Module's "N" connects with Neutral wire.
l Single-circuit load connects with ‘1’ port
Double-circuit loads connect with ‘1’, ‘2’port
Note: IN Controller Lines: Black is common, Red line “Load 1”, Blue line “Load 2”.
l Black / Blue / Red lines are connected to your double-circuit switches.
2-Way Fluorescent Low cost wifi power line communication Lamp/Appliance Module /
Plans |
Products |
Functions |
|||
A remote control |
TDXE4202 Appliance module |
TDXE6648 universal remote |
TDXE6438+ Wire Less Transceiver wit h timer |
An appliance(e.g. water heater ) |
1.On or off the water heater by the remote or transceiver; 2.timing the water heater to on or off at a certain time;3.Checking the working status of water heater |
B long-distance control by phone |
TDXE4202 Appliance module |
TDXE6626 Telephone controller |
A phone in your house or office |
An appliance you plan to control(e.g. motorized curtain) |
1.Unfold or fold the curtain just via a call wherever you’re; 2.checking its working status with this telephone controller; |

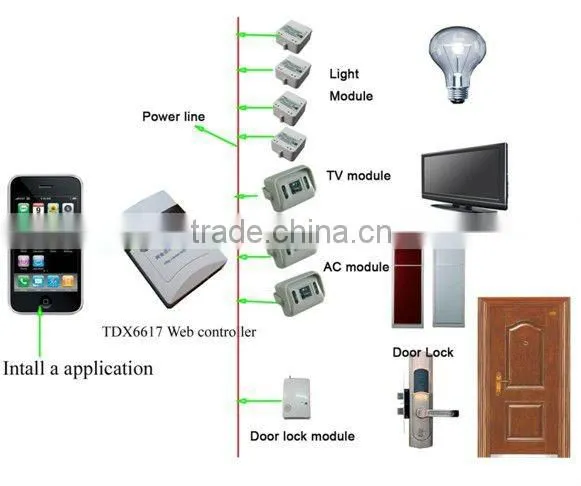

C long distance control through network |
TDXE4202 Appliance module |
TDXE6617 Web controller(TDX 6618) |
A Domain for internet or an IP address for LAN |
An appliance you plan to control(e.g. motorized curtain) |
1.Unfold or fold the curtain in your house just by a click on your PC wherever you’re; 2.checking its working status with this web controller |
D centralized control |
TDXE4202 Appliance module |
TDXE6400 Wall-Switch Centralized Controller |
A remote(TDXE6648/TDXE6671/TDXE6606) |
An appliance you want to control (e.g. motorized curtain) |
1.Unfold or fold the curtain in your house/office just by press the button on the centralized controller; 2.checking the working status of the curtain |
2-Way Fluorescent Low Cost wifi power line communication Lamp/Appliance Module for android certificate:
