X10 Home Automation Module/micro Module/curtain Module

Tianjin Taiyito Technology Co., Ltd.
5Yrs
X10 Home Automation Module/micro Module/curtain Module thumbnail-1
X10 Home Automation Module/micro Module/curtain Module photo-1
US$ 10 - 16 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYITO
Model Number:
TDXE4202/4203/4401/4402/4403/4404/4602
Use:
Universal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TAIYITO
Model Number TDXE4202/4203/4401/4402/4403/4404/4602
Use Universal
Place of Origin Tianjin, China

Specifications

-x10 curtain module
-220v,50hz
- bidirectional communication
-max power beside 2200w
-CE certificate



           x10 home automation module/micro module/curtain module



 Main used and control function:

It used in bidirectional PLC system can receive the PLC control signal and transmit related signal, it is controlled product, connect with electrical Motor together to control electrical curtain motor positive rotation and reverse then to realize curtain turn on and off.
Compatible with X10 protocol, accept and transmit X10 signal

It should work with the remote controller like TDXE6648+ 48key Multi-function LCD Remote Controller, TDXE6671 touch-screen colorful remote controller and TDXE6438+ Transmitter together to realize the remote control; if it work with telephone controller and web controller can realize the long distance control etc


 Installation:

Only need to put the module inside the standard 86 type switch box which control the electrical curtain, the switch box should have the naught wire, then just connect the switch panel just as you wish is complete.


Function description:

1.     You can use the remote controller to turn on/off the electrical curtain which you put this kind of module in any direction at home, also can check the working status.
2.     When you are on the way home, you can make a call first to turn off the Curtain.
3.     When you are in another province for business, you can through web controller to turn on/off your curtain-a very popular and modern way to control your home curtain.
4.     This module also controlled by Scene, for example, only one key can turn on the TV, water heater, and close the curtain.
5.     Also have the timing control functi



 Features:

1. The Max power can be 100W output.
2. It is very stable and reliable.
3. Bidirectional communication with feedback.

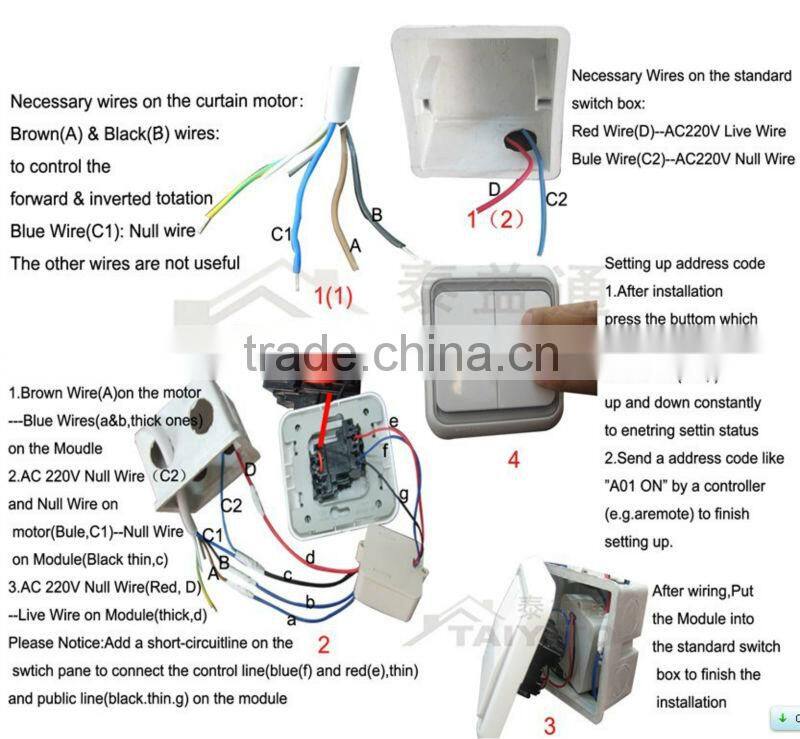

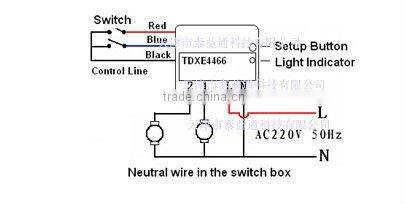

Connection drawing:

x10 home automation module/micro module/curtain module
x10 home automation module/micro module/curtain module


Any more questions , pls directly contact our sales departmen.O(∩_∩)O

x10 home automation module/micro module/curtain module



x10 home automation module/micro module/curtain module
