TAIYITO PLC Control System Electric Curtain Module

Tianjin Taiyito Technology Co., Ltd.
5Yrs
TAIYITO PLC Control System Electric Curtain Module thumbnail-1
TAIYITO PLC Control System Electric Curtain Module photo-1
US$ 14 - 18 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYITO
Model Number:
TDXE4466
Use:
Universal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TAIYITO
Model Number TDXE4466
Use Universal
Place of Origin Tianjin, China

Specifications

-TAIYITO PLC control system Electric Curtain Module
-accept and transmit X10 signal
-remote/long distance control
-CE

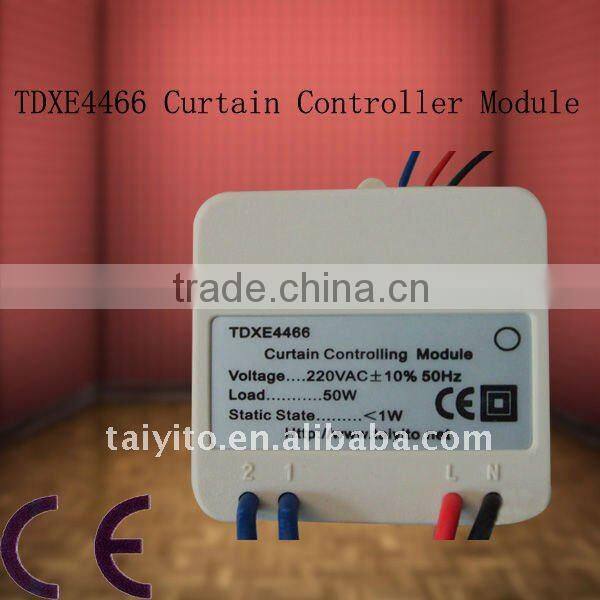

  TAIYITO PLC control system Electric Curtain Module





TAIYITO PLC control system Electric Curtain Module





TAIYITO PLC control system Electric Curtain Module





Main used and control function:
It used in bidirectional PLC system can receive the PLC control signal and transmit related signal, it is controlled product, connect with electrical Motor together to control electrical curtain motor positive rotation and reverse then to realize curtain turn on and off.
Compatible with X10 protocol, accept and transmit X10 signal...





It should work with the remote controller like TDXE6648+ 48key Multi-function LCD Remote Controller, TDXE6671 touch-screen colorful remote controller and TDXE6438+ Transmitter together to realize the remote control; if it work with telephone controller and web controller can realize the long distance control etc

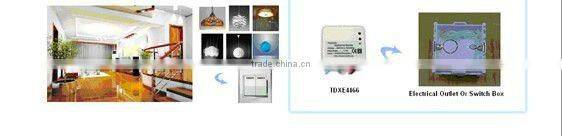

Installation:
Only need to put the module inside the standard 86 type switch box which control the electrical curtain, the switch box should have the naught wire, then just connect the switch panel just as you wish is complete.

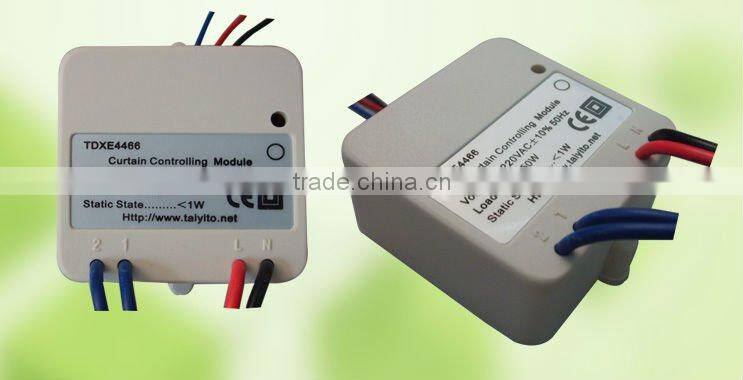

 TAIYITO PLC control system Electric Curtain Module



Function description:
1.     You can use the remote controller to turn on/off the electrical curtain which you put this kind of module in any direction at home, also can check the working status.
2.     When you are on the way home, you can make a call first to turn off the Curtain.
3.     When you are in another province for business, you can through web controller to turn on/off your curtain-a very popular and modern way to control your home curtain.
4.     This module also controlled by Scene, for example, only one key can turn on the TV, water heater, and close the curtain.
5.     Also have the timing control functi



Features:
1. The Max power can be 100W output.
2. It is very stable and reliable.
3. Bidirectional communication with feedback.

  Weight(g)&Size:
Weight(g):60g
package size:80*77*40mm/pc
product size:46*46*23mm/pc
