Help CenterTAIYITO TDX4603 6W Dimmer LED Bulb
Related Products
-
TAIYITO Motion Sensor Ceiling LightUS$ 10 - 30MOQ: 1 Piece -
TAIYITO X10 Plc Micro Lamp ModuleUS$ 10 - 15MOQ: 1 Piece
-
TAIYITO Electric Curtains Remote ControlUS$ 10 - 60MOQ: 1 Piece
-
Manual/ Remote Automatic Curtain System Apply for Home Automation SystemUS$ 18 - 588MOQ: 1 Set
-
Home Automation Touch Screen 4.3'' Background Music Colorful PanelUS$ 8 - 188MOQ: 1 Set
Specifications
1.TAIYITO TDX4603 6W Dimmer LED Bulb2.UL,CE,FCC,ROHS
3.Low power consumption
4.CE
5.Warranty:1 year
TAIYITO TDX4603 Dimmer LED Bulb with high power
1. Product introduction
Our LED bulb is made by Special different view angles mixing lighting design, inner high efficiency constant current driver, with less light degradation and 40000hour lifespan replacing incandescent bulbs,brighter than incandescent bulbs,better than most similar product.
2.LED bulbs Features
Certificates: UL,CE,FCC,ROHS
Green Illumination: No strobing during working, fast response (no delay) , no damage with frequency switching and energy saving 90% than conventional incandescent bulbs.
Circuit Design: Wide voltage range, wide frequency and constant current isolated circuit design of driver .It is not only safe , but also in small measurement with high efficiency and high power factor .
Long lifespan: Skl introduce the advanced thermal management technology of LED from Japan. The light decay of Skl products is very low and the lifespan is above 40,000 hours.
3.Application area
Available for shopwindow,supermarket,Shopping mall and living room.,etc
4.LEDs Lumen Decrease
Testing condition: testing for light work lasting
Operating time(hours) |
Lumen decrease(%) |
500 |
0 |
1000 |
0 |
1500 |
0 |
2000 |
1 |
3000 |
1 |
5.Electrical Characteristic
All data is under 25°C,unless otherwise specified.
Symbol |
Parameter |
Unit |
Min. |
Typ. |
Max. |
|
Vin |
Input Voltage |
V |
90 |
-- |
130 |
|
Iin |
Input Current |
mA |
55 |
-- |
80 |
|
P |
Power consumption |
W |
6 |
6.5 |
7 |
|
% |
Power Factor |
|
0..87 |
0.90 |
0.93 |
|
F |
Input frequency |
Hz |
50 |
- |
60 |
|
Top |
Operating temperature range |
°C |
-20 |
-- |
+50 |
|
Tstg |
Storage temperature range |
°C |
-20 |
25 |
+50 |
|
6.Photometry Characteristic
All data is under 25°C,unless otherwise specified.
Symbol |
Parameter |
Unit |
Min. |
Typ. |
Max. |
Br |
Lumen output |
lm |
400 |
420 |
440 |
Iv |
Lux at 1m |
lx |
80 |
85 |
90 |
Iv |
Lux at 1.5m |
lx |
37 |
40 |
43 |
Iv |
Lux at 2m |
lx |
23 |
25 |
27 |
Iv |
Lux at 3m |
lx |
12 |
13 |
14 |
CT |
Color temperature |
K |
3000 |
-- |
6500 |
CRI |
Colour Rendering Index |
-- |
70 |
75 |
- |
-- |
Power LED Dimmable |
-- |
0% |
|
100% |
7. Mechanical Dimensions

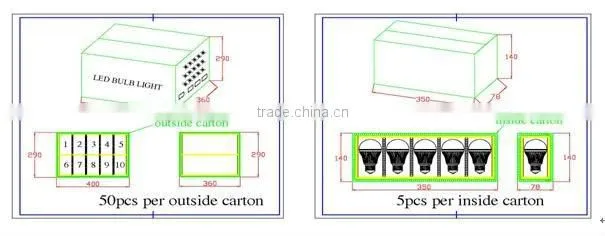

8. Package
Outter Carton: 400*360*290mm (50pcs/box)
Net weight of one tube108g
Gross weigh 9KG/Carton
