TAIYITO motion sensor ceiling light
- 100 Piece / Pieces per Month
- Tianjin/beijing/shanghai
- Credit Card
- TAIYITO X10 plc micro lamp module
- TAIYITO electric curtains remote control
- Manual/ Remote automatic curtain system apply for home automation system
- home automation touch screen 4.3'' background music colorful panel
- TYT wireless home automation
- zigbee/zigbee products/Zigbee home automation/smart home automation system
Product Details
Place of Origin: | Tianjin, China | Brand Name: | TAIYITO | Model Number: | TDX6820 C |
Usage: | Other, IR sensor | Theory: | Other, IR sensor | Output: | Other, IR sensor |
Packaging Details
paper box 60*60*30mm/pc
Product Description
Specifications
1.TAIYITO motion sensor ceiling light2.accept OEM
3.delayed type
4.Working Voltage:AC220V/60HZ
5.CE
TAIYITO motion sensor ceiling light
The PIR motion sensor is one celling sensor,it contains thermoelectric infrared ray position detector. When the sensor was within the scope of activities, it immediately turns on the lights. When the people leave the sensor range or keep stationary, the timer begin to work and delay to the scheduled time, and then the sensor turn off the lights. If there is somebody moving at the scheduled time, in the event of energizing, the sensor will re-time and delay to the scheduled time, then turn off the lights.
Specifications
Working Voltage | AC220V |
Load Power | ≤500VA |
Load Type | various lamps or appliances |
Induction Angle | ≤100° coning angle |
Light-controlled Adjustment | 0.1~2K Lux. |
Delay Time | 10~300 seconds, it can be ordered by user |
Product Size | Φ90×35mm |
Weight | 100g |
Package Size: | 88*88*52mm/pc |
Usage Method
This product is a self-contained. Do not enter the PLC system or ZigBee system.
The red line accesses the fire wire; the yellow line accesses the load; the white line, as a public zero line, accesses the zero line and the load zero line respectively. Prohibit short circuit of the lamp socket.
When you install the switch, the controlled electric lights should not straight shot the switch sensor window.
Avoid heat flow from the air conditioning or heating on the interference of the switching..
Usually installed on the roof or the wall.

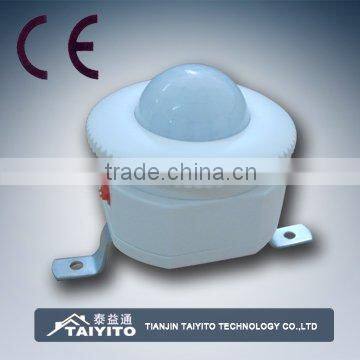

Another model
Another model
Shipment
1.Items are only shipped after payment is received.
2.We provide DNJ,EMS,DHL ,TNT for shipping method.
3.Delivery time:
EMS,UPS,DHL,Fedex and TNT express shipping usually take 3-7 working days depends on the country delivered to.In rare cases,the strict custom clearances will make the delivery time a bit longer,please be patient.
4.We are not responsible for any accidents,delays or other issues which are the responsibility of the shipping service.
5.Any import charges or fees are the buyer’s responsibility.
6.Please check out your ADDRESS carefully when processing order.
7.Feel free to Contact us with any question,we will offer you satisfying answer.
Payment
1.Western union
2.T/T
Company Profile
Taiyito Design Center of Taiyito Technology was founded in 2006 and is constituted of some hardware and software R&D engineers who have 5 or 6 years' experience in electric product design in the intelligence field. Comparing with smart products at home or abroad and being compatible with advanced technology and experience of smart home control, based on embedded computer system, Tianjin Taiyito Technology Co., Ltd. has devoted to smart home technology, communication technology and computer technology for stable bi-direction communication. We regard the manufacture and technology of products, which are first class and can meet customers' requirement, as our responsibility.
Taiyito Design Center has efficient and precise organization; clear and reasonable R&D processes; normative and canonical methods for outdated, and inspection and testing. We have senior engineers who have about ten years' experience in the electron industry field and many years in the smart home field, as well as in the machine, structure, mould, software, hardware, technology, and process fields. We have particular view for material selection, canonical and scientific process and assembly. R&D design electro circuit is our proud specialty. Engineers of Taiyito Design Center can complete product manufacture under the purpose of high-speed, high-efficiency and high-quality, whether the work is from simple module electro circuit to complicated radio frequency and coding & decoding electro circuit, or simple single chip micyoco (SCM) software program to complicated huge embedded system.
Tianjin Taiyito Technology Co., Ltd cooperated with Tianjin Electrical Component Group Third Component Company to exert both special advantages: specious and ordering jointing process workshop; well-trained and high-efficient management team and staff, who regard quality weightier than Mount Tai; precise, unified and advanced process instrument and equipment; canonical, scientific and normative technical process; conscientious and meticulous operating system and quality standard; passed relative quality standard and quality authentication many times. All these above measures can ensure high-quality and high-output millions of electrical products monthly.
Taiyito Design Center and manufacture process institution regard creating international advanced smart home technology as target, and develop towards this realizable target step by step. We are devoted to make people living more niceness and fashion.
