air room air shower1) Automatic blowing
2) Electronic interlock
3) Intelligent air shower
4) High quality with good price

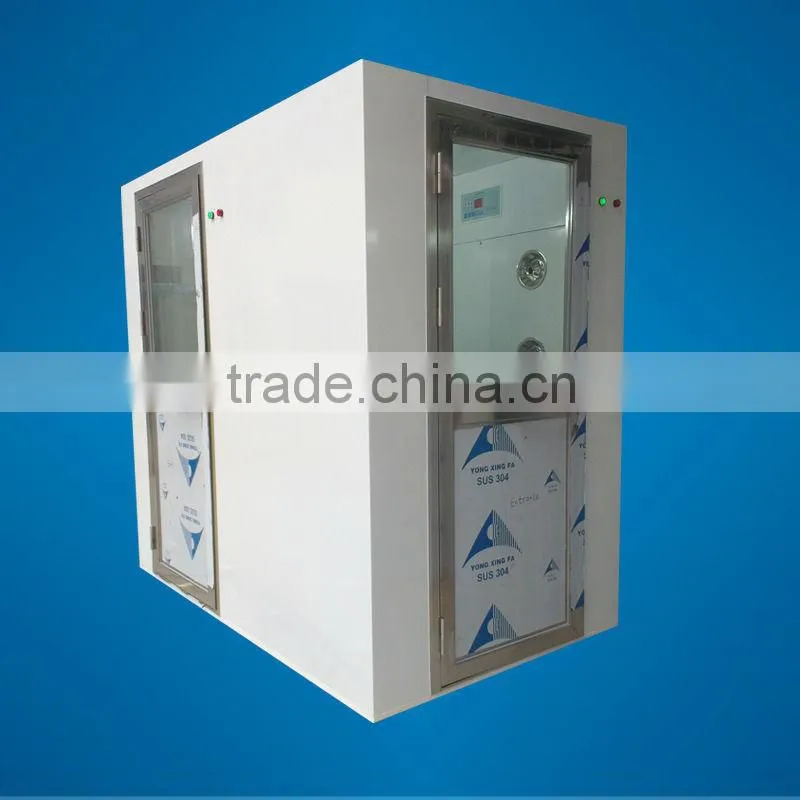

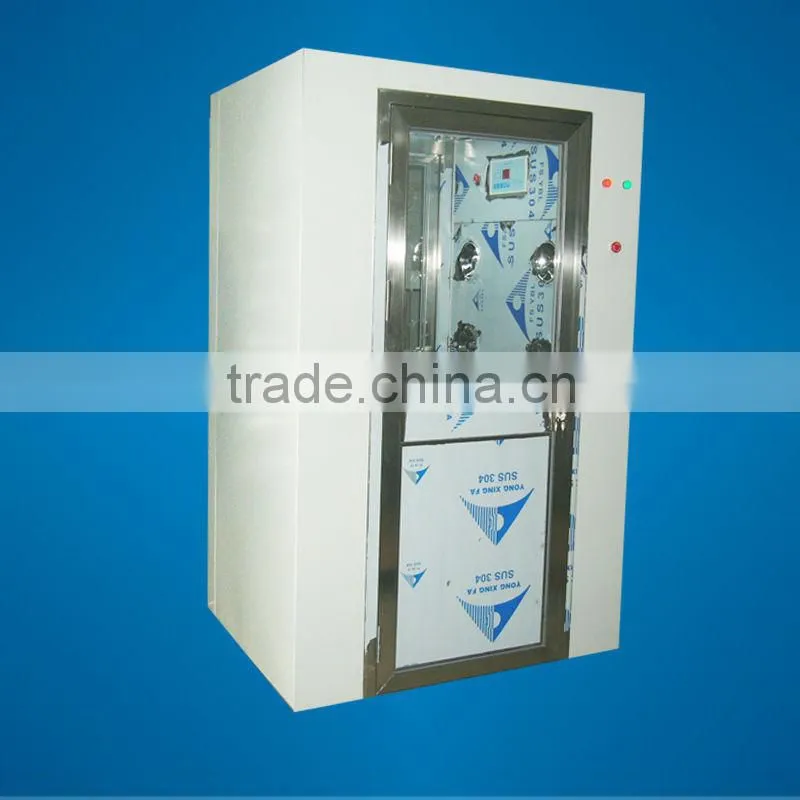

Air room, air shower room
Description:

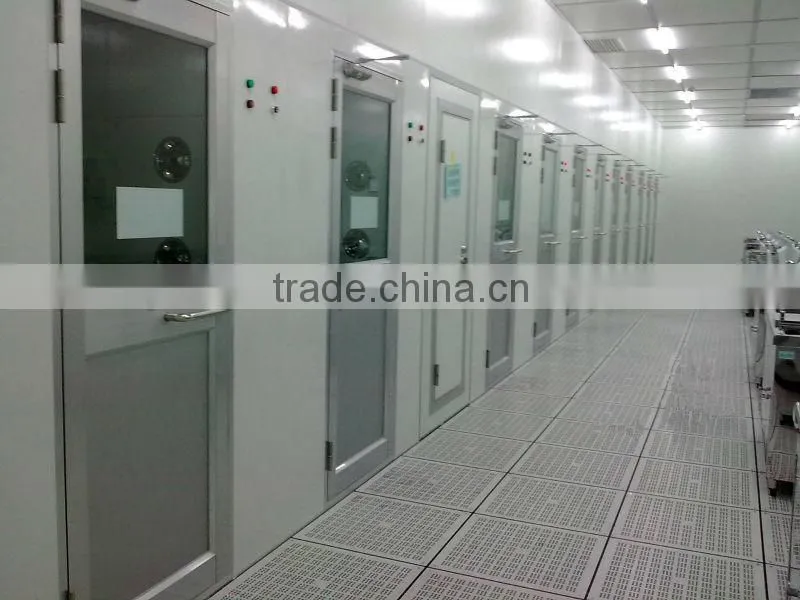

Clean room Air Shower is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Material:

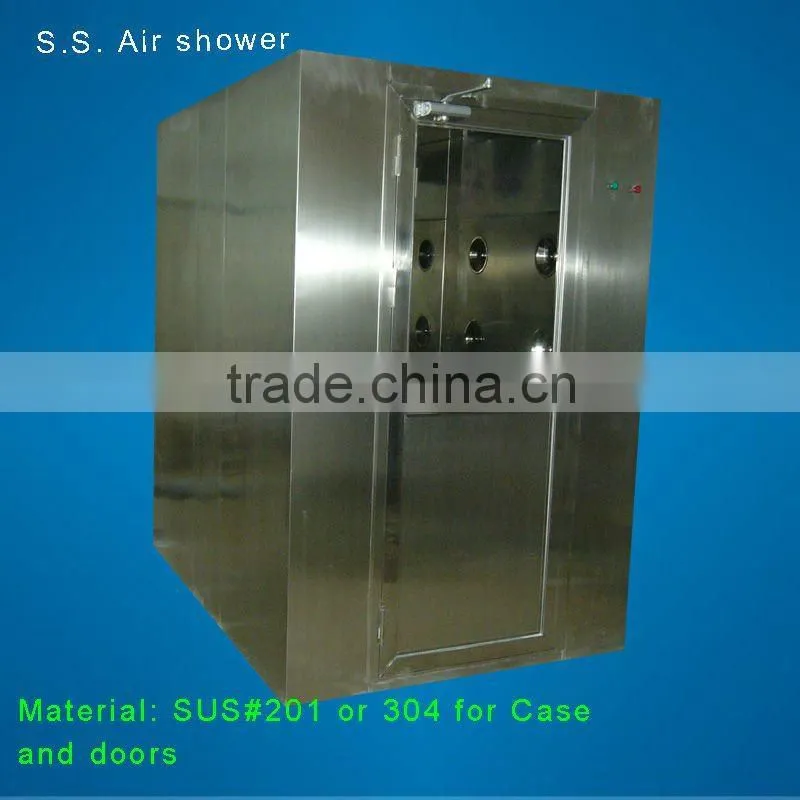

Outside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Inside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)

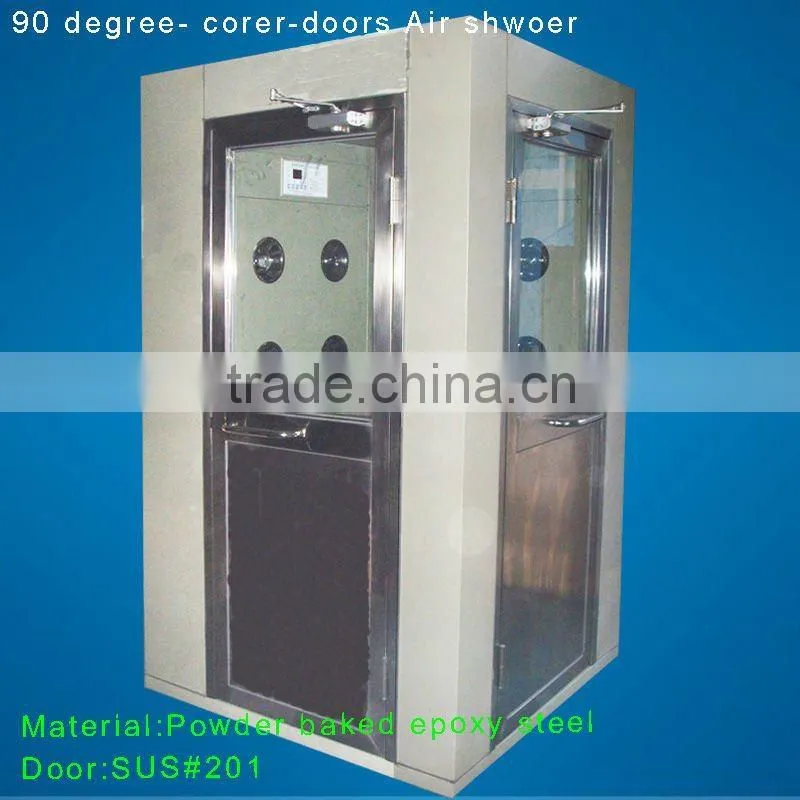

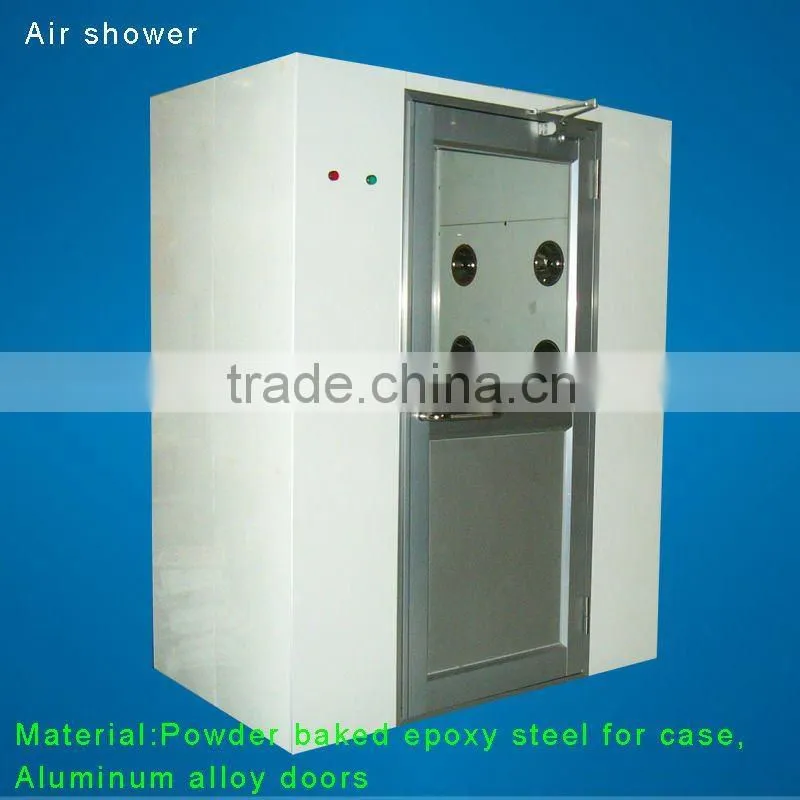

Doors: SUS#201,SUS#304 or aluminum alloy
Base: SUS#201 or 304
Nozzles:SUS#304

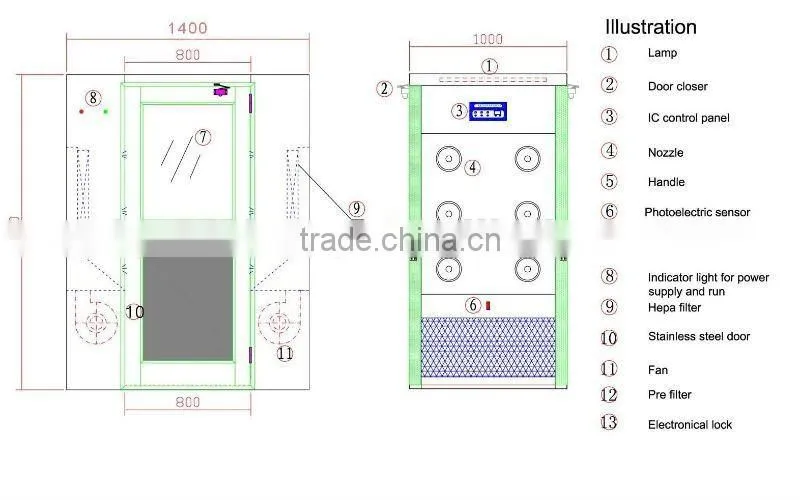

Features:
1. The control system run automatically, the two doors electronically interlocked, with photoelectric sensor
(One door in open state, the other door must in close state. When people enter air shower, the system will shower automatically by photoelectric sensor)
2. Air shower time from 0 to 99 seconds which can be adjustable
3. Pre filter and HEPA filter

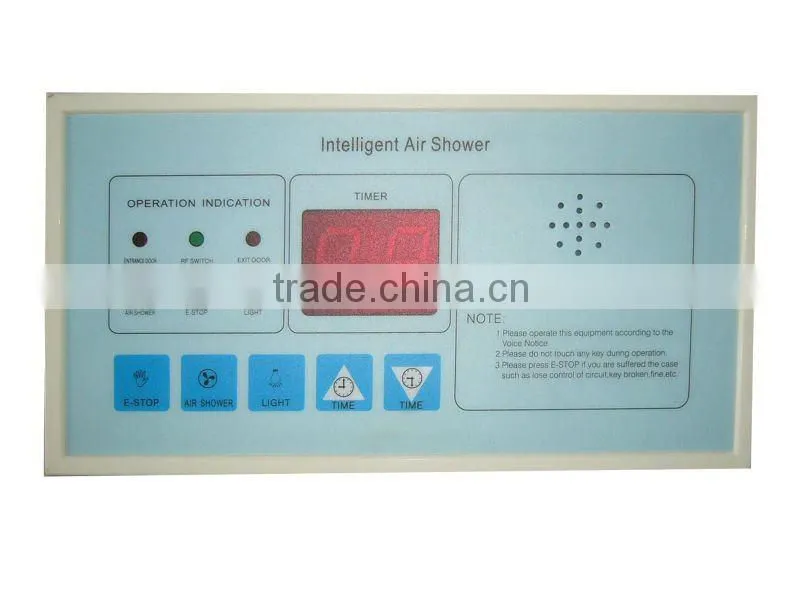

Control system:
LCD control panel, electronic interlock and automatic blowing by photoelectronic sensor.
Optional accessor

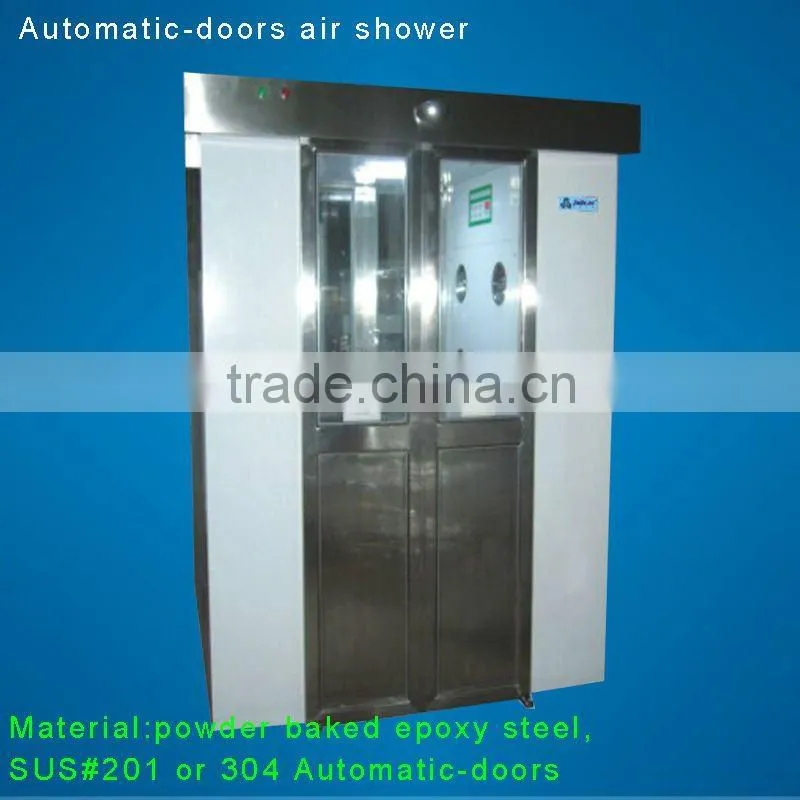

1.Manul swing door or automatic sliding door
2.HEPA filter or ULPA filter
3. The case is used of cold-rolled steel plate / all stainless steel air shower / just stainless steel inside
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
6. Omron or Mitsubishi PLC control system
Standar size and specificaton:
|
Model
|
Air shower |

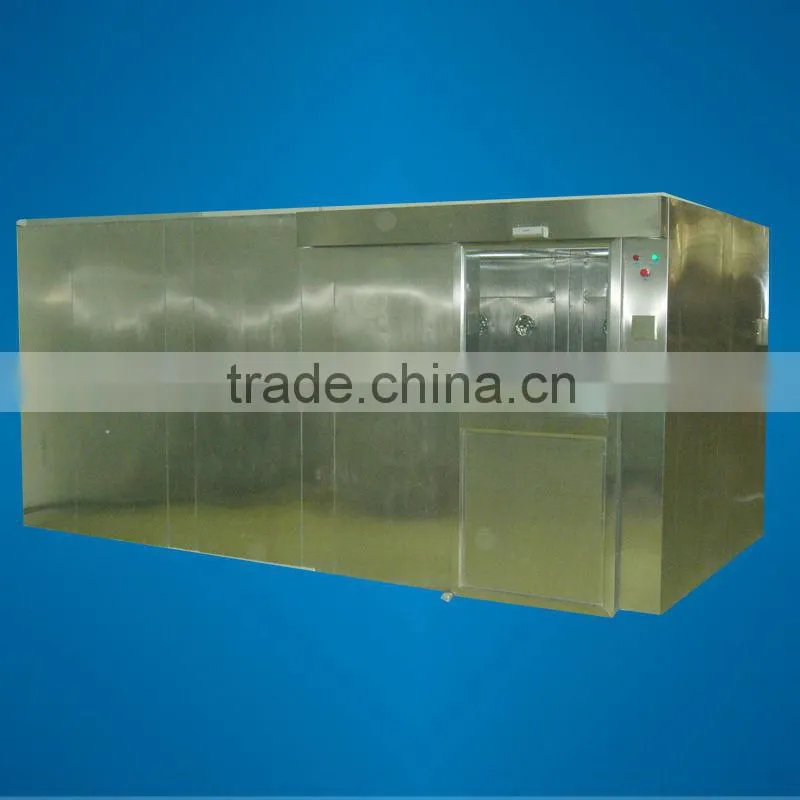

Cargo Air shower |
|||||
ZS-FL-1300 |
ZS-FL-1540A |
ZS-FL-1540 |
ZS-FL-1540-1D |
ZS-FL-2000 (2D) |
ZS-FL-2300- (5D) |
||
External dimensions (mm) |
1150x800x 2050 |
1400x1000x 2050 |
1400x1200x 2050 |
1400x1600x 2050 |
1800x2000x2050 |
2100x5000x 2050 |
|
Dimensions in WxHxD(mm) |
800x750x 1920 |
800x950x 1920 |
800x1150x 1920 |
800x1550x 1920 |
1200x1950x 1920 |
1500x4950x 1920 |
|
Material for case |
Cold rolled steel with powder coated , SUS#201 or SUS#304 |
||||||
Suitable person |
1 |
1 |
1-2 |
2-3 |
Cart |
||
Nozzles |
6(one side) |
12(two sides) |
16(two sides) |
18(two sides) |
24(two sides) |
60(two sides) |
|
Blow power(W) |
550 |
1100 |
1500 |
2000 |
2200 |
7500 |
|
Weight(kg) |
Appro.250 |
Appro.400 |
Appro.600 |
Appro.900 |
Appro.1200 |
Appro.2800 |
|
HEPA filter’s dimensions |
550x610x69 One piece |
610x610x69 two piece |
610x610x69 two piece |
610x610x69 two pieces |
610x610x69 four pieces |
610x610x69 Ten pieces |
|
Nozzle diameter |
32mm |
||||||
Air shower time |
0~99s Adjustable |
||||||
Spurt wind speed |
20~25m/s |
||||||
Voltage |
380V/50Hz/3Ph; 220V/50Hz/1Ph |
||||||
hepa Filter efficiency |
Above 99.99% efficient on 0.3um particles |
||||||
Control system |
LCD control panel, electronic interlock and automatic blowing |
||||||
