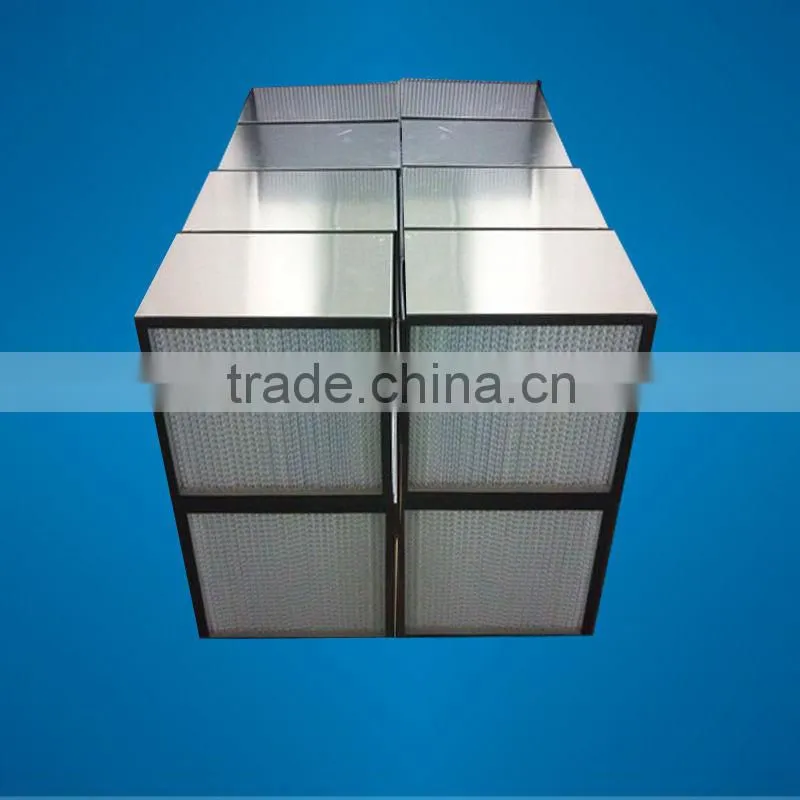

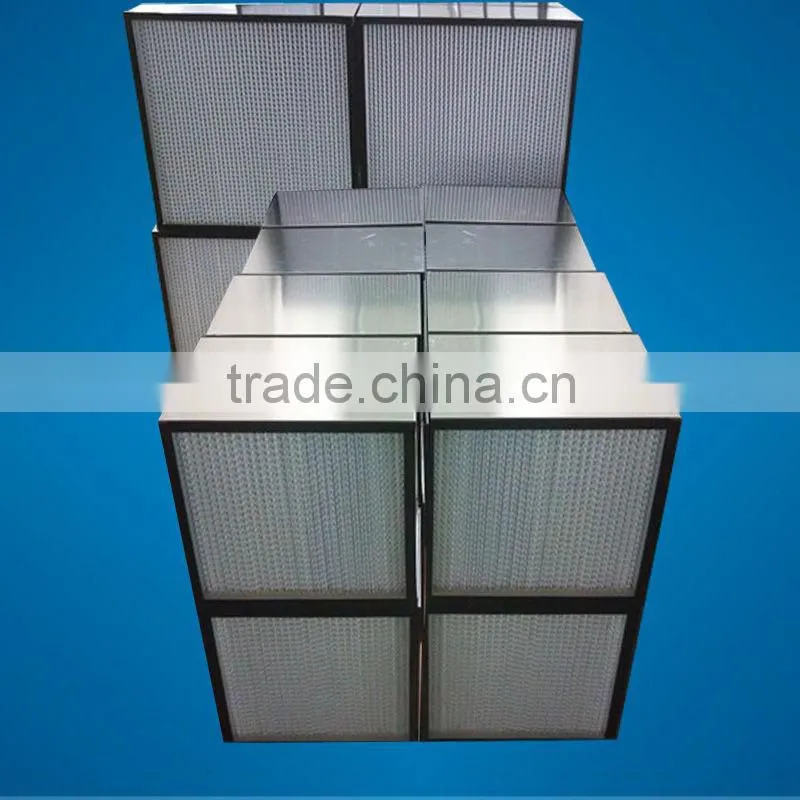

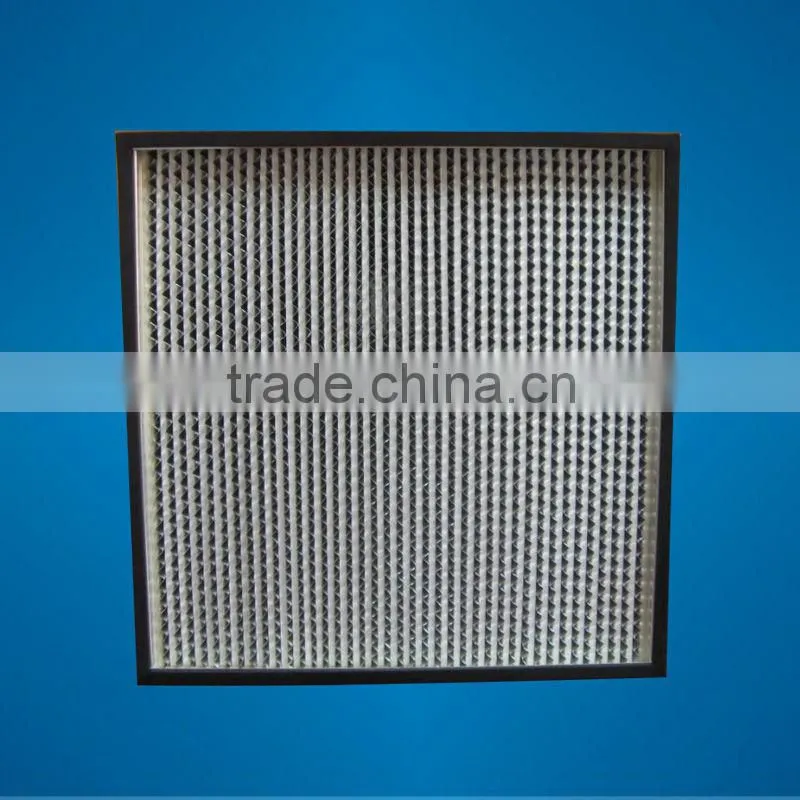

Air separation filter

Specifications

air separation filter
1) High capacity dust collect
2) Efficiency: 99.99% at 0.5um
3) Frame:aluminum/GI
4)Separator:paper/AL

ZS-GB  High capacity HEPA /HEPA FILTER



air separation filter





Description:



High capacity HEPA filters are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.



Applications:



HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.



Material and operating conditions:



External frame	Aluminum Alloy/GI/Stainless steel
Sealant	Polyurethane
Separator	Clapboard or aluminum foil
Filter media	Glass fiber
Maximum operating temperature	80°C
Maximum operating humidity	100%
Efficiency	95%-99.99%



Standard Size and Specification:



Model	Outside dimensions(mm)	Rated air flow (m/h)	Initial resistance  (Pa)		Efficiency EN799
ZS-GB320	320x320x220	400	≤120pa(PP)                               ≤220pa (fiberglass)		F9-H13
ZS-GB350	350x350x220	500
ZS-GB484	484x484x220	1000
ZS-GB610	610x610x150
ZS-GB630	630x630x220	1500
ZS-GB726	726x484x220
ZS-GB915	915x610x150
ZS-GB968	968x484x220	2000
ZS-GB1220	1220x610x150
ZS-GB1220	1220x630x220	3000
ZS-YGX-484	484x484x220	1000
ZS-YGX-295	295x595x292	1600
ZS-YGX-595	595x595x292	3200
ZS-YGX-610	610x610x150	1000
ZS-YGX-630	630x630x220	1500
ZS-YGX-1220	1220x610x150	2000
