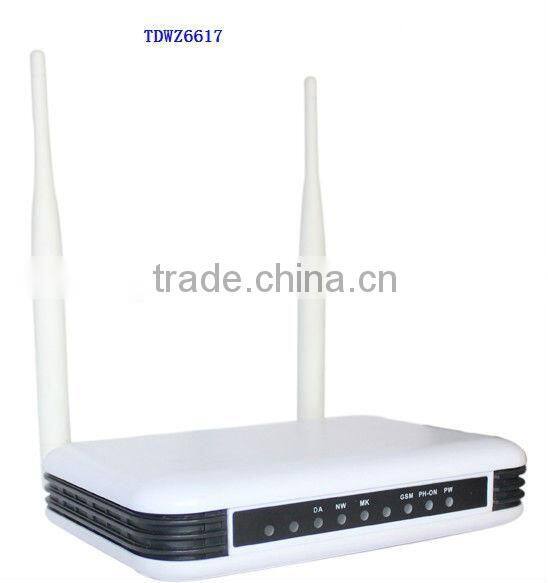

TAIYITO Bidirectional Zigbee Gateway /web Controller for Zigbee Home Automation

Specifications

TAIYITO bidirectional Zigbee gateway /web controller for Zigbee home automation
1.Voltage: AC 95-240V
2. date interface:RS485

TAIYITO bidirectional Zigbee gateway /web controller for Zigbee home automation





Zigbee gateway/ long distance web controller

This is "MUST-HAVE" part in Zigbee system and to realize long distance control by IOS or Android phone system.



Features:

1 > Suit with the Internet TCP/IP, Connect to the web router with RJ45 connector or wifi, can avoid turn on your computer.

2> Easy-use interface

3> Single power line, easy to connect.

4> Can work at 110-240VAC,50/60Hz, in order to use with different power supply



Technical Specification:



ZigBEE Protocol	IEEE802.15.4
Wireless Transmission Frequency	2.4GHz
Received signal	WIFI (802.11b/g/n) ; TCP/IP
Voltage	AC 95-240V;50-60Hz
Data interface	RS485, dry contact , ZigBEE



Please refer to below picture:









Main used and control function:

It's used in 2-way ZigBEE system, proceed 2-way 2.4G wireless radio frequency signal transmitting and receiving, belongs to the remote controlling products, mainly used in the remote network control and controlled electric equipment working status information inquery,

for example: when you are on a business trip in other place, you use network computer, login the IP address, you can control your lighting, electrical appliances, curtains, fingerprint door locks, etc., of your home.





The relative matching product:

This TDWZ6617 web remote control server need to be combined with other appliances: lightings, electrical appliances, air conditioner, curtains, fingerprint door locks, windows, clothes airer and other controlled equipments in the two-way ZigBEE system.





**  an example of  web controller for Zigbee home automation







Installation: (note: before installing this product, firstly need networking)

At home, as long as there is network wire (wifi) and 95 - 240v eletricity wire, installation is very simple!

Note: need to use network wire connected with router at home or prepare wireless router.

If you also use Taiyito clients at the same time, it is recommended that you choose a wireless router.





Features:

1> Suit with the standard Internet TCP/IP, Connect to the web router  or WIFI directly so avoid turn on your computer. Single power line, easy to connect.
2> Working states checkable: you can check the working states of the controlled lamps/appliances, then to turn it on/off, very safe to control, this checking function is the unique one in the Market!

3> Wide voltage power supply mode (95V-240V), which can meet all of customer demand from the different country, different area.





Certificate:





Company introduction:



TIANJIN TAIYITO TECHNOLOGY CO., LTD base on the professional R&D department, we have been at the forefront of the home automation industry.



Now we already have multiple proprietary intellectual property rights and certificate of patent. TAIYITO is professional manufacturer for zigBEE home automation system.



All our products could realize remote control, telephone control, IOS / Android APP control and web control.





If you are interested in our products, kindly contact us freely.
