Zigbee Smarthome Automation Products Wireless Smart Home Automation System
Taiyito wireless smart home automation system
In home automation solution, Taiyito use wireless zigbee technology.
About "ZIGBEE"
ZigBee is the set of specs built around the IEEE 802.15.4 wireless protocol. it is a low-cost, low-power, wireless mesh network standard.
The using of ZIGBEE is becoming the furture trend and Zigbee shall compatible with WIFI

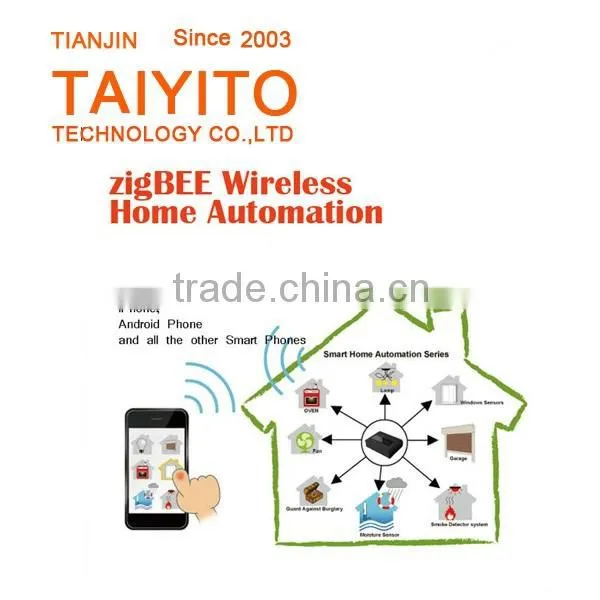

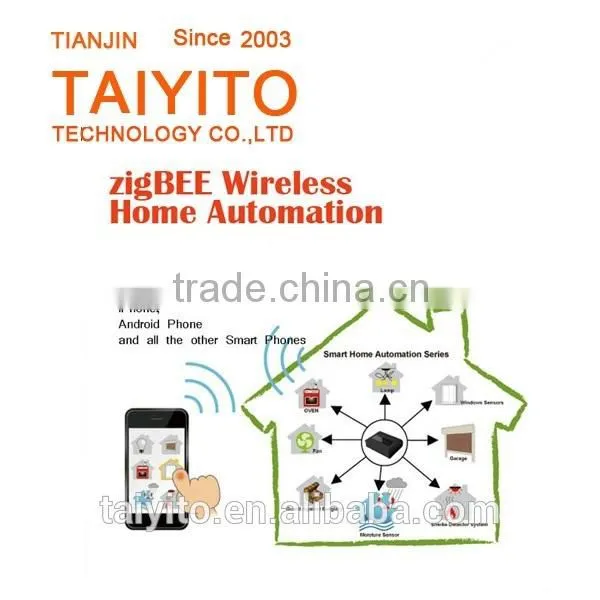

How to Zigbee work in smart home solution?
The control interface on smartphone or pad of taiyito smart home system

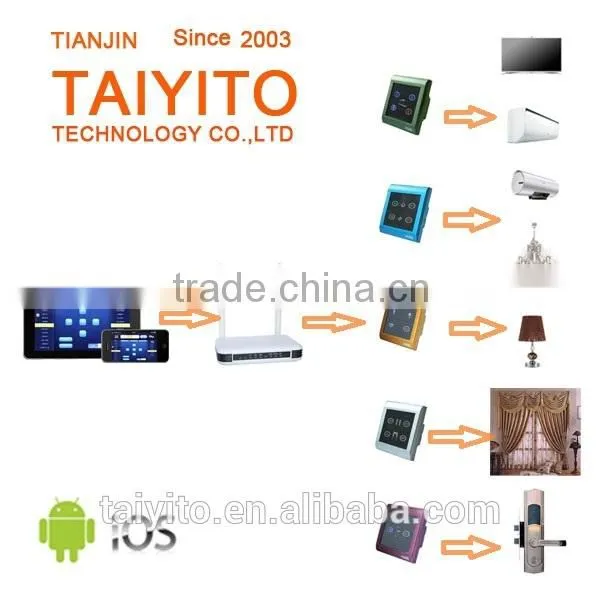

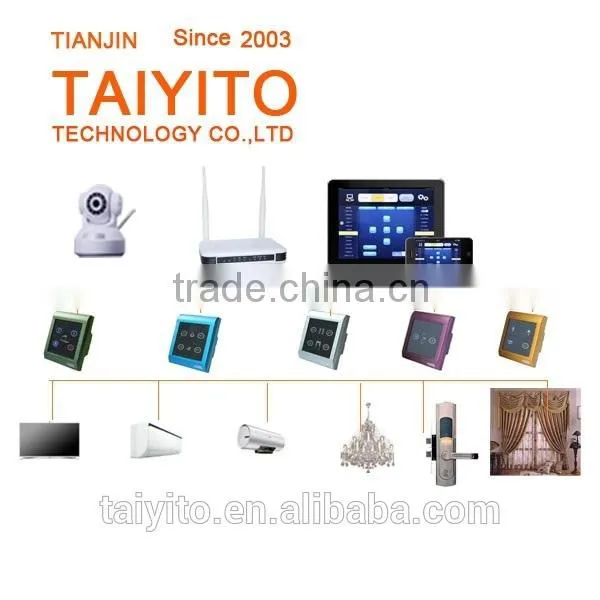

The simple show of Phone or pad control smart home solution
The Phone or pad control smart home solution can help you to realize intelligent control of:
1> lighting;
2> household electric appliances (water heater, AC, sound system, AV,TV);
3> electric curtain, window;
4>fingerprint door lock;
5>Electric clothes hanger;
6> home alarm;
7> network camera;
8>Heating;
The main function of taiyito Phone or pad control home automation solution
1> IOS /Android smart phone & pad long distance control
2> Scene control
3> Wall mount centralize control
4> Timing control
One Set of ZigBee smart home Sample List For Demo:
One Set of Zigbee smart home Sample List For Demo | |||
Model No. |
Description |
Quantity |
Function |
PCS | |||
Controller (send commands) | |||
TDWZ6406 |
Zigbee Touch Screen Wall Mount Centralized Controller |
1 |
Centralized Control |
TDWZ6617C |
Zigbee Network Service Controller(Including free ios&android apps) |
1 |
Gateway |
TDWZ6402M |
Zigbee Touch Screen 2-way Scene Switch(Max 16 |
1 |
Scene controller |
Lighting Control---Receivers( receive commands) | |||
TDZ4401M |
Zigbee Touch Screen Dimmer Switch |
1 |
One gang touch screen dimmer, for dimmer control(≤300W) |
TDZ4203M |
Zigbee Touch Screen Fluorescent Lamp/Appliance Switch(Max1500W) |
1 |
One-gang light switch, for lighting control (≤1500W) |
TDZ4404M |
Zigbee Touch Screen 2-way Fluorescent Lamp/Appliance Switch |
1 |
2-gang light switch, for lighting control (≤300W per gang) |
TDZ4405M |
Zigbee Touch Screen 3-way Fluorescent Lamp/Appliance Switch |
1 |
3-gang light switch |
AC/AV/TV/DVD/Music Control---Receivers( receive commands) | |||
TDWZ6436 |
Zigbee IR Transceiver |
1 |
360° angle,(Infrard devices receivers), for AC/ FANS |
Electric Curtain/Roller Control---Receivers( receive commands) | |||
TDZ4466M/4470M |
Touch Screen Automatic Curtain Switch |
1 |
Curtain touch switch |
TDX4470 |
Flat-open Electric & manual Curtain Motor |
1 |
Curtain motor |
TDX4467G |
Flat-open Electric & manual Curtain Rail |
1 meter |
Curtain track(work with TDX4467) |
Door Lock Control---Receivers( receive commands) | |||
TDZ4488M |
Zigbee Touch Screen Fingerprint door lock Switch |
1 |
Door lock signal receiver(work with our door lock only) |
TDX4487D |
Bronze Fingerprint Door Lock |
1 |
Indoor lock |
IP Camera Control | |||
TDX6618H |
Network Camera |
1 |
Indoor Camera |
The specification of Phone or pad control smart home solution
Zigbee protocol |
IEEE 802.15.4 |
Wired or Wireless |
Wireless |
Transmission Signal |
2.4Ghz, Zigbee / Wifi |
Supply Voltage |
AC 95-240 V; 50-60 Hz |
Date interface |
RS485; Dry contact, Zigbee |
Software system |
IOS / Android |
Working Temperature |
-10 to 50 Degree |
Rooms can be controlled |
256 rooms. ( 256 appliances in each room) |
Zigbee switches |
Touch screen electric resistance screen |
Certificate |
CE |
Warranty & After Sale
1 years warranty
Paymnet:
1. T/T, 2. West Union 3. Escrow, 4. Cash
Delivery:
1-7 working days
What is the certification of TYT zigbee Smart home?
-CE Certification
How to contact with TAIYITO?
Wireless Zigbee/Zigbee home automation/Zigbee Smart home
