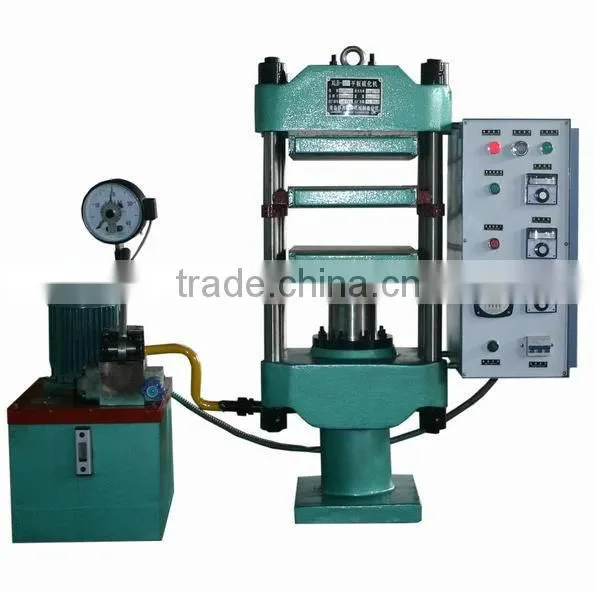

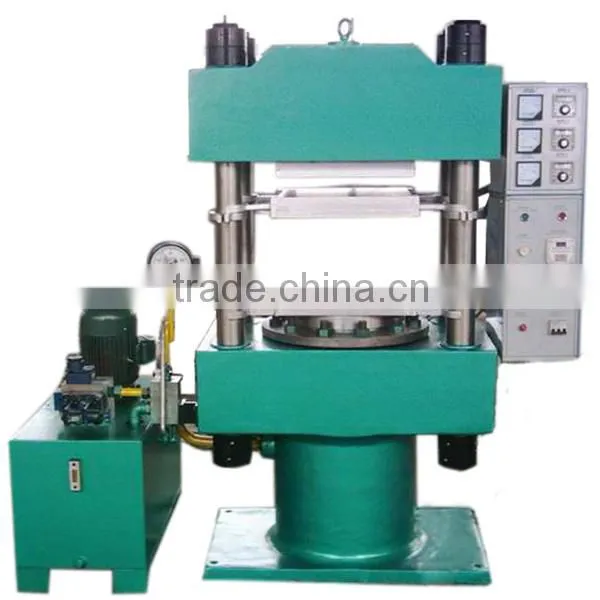

Automatic Plate Vulcanizing Machine
This plate vulcanizing machine can produce O-ring, rubber parts, sole, rubber buffer mat, automotive rubber parts, kitchenware rubber seal, etc.
This plate vulcanizing machine is fully automatic. Open and close mold, deliver mold in and out are all automaticlly driven by pneumatic cylinder. The vulcanizing time and temperature can be set according to the vulcanizing technology.
The machine is mainly made up of main machine, hydraulic station and electric system.
Main technical parameter
| type | 160T | 100T | 50T | 315T | 250T | 200T |
| Normal clamping mould force | 1600KN | 1000KN | 500KN | 3150 | 2500 | 2000 |
| Max Working hydraulic pressure(kn) | 16 | 16 | 16 | 16 | 16 | 16 |
| hot plate size(mm) | 850*850 | 600*600 | 500*500 | 1200*1200 | 1100*1100 | 1000*1000 |
| hot plate space(mm) | 125 | 125 | 125 | 150 | 150 | 150 |
| working layers | 2 | 2or4 | 2or4 | 2 | 2 | 4 |
| max plunger stroke(mm) | 500 | 500 | 500 | 350 | 350 | 600 |
| heating mode | steam/electric | steam/electric | steam/electric | steam/electric heating | steam/electric heating | steam/electric heating |
| hot plate pressure per unit area(KN) | 2.5 | 2.8 | 3.12 | 2.2 | 2.1 | 2 |
| motor power(kw) | 3 | 3 | 2.2 | 7.5 | 5.5 | 4 |
| dimension(mm) | 3000*1600*2523 | 2070*1050*2230 | 1470*640**400 | 1685*1320*2550 | 1780*1150*2434 | 1800*1200*2650 |
| weight(kg) | 6811 | 1900 | 1300 | 9500 | 8300 | 7900 |
| note | column | column | column | plate frame | plate frame | plate frame |
1 Free installation instruction
Customers will enjoy free installation instruction and training for different style. Installation pictures and video will be provided as your requirement freely.
2 24 hour service
You are welcomed to contact us whenever you have a doubt or a question. Our stong technician and engineer team will work out the solution to you within 24 hours.
3 One year warranty
Package: internal: stretch protection film
external: standard export wooden package
delivery: 30 days after receiving the deposit
Our company has passed the ISO quality management system certification
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet the requirements of the customers; Our company guarantee to provide you excellent pre-market sale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design and manufacture various non-standard products according to users’ requirements.
Our main products are: Conveying Belt Molding Machine Series; Batch Off Cooling Machine Series; Cushion Cloth Renovating Machine Series; Open Mixing Mill Series; Vulcanizing Press Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Conveyer Belt Machine Series; Other Rubber Machines; Design and Manufacturing of Automatic Production Line.
Bojia Machinery Company always pursue "quality first, customer first" principle to offer high-quality products and excellent service, welcome new and old customers to visit my company.
