High quality water pressure gauge

 Application field

The nomal pressure gauge is well suited fore measuring those gases or liquids which will neither
explode,nor crysallize,nor corrode copper or copper alloys .

Parameters

Products picture

 Application field

The shockproof pressure gauuge is mainly used in metallurgical industry, power station, oil
industry , chemicallndustry , and so on. The damp oills filled Inside thls gauge and with the according
buffer it has excellent shake resistence abillty. And It Is well suited for measurlng those medlum whlch
has strong pulsation or pressure concussion or service medium which dlsappear suddenly In the
manufacture, or for the situation which shake violently. This gauge can measure the average value of
the pulsant pressure of the gas or liquid, so that it can avoid the damage which is caused by the strong
pulsation and violent shankence and insure the measurement precise.

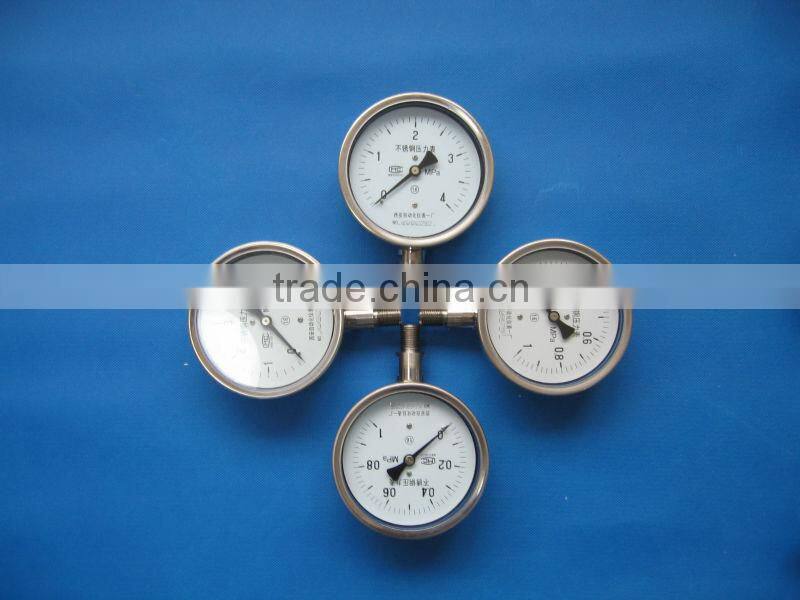

The outer case of the stalnless shake res lstence pressure gauge Is made of stalnless steel materlal,
can be used In the envlronment whlch has strong corrosion and vlolent shakence.

Parameters

 Application field

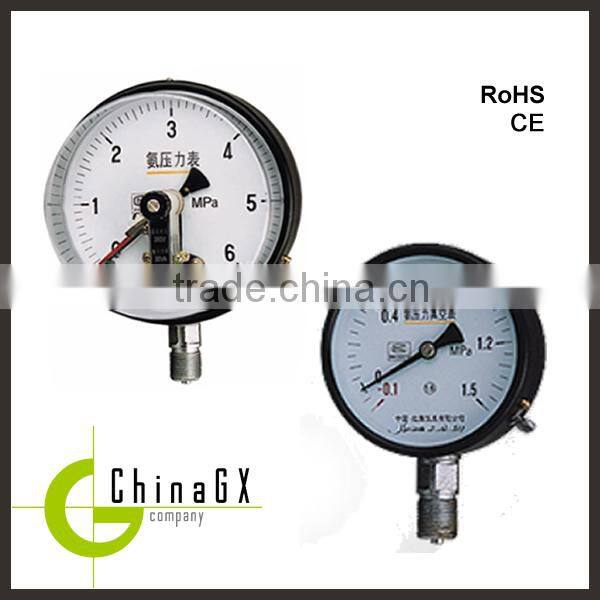

The ammonia pressure gauge can be used in measuring the pressure of the service medium
which has no corrosion function to all of the carbon steel ,stainless and solders like tin.Mainly used
in measuring the pressure of the liquid or gas of the ammonia which will be concerned in fertilization
manufacture and the refrigeration equipment.

Structure

The gauge is made up of measuring pressure system(involve connector,bourdon tube).gear setting ,
pointer setting and outer case.
When the service medium act on the flexibility parts and make it move,with the help ofthe stick ,
magnified by the gear setting ,and the pointer point it out on the dial.

Parameters

Product picture

 Application field

The gauge can be used in measuring the pressure of the service medium of liquid.vapor and gas
which will not corrode copper of copper-alloys. Because a slip electic resistence transmitter is fixed in the
gauge,it can change the measuring value into the electrical value and send it to the second instrument.
then it can realize the concentrated check and remote control.Besides,this gauge can point the pressure
on the spot,so it can be used as examine the technics on the spot.

Parameters

 Product picture

 Ordering information

Please send me the parameters such as diameter,measuring range,accuracy,mounting,material,application fields,then I will choose a suitable model for you.

 Application field

DRP-150 dlfferentlally transmlssible pressure gauge is safe antlexplosive gauge which is mainly
used in measuring the pressure of the gases and liquids whlch have no corrosion function to copper
and steel.When attached the damper,it can measure the pressure of the service medium which has
sharp pulsation and concussion character.when attached the diaphragm,lt can measure the pressure
of the service medium which has high viscosity,strong corrosion character.This gauge can not only
indicate the pressure measurement,but also continuously oulput the 4-20mA direct current signal which
is linear to the pressure measurement.lt alsocan connected with the showing,recording,adjusting gauge
and become a auto-recording,adjusting,controlling system.This gauge is suited for the oil and chemical
industry,metallurgical industry,power station and so on.
This gauge accord with the request of the G83836.4-B3 Bnd have procured the Bnti-explosion
qualified certification through the anti-ex-plosion examine DPT.

Parameters

 Ordering information

Please send me the parameters such as diameter,measuring range,accuracy,mounting,material,application fields,then I will choose a suitable model for you.

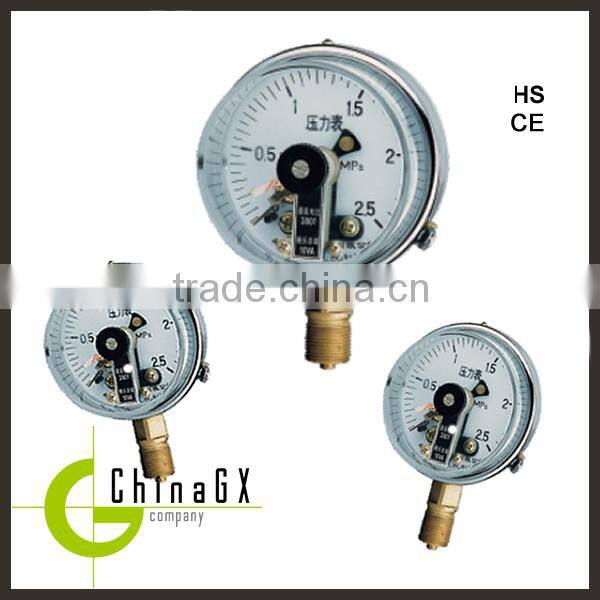

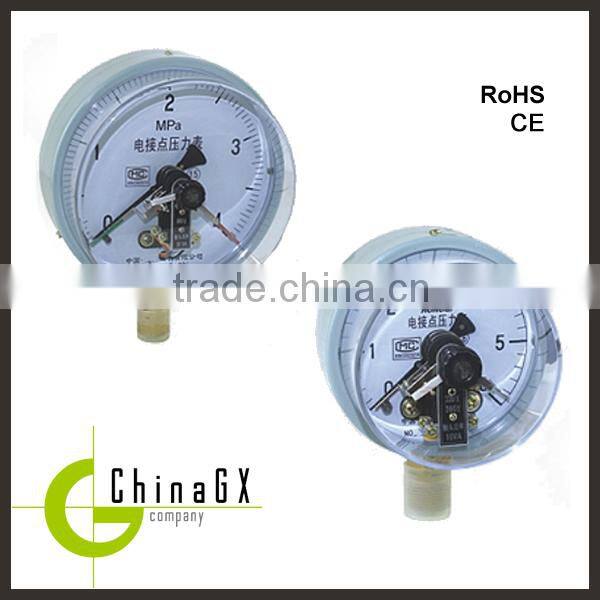

 Application field

This gauge is suited for measuring the pressure of those gases or liquids which neither corrode
copper alloys nor exlode,nor crystallize.lfthe gauge is linked with the corresponding electric equipment,
it wlll realize double controlling to the maximal pressure measurement and minimal pressure measurement.
This gauge have the tunctlon of measurlng and controlllng,and can set the up IImit and down limlt
pressure value.And the measurement was reliable.This gauge is well suited for the oil industry and
chemicallndustry and power station and usually Is link with the electric equlpment.

Parameters

 Products picture

 Application field

This gauge adopt theca case as the sensitivity part, can measure the micro-pressure or negative
pressure of the gases which have no corrosion function to the copper alloys and have no expiosion.
And it is widely used in boiier ventilation , gas tube and fuel setting and so on.

Parameters

Products picture

 Products picture

 Application field

This gauge is designed on the base of the structure of the nomal of the theca case of the pressure
gauge,whlch has the anti-corrosive character. The materlal of the measurlng system and outer Cage
is stainless steel. It is suited for measuring the micro-pressure or vacuum of all kinds of gases in
technologic prOCe9S whlch has high requlre for the corroslon. And al90 can be used In boiler ventllation,
gas tube and fuel setting and so on. Also it is the ideal accessories for domestic consumers who want
to homemade the same gauge Imported abroad.

Parameters

Products picture
