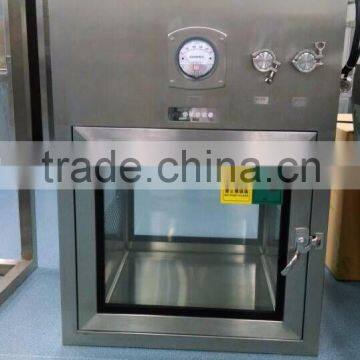

Dynamic pass box
Material: stainless steel 304 or 316 for outside and inside
Description:
Pass box is a kind of auxiliary equipment of clean room.
It reduce the pollution of clean room clean to lowest
Feature:
1) Adopting stainless steel inside
2) Sealless
3) Mechanical or electric interlock
Optional accessories:
1. UV light
2. Mechanical interlock or electric interlock
Usage: It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.

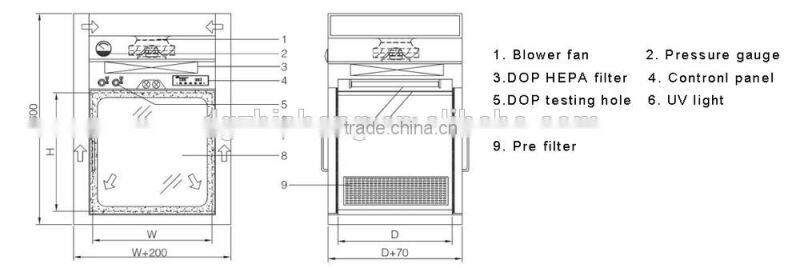

External size(mm) | W800xH1200xD670 | W1000xH1400xD870 |
Workarea size (mm) | W600xH600xD600 | W800xH800xD800 |
Air velocity(m/s) | 0.3-0.9 | |
Blowing time (s) | Control by manual | |
Material for main body | Stainless steel 304 | |
HEPA filter size | 487x487x93mm | 610x610x93mm |
HEPA filter efficiency | H14(99.995% @0.3um) | |
Fan power | 165W | |
Voltage | AC220V/50Hz | |
we can offer special size and requirement as per our clients
