TYT RS 485 Home Automation System Remote Control Zigbee Wireless Smart Home Automation System

Product type

smart home automation system

Zigbee protocol

IEEE 802.15.4

Wired or Wireless

Wireless

Transmission Signal

2.4Ghz, Zigbee / Wifi

Supply Voltage

AC 95-240 V; 50-60 Hz

Date interface

RS485; Dry contact, Zigbee

Support software system

IOS / Android

Working Temperature

-10 to 50 Degree

How many rooms can be controlled

256 rooms. ( 256 appliances in each room)

Zigbee switches

Touch screen electric resistance screen

Feature for smart home automation system

• easy to install and setup
• low power consumption
• unique ID in worldwide, anti-interference from other users.
• Ad-hoc network, never drop off network
• Wireless 2.4Ghz frequency
• bidirectional communication within 1s
• huge network capacity, up to 6,5000 nodes per network
• 128-bit AES encryption for secure data connections
• IOS and android software,can be visited by 2G,3G wifi
• resistant touch screen,more realiable and durable
• colorful back switch box design,more fashion

Name

wireless zigbee home automation

Zigbee Protocol

IEEE 802.15.4

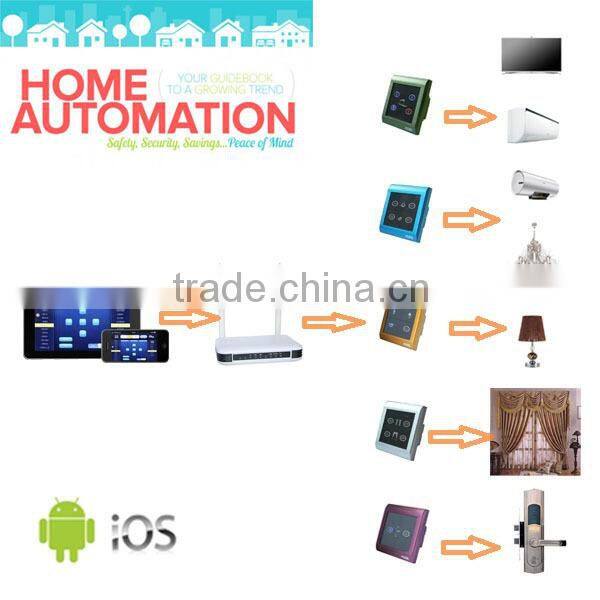

Appliances

1. lighting/lamp system(ON/OFF and dimming)

2. household electric apparatus(TV,AC,DVD,water heater,fans,ETC

3. window, electric curtain(Open/Close/Stop)

4. door lock(Open/Close)

5. AV, background music(ON/OFF/Channel/Volumn...)

6. home alarm system and other security products

7. home monitor system

Function control

1.IOS/ Android smart phone Apps control

ephone long distance control

3.Scene control;

4.wall centralized control;

5.remote control;

6.Timing control

Controlled products

(receive commands)

all kinds of switches or  TDWZ6436 or TDZ4202S

Controller products

(send sommands)

TDWZ6617 with apps or TDWZ6000S

Terminal products

TDX4467     Flat-open Electric & Manual Curtain Motor

TDX4467G  Flat-open Electric & Manual Curtain Rail

TDX4466     Flat-open Electric & Manual Curtain Motor

TDX4466G  Flat-open Electric & Manual Curtain Rail

TDX4469     Roller Blind Electric Curtain Motor(10N)

TDX4468G  Roller Blind Elctric Curtain Track( φ50 )

TDX6618H  Network Camera( 3 M Pixels)

.

Installation

4Steps: (in the standard 86 type junction box)

   Step1: do wire connection

   Step2: do networking

   Step3: setting gateway and apps

   Step4: setting address code

Material

Brushed Mental frame

Certification

CE

For agent, we require about the “agent fee”, and once we received the agent contract, we will require about the “The first order money”.For details, pls check the agent contract .

We have two advice, one is that you can check how much for the total installation cost, and put it into the unit price, so tell your buyer you did not charge the installation fee. Another is that you can change the installation fee and product fee separately.
