High quality vacuum absolute waterproof pressure sensor cost
Description of pressure sensor
GXPS700 Series absolute pressure transmitter is in an absolute vacuum as a reference point for pressure measuring. Connector size and structure size covers all products produced by our company structure and output interface.
1. Atmospheric pressure: The thick atmosphere surrounded by the surface of the earth which the pressure generated by the objects on the Earth's surface or the surface is called the atmospheric pressure, code name: B
2. Gauge pressure=relative pressure, Atmospheric pressure as zero resultant pressure value called gauge pressure or relative pressure, code name: Pg
3. Absolute pressure: Absolute zero pressure (absolute vacuum) for zero resultant pressure value called absolute pressure, code name: PABS
4. Absolute pressure=relative pressure+ atmospheric pressure, PABS=Pg+ B
5. Vacuum = atmospheric pressure - absolute pressure Kv =B-PABS.(B>PABS)
Features of pressure sensor cost
- DC and AC voltage output
- Accuracy: ±0.25, ±0.5%F.S
- CE certificate, RoHS compliant
- Non polarity two wire current output
- Various of connector and pressure port
- Various of measuring range and signal output
- Intrinsically safe mode, isolation explosion proof
Applications of waterproof pressure sensor
- Atmosphere measure
- Packaging machinery
- Petrochemical industry
- Meteorological monitoring
- Automatic detection system
- The mine wind pressure test
- Aviation, spaceflight, navigation
- Top floor apartment management
Parameter of high quality vacuum absolute waterproof pressure sensor cost
Spec. |
Value |
||
Pressure range |
0~0.01MPa......40MPa |
||
Load pressure |
1.5times nominal value pressure (1.5X) |
||
Rupture pressure |
3times nominal value pressure (3X) |
||
Accuracy |
±0.25%F.S, ±0.5%F.S |
||
Stability |
Typical value 0.25%F.S, Max. value: 0.4%F.S |
||
Operating temperature |
-40°C~85°C |
||
Compensation temperature |
-10°C~70°C |
||
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
||
Electrical performance |
2 wire system |
3 wire system |
|
Output signal |
4~20mA |
0~5V |
0~10V |
Power supply |
10~30Vdc |
6~24Vdc/10~36Vac |
11~30Vdc/20~36Vac |
Load pressure |
(U-10)/0.02Ω |
>100kΩ |
|
Insulation |
>100M Ω@50V |
||
Electrical connection |
Connector DIN43650, IP65 |
||
Air plug GX16-7, IP45 | |||
Waterproof outlet, IP68 | |||
Pressure port |
M20×1.5, G1/2, G1/4, NPT1/4, NPT1/2 |
||
Response time |
10ms |
||
Certificate |
Intrinsically safe mode E, Isolation explosion proof D, CE |
||
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
||
Electronic interface and signals definition

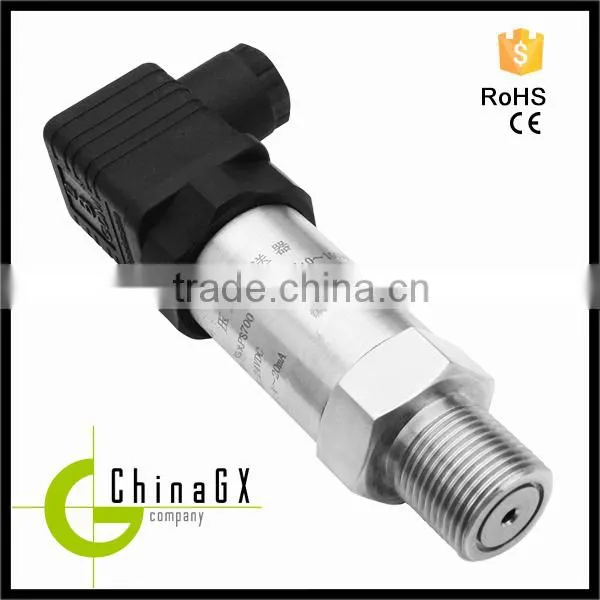

GXPS700 pressure sensor

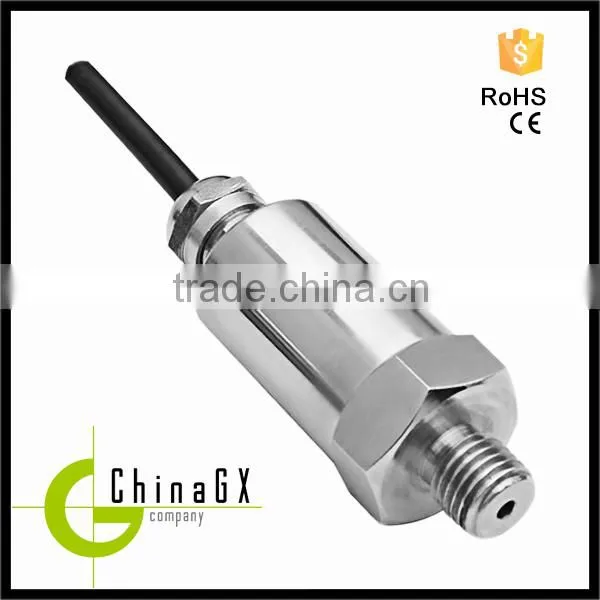

GXPS700L pressure sensor
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
