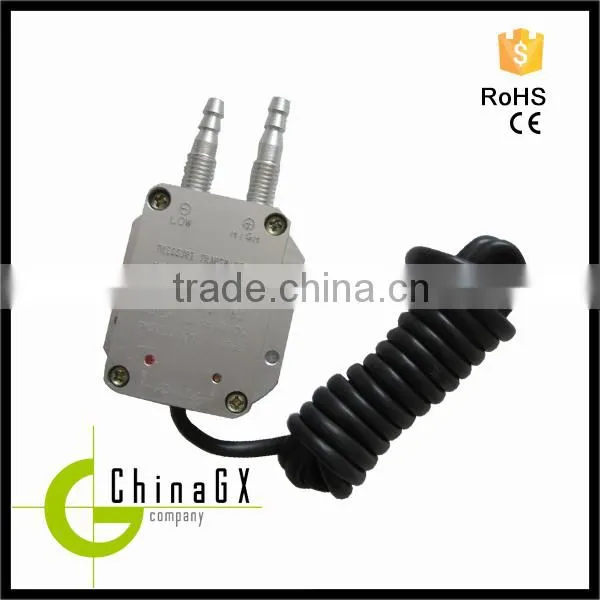

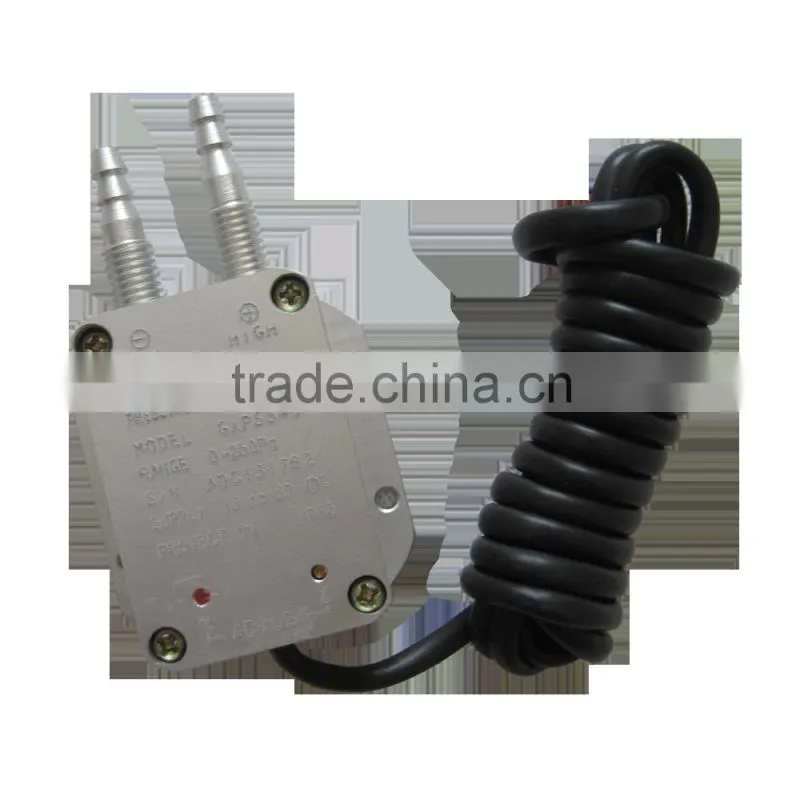

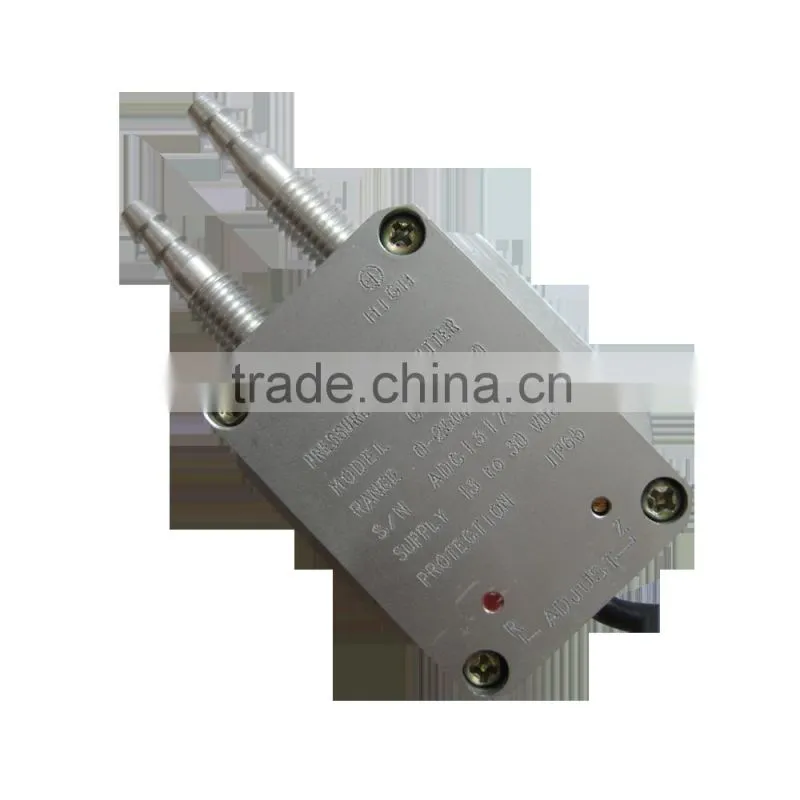

Air wind differential pressure sensor
Description of pressure sensor
GXPS540Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
Features of differential pressure sensor
- High sensitivity
- Mini outline, easy to install
- High accuracy and high stability

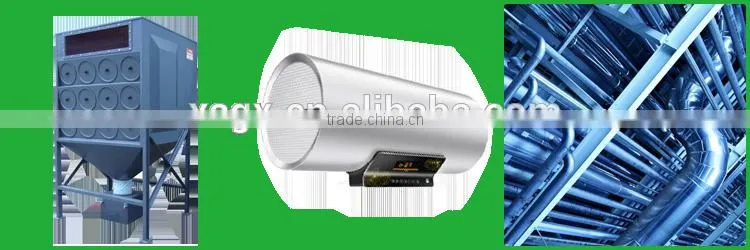

Applications of air pressure sensor
- Boiler
- Dust precipitator
- Air duct pressure
- Differential and negative pressure
Parameter of air wind differential pressure sensor
Parameter table | |
Measuring range |
0-100Pa~100Kpa, -50KPa~-50Pa-50Pa~50Kpa |
Protection |
IP65 |
Medium Measurement |
Non-corrosive dry gas, weak corrosive and damp gas |
Output signal |
4~20mA, 1~5V, 0~5V Optional |
Power supply |
24VDC |
Accuracy |
±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
Adjustment |
Zero and range are adjustable externally |
Medium temperature |
-10~100°C |
Ambient temperature |
-20~80°C |
Electric Interface |
Outlet cable |
Shell material |
Aluminum alloy |
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
