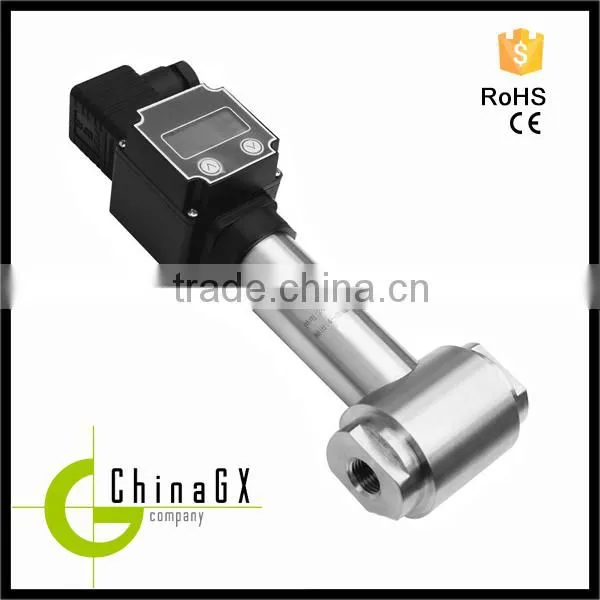

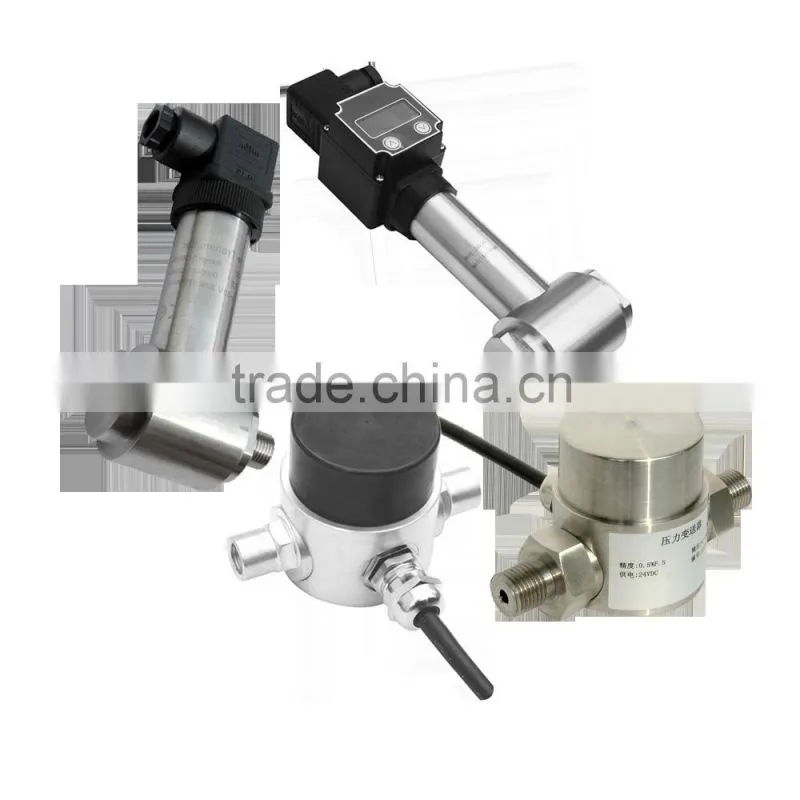

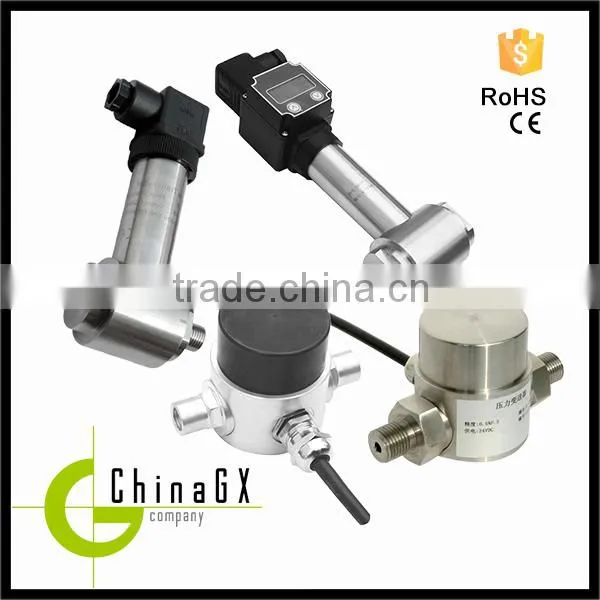

Low cost differential pressure sensor
Feature of pressure sensor
- AC,DC voltage output
- Various screw connection
- Accuracy ±0.25,±0.5%F.S
- Diffused-Silicon oil-filled core
- Non polarity 2 line current output
- Display and output node available
- Multiple pressure range and output signal
- Intrinsically safe mode , isolation explosion protection, CE
- Against severe electromagnetic interference, lightning protection
Applications of differential pressure sensor
- Effluent treatment
- Flow measurement
- Underwater engineering
- Water-efficient irrigation
- Coal mine air pressure difference
- Hydropower station stage difference
- Centralized air-condition Terminal Control
- City flood protection and water logging drainage project

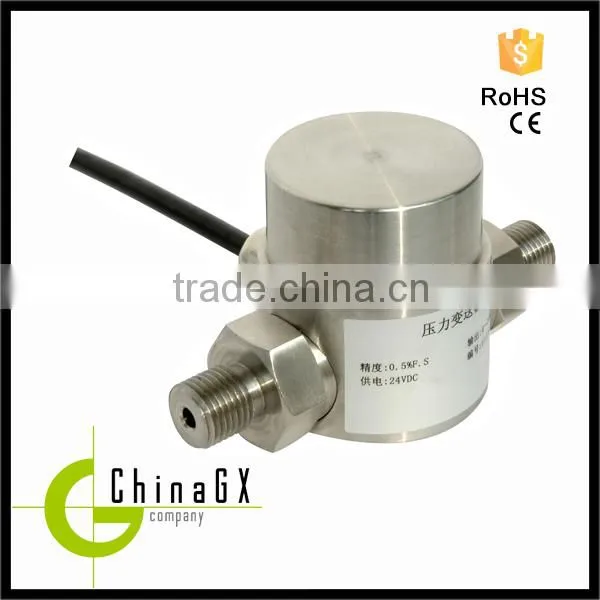

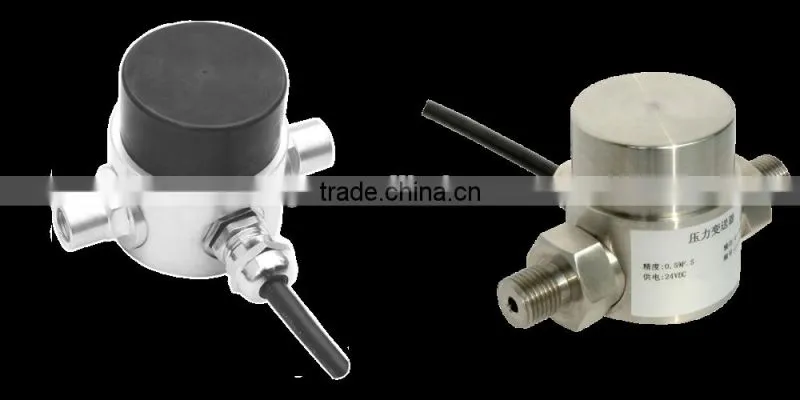

GXPS500 differential pressure sensor
Parameter
Spec. |
Value |
||
Pressure range |
0~±5kPa……±5000kPa |
||
Load pressure |
1.5 times nominal value |
||
pipeline Isostatic pressing |
3, 5, 10 times nominal value 20MPa |
||
Accuracy |
±0.25%F.S, ±0.5%F.S |
||
Stability |
Typical value 0.1%F.S, Max. value: 0.2%F.S |
||
Operating temperature |
-40°C~85°C |
||
Compensation temperature |
-10 °C~70 °C |
||
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L |
||
Electrical properties |
two-wire system |
Three-wire system |
|
Output signal |
4~20mA |
0/1~5V |
0~10V |
Power supply |
10~30Vdc |
8~36Vdc/ac |
11~30Vdc/ac |
Load resistance |
(U-10)/0.02Ω |
>100kΩ |
|
Min. isolation |
>100M Ω@50V (between case & terminations) |
||
Electric Strength |
500V@60 second |
||
vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
||
Seal grade |
Waterproof cable, Protection grade IP68; DIN43650, IP65 |
||
Response time |
10ms |
||
Pressure durable |
2×106 pressure circle @25 °C |
||
EMI/ EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
||
Lightning protection |
Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V |
||

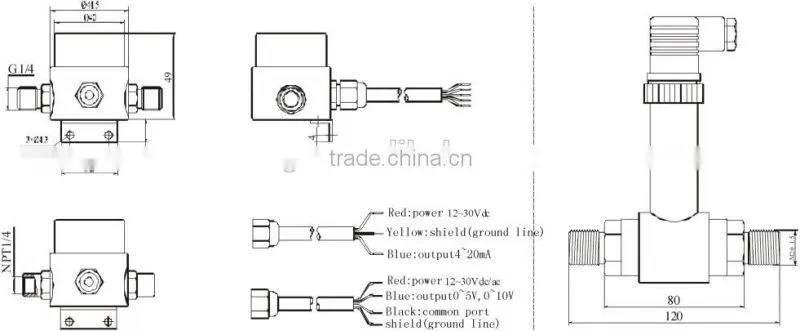

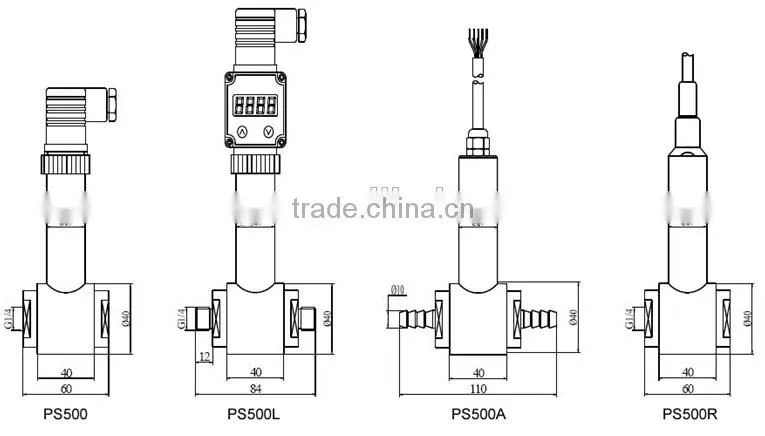

Electronic interface and signals definition

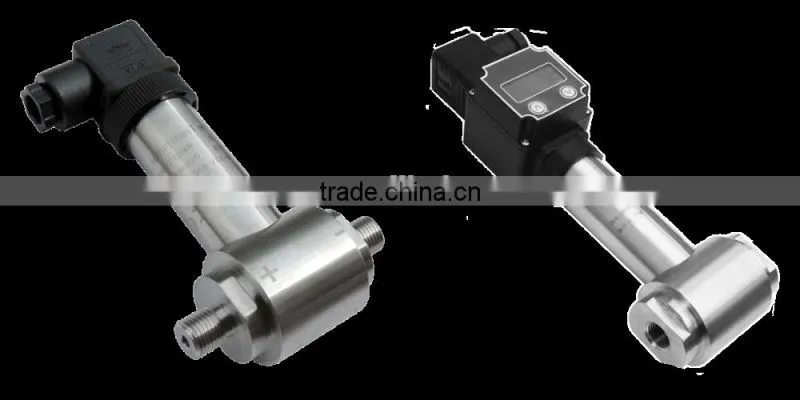

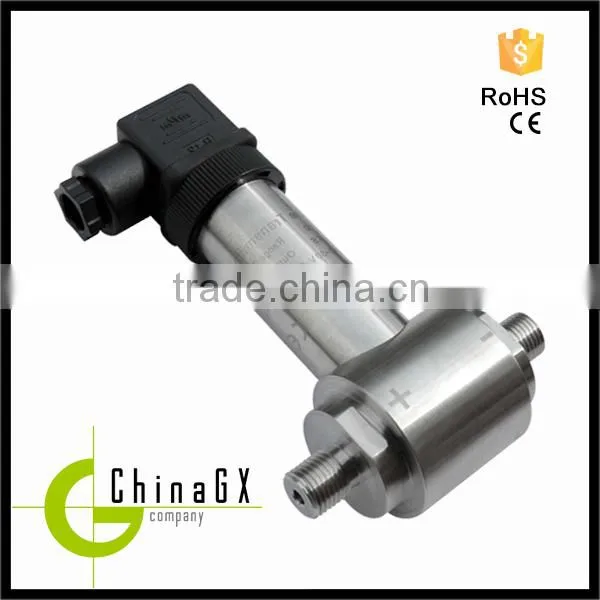

GXPS500D differential pressure sensor
Parameter
Spec. |
Value |
||
Pressure range |
±5kPa……±10000kPa |
||
Overload pressure |
1.5time nominal pressure |
||
Pipeline pressing |
3, 5, 10 times nominal pressure |
||
Accuracy |
±0.25%F.S, ±0.5%F.S |
||
Stability |
Typical value 0.25%F.S, Max.: 0.5%F.S |
||
Operating Temp. |
-40°C~85°C (OEM-40°C ~120°C) |
||
Compensated Temp. Range |
-10°C ~70°C |
||
Medium |
All Caustic Medium Compatible with 1Cr18Ni9Ti or brass |
||
Electrical properties |
2 wire system |
3 wire system |
|
Output signal |
4~20mA |
0~5V |
0~10V |
Power supply |
10~30Vdc |
8~30Vdc/ac |
11~30Vdc/ac |
load resistance |
(U-10)/0.02Ω |
>100kΩ |
|
Min. isolation |
>100M Ω@50V (between case & terminations) |
||
surge immunity |
>500Vac@60 second |
||
Shock and vibration |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
||
Pressure durable |
2×106 Pressure circle @25°C |
||
Electrical Connections |
Waterproof cable, 1.5meter length, IP65 |
||
Pressure port |
Inner and outer G1/4, inner and outer NPT1/4 |
||
Response time |
10ms |
||
Pressure type |
differential pressure |
||
Certificate |
insulation explosion proof, CE |
||
EMI/ EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
||
Electronic interface and signals definition
