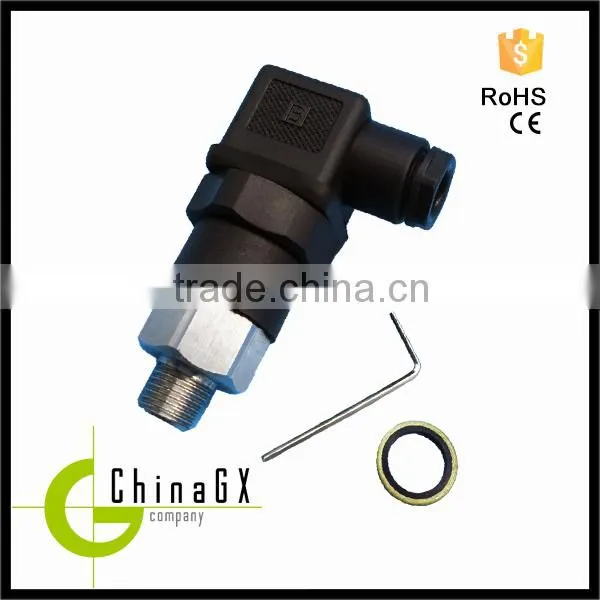

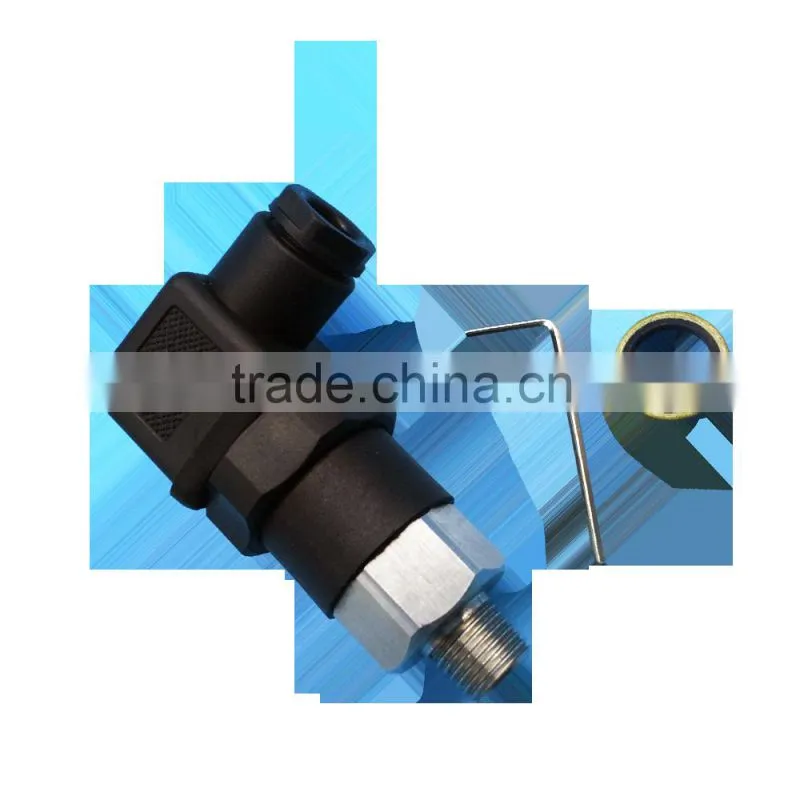

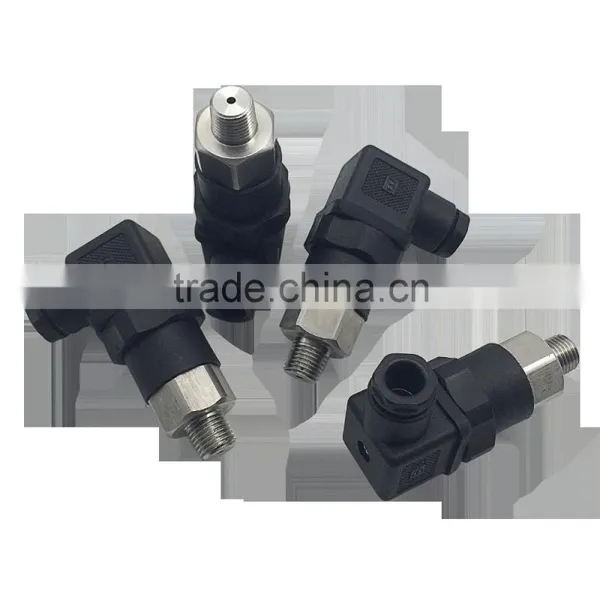

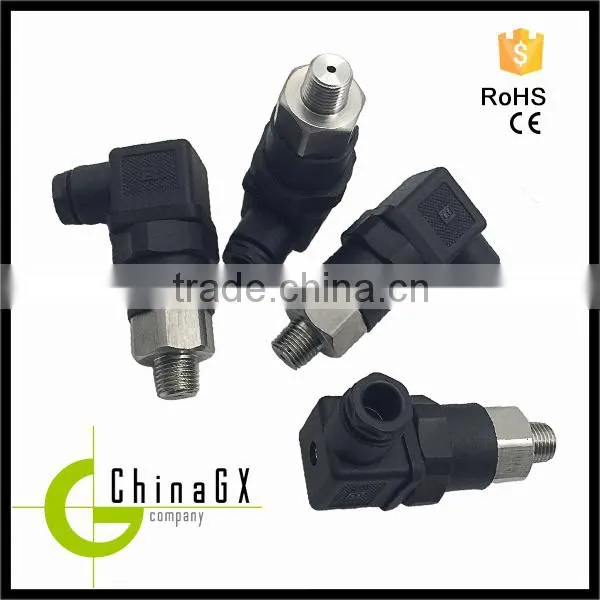

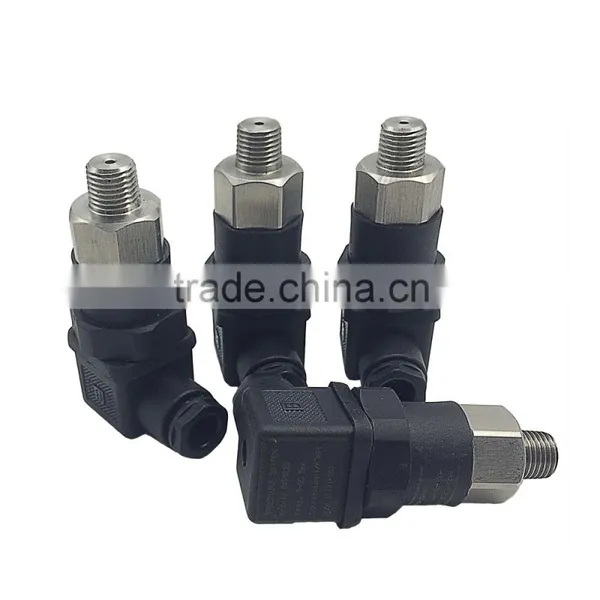

Adjustable automatic water oil pressure switch
Features of oil pressure switch
- Can be used for the gas and liquid medium
- Adjustable controller, adjustable range is 0.02~10MPa
Range |
Switch Value |
Switch frequency |
Sensor material |
0.0-0.61MPa |
0.04MPa |
20times/min. |
304 |
0.02-1MPa |
0.025MPa |
20times/min. |
304 |
0.05-2.5MPa |
0.25MPa |
20times/min. |
304 |
0.3-6MPa |
0.3MPa |
20times/min. |
304 |
1-10MPa |
0.3MPa |
20times/min. |
304 |
Setting Value Adjustment
1). Use the wrench to clamp the six square plane of controller, to screw the pressure interface into pressure interface of the pressure check table.
2). Open the cover plate, to connect the one end of cable to the wiring terminal 1-3, anotherend connected with universal meter.
3). To add the pressure value into necessary value, adjust the screw with counterclockwise rotation. Make the setting value from large to small, till the switch contacts switch the value in the required pressure value.
And change the pressure value back and forth on required pressure value, so that to check the switch value of contacts is the needed pressure value.
4). Closed the cover plate
Single pole double throw micro switch process.
Connect terminal 1—3, to put through until pressure raised to upper switching value. Connect terminal 1—2, to switch offuntil pressure raised to upper switching value.
Connection type
Adjustable screw
GXPS622 pressure switch
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
