2016 Used tyre retreading machinery&tire retreading production line

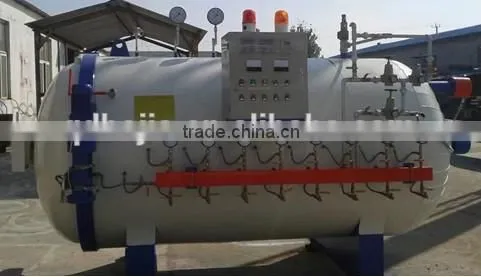

1. Vulcanizing tank
Name |
Size(Diameter*length) |
Quantity of tyre |
Vulcanizing tank |
1.5x1.5M |
4 tyres |
Function |
Tyre preheating for vulcanization with wind cooling cycle motor |
|
Power |
35kw |
|
Heating way |
Electricity heating, guiding oil heating, steam heating |
|
2. FXM-C Inflatable tyre grinding machine FXM-C
Name |
Inflatable tyre grinding machine |
Model |
FXM-C |
Specifications |
15",16",20",22.5" |
Outside size |
1.6x1.8x2.1M |
Weight |
1150KG |
Technical parameter |
(1) Grinding head motor power: 11KW |
(2) Rotation tyre matching power: 2.2kw | |
(3) Grinding head of left and right matching power: 0.55kw | |
(4) Grinding head of front and back matching power: 0.37kw | |
Function |
(1) For tyre rough surface radian grinding |
(2) Equipped with tyre shoulder side polishing and tyre explosion-proof function |
3. Rubber powder collecting tank
Name |
Rubber powder collecting tank |
Model |
FXM-B |
Outline dimension |
1.6x0.78x2.0M |
Weight |
220kg |
Technical parameter |
Ventilation motor: 3kw |
|
Function |
(1) For absorption of waste soo and smoke after grinding of tyre grinding machine |
(2) Large capacity, smoke dust collection, convenient collection, energy-saving and health |

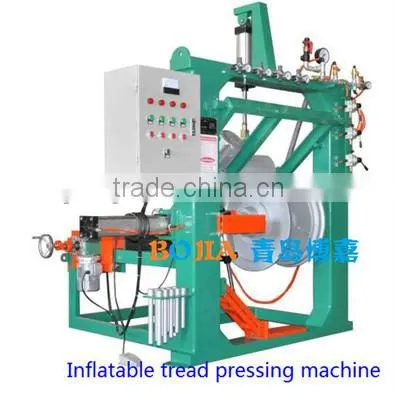

4. Inflatable tread pressing machine
Name |
Inflatable tread pressing machine |
Model |
FTT-B |
Specification |
15",16",20", 22.5" |
Weight |
850kg |
Technical parameter |
(1) Press roller matching power: 0.55kw |
(2) Press wheel matching power: 0.37kw | |
Function |
For carcass and tread tire inflation pressing with explosion-proof function |

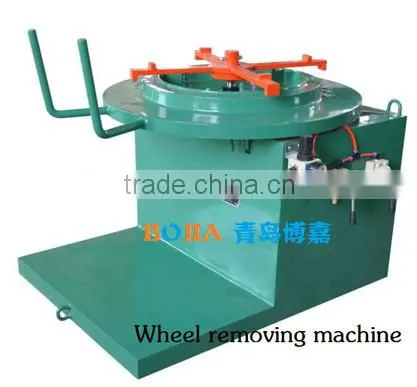

5. Rim disassembling machine
Name |
Rim disassembling machine |
Model |
LJC-A |
Specification |
15",16",20", 22.5" |
Outline size |
1.5x1.3x0.8M |
Weight |
100KG |
Function |
For disassembling of rim |
6. Envelope disassembly machine
Name |
Envelope disassembly machine |
Model |
LJJ-A |
Specification |
15",16",20",22.5" |
Outline size |
2.2x1.5x1.6M |
Weight |
350KG |
Function |
For envelope disassembly before and after tyre vulcanization, applicable to many kinds of tyre
|
7. Buffer strip extruder
Name |
Buffer strip extruder |
Model |
LJJ-A |
Specification |
20kg/h |
Outline size |
1.0x0.5x0.9M |
Weight |
80KG |
Power |
1.5KW |
Function |
Necessary equipment for tyre retreading process |
8. Rubber cement mixing tank
Name |
Rubber cement mixing tank |
Model |
XJB-B |
Specification |
100L |
Outline size |
0.8x0.85x1.5M |
Weight |
130kg |
Technical parameter |
Power : 1.5KW |
|
Function |
Manufacturing of glue adhesion for carcass and tread with uniformity character, equipped with explosion-proof motor which can prevent fire
|

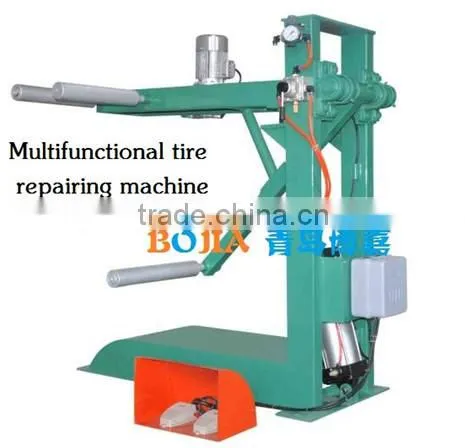

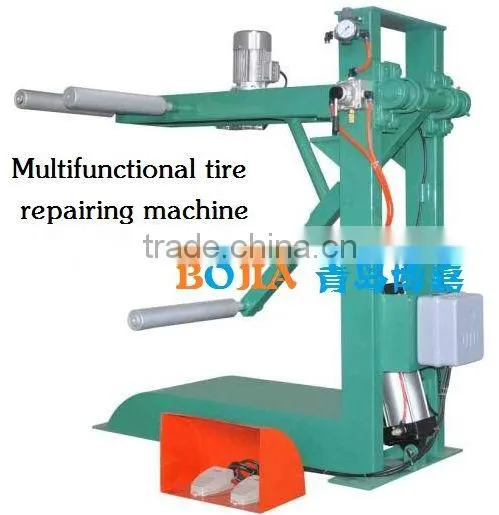

9. Multifunctional tire repairing machine
Name |
Multifunctional tire repairing machine |
Model |
TXT-A |
Specification |
15",16",20",22.5" |
Outline size |
1.2x1.0x1.5M |
Weight |
100KG |
Technical parameter |
Motor: 0.18kw |
|
Function |
Suitable for light grinding of tyre and equipping with lifting function during rubberizing |

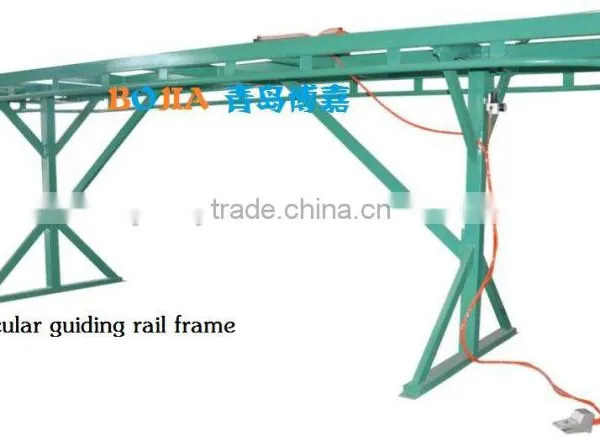

10.Circular guiding rail frame

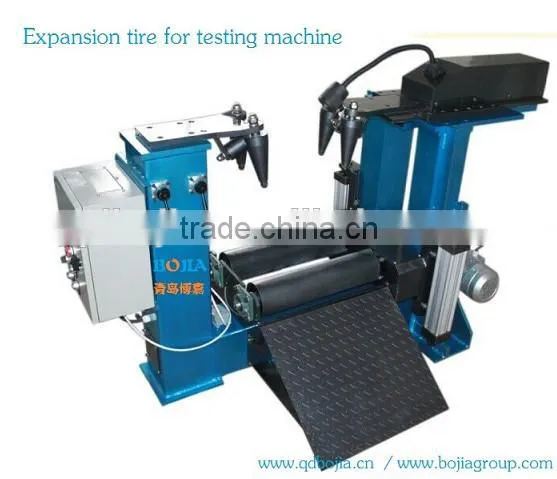

11. Expansion tire of testing machine
Name |
Expansion tire of testing machine
|
Model |
BJ-KX-20 |
Specification |
Applicable section width of the tire tread: 100-350mm
|
Outline size |
2x1.1x1.2M |
Weight |
220kg |
Technical parameter |
Power : 1.5KW |
Function |
Mainly used to detect and repair the inside of the tire, by foot pedal switch for controlling the rise and fall of the workbench, the expansion of the tire, convenient and practical.
|
12.Tread Jig-Saw
Name |
Tread Jig-Saw |
Model |
BJ-QG |
Outline size |
1.15x0.6x1.2M |
Weight |
56kg |
Technical parameter |
Power : 1.1KW |
|
Function |
Mainly used in tire retreading for cutting the cushion gum. Motor movement is controlled by foot pedal switch, safe, convenient and practical. |

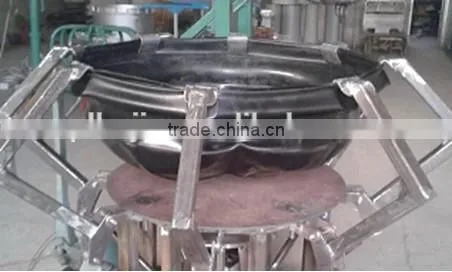

13.Curing Rims
14. Inter Tube Flap
15.Envelop
16.Repair tools
Funtion description:
1. Repairing tools are using for repairing tire cavity and wound.
2. Repairing tools have a veriaty of kinds, can repair 300 tires.
3. Repairing tools can be customized according to customer's demand.
