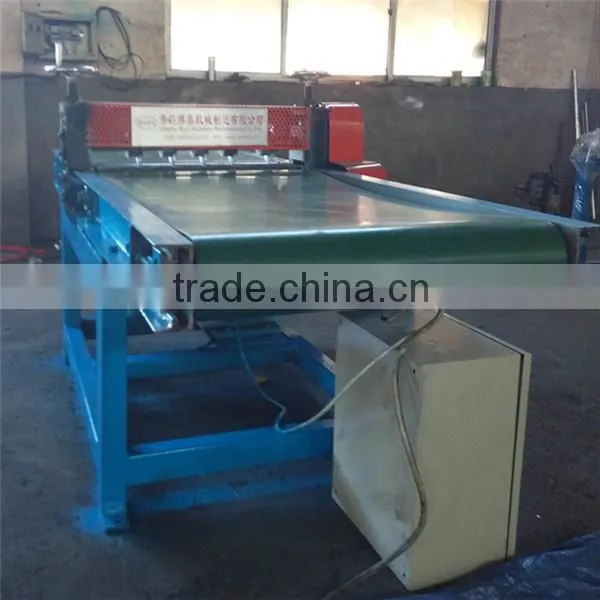

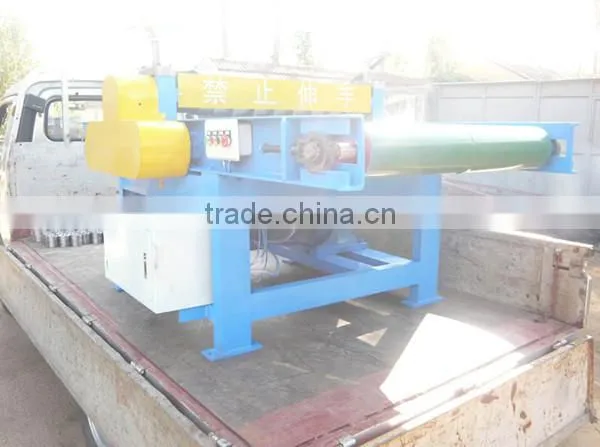

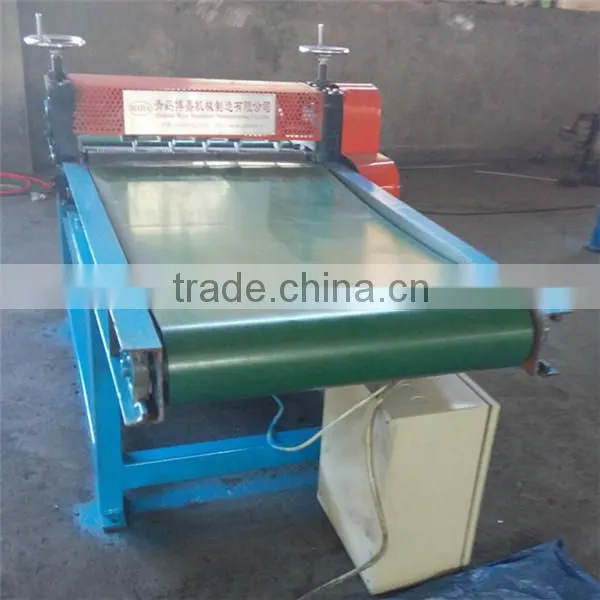

Rubber sheet cutting machine
Usage
Rubber sheet cutting machine is used to Cutting large rubber sheets into narrow pcs for using of next process.
Structure:
Rubber sheet cutting machine mainly composed of front and back conveyor belt device,up and down cutting knife device and transmission device etc. Rubber transferred by the front conveyor belt into cutting knife device, and cutting rubber received and transferred by back conveyor belt to material containing box for next process. .
Detail parameters
|
Model |
QTF – 500B |
| Maximum width of rubber sheet | 500mm |
| Maximum quantity of cutting strip | 5 sets of knives |
| Knife adopting the structure of single blade up and roller down | blade width can be adjusted |
| Slice width | 100 mm |
| Maximum linear velocity | 16 m/min; Frequency control of motor speed |
| Maximum cutting thickness | 12mm |
| Front and back adopting joint circular conveyor belt conveying rubber sheet | Band width is 600 mm |
| Conveying bed body height | 800 mm |
| Motor power | 4KW; Frequency converter speed control |
| Overall size (dimensions) | 2000 * 800 * 1200MM |
It can be designed and manufactured non-standard special equipments based on customers’ parameter.
* Within 30days after receiving the deposit
* Standard Export Wooden Packing Container
1. The guarantee period is 2 years. Any quality problemour company will maintain it free of charge
2. 24 hours technical support
3. Offer lifetime Service and spare parts
4. Technique training is free of charge.
Our main products are various type of mixing mill ,conveyer belt molding machine ,banbury mill, batch off cooler ,plate vulcanizing machine,rubber bale cutter and other kinds of rubber machinery.we can also make all kinds of non-standard rubber machines according to your requirement
1.Q: Are you a factory or trading company?
A:We are a factory and manufacturer.
2.Q: Where is your factory located? How can I visit there? A:Our factory is located in Huangdao,Qingdao, China. You can fly to Qingdao Liuting airport directly. All customers are warmly welcome to visit our factory!
3.Q:What's your payment terms?
A:" Our Payment Terms: T/T (30% in advance and 70% before delivery) or L/C .
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. BOJIA people always attach great importance to quality controlling from the beginning to end.
