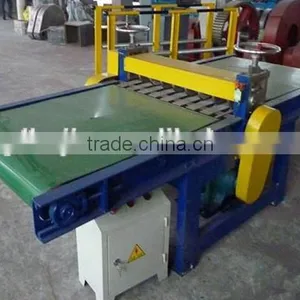

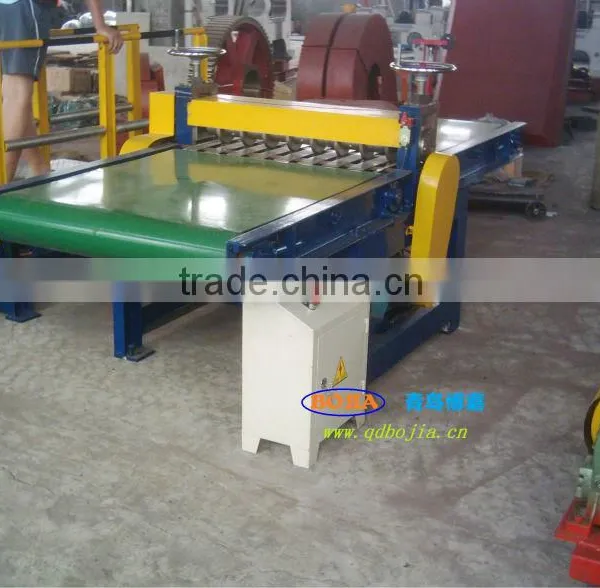

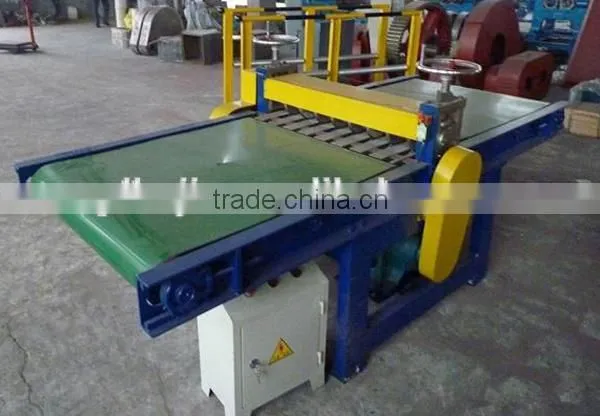

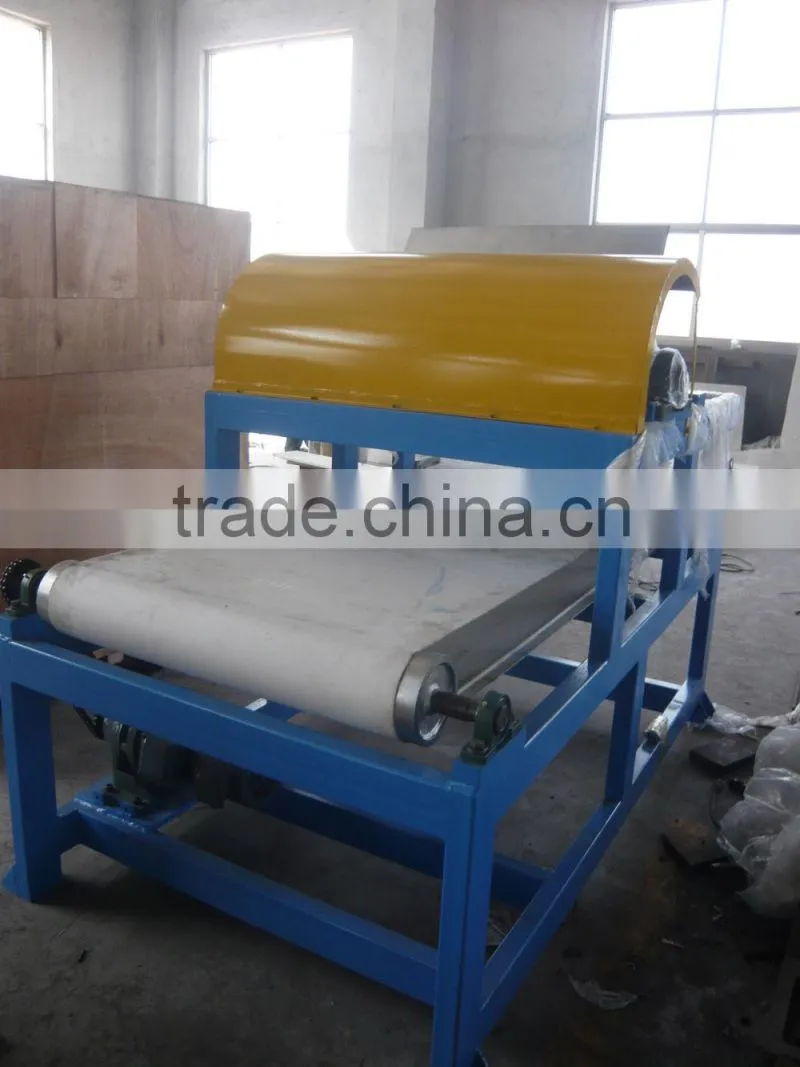

2015 New rubber slitting machine
Production Introduction
Rubber cutting machine is mainly composed of a front and rear conveying belt device.The upper and the lower cutting knife device.A transmission part,a rubber sheet by former conveying belt into a cutting knife device for rubber sheet cutting,cutting after the rubber sheet by the back conveyor belt take delivery to the material containing box,for cold feed extruder next procedure the use of.
Main Technical Parameters
| Type | QT-A | QT-B |
| The maximum width of the rubber sheet | 600.700.800.900.1000 | 600.700.800.900.1000 |
| Most rubber cutting number | 6-9 piece can design according to customer's requirement | |
| Minmum slice width | 100mm | 50mm |
| The biggest slice width | 190mm | 200mm |
| Slicing speed | According to the installation of frequency control user requirements | |
| The maximum cutting thickness | 15 | 15 |
| Conveying height of the bed body | 800mm | 800mm |
| Note | Before and after the use of non joint circular conveyor belt deviation preventing rubber sheet,the guide bar. | |
| According to user needs to install the rubber sheet coiling device,transverse cutting device(cutting small box) | ||
* Within 30days after receiving the deposit
* Standard Export Wooden Packing Container
1. The guarantee period is two years.
2. 24 hours technical support
3. Offer lifetime Service and spare parts
4. Technique training is free of charge.
1.Q: Are you a factory or trading company?
A:We are a factory and manufacturer.
2.Q: Where is your factory located? How can I visit there? A:Our factory is located in Huangdao,Qingdao, China. You can fly to Qingdao Liuting airport directly. All customers are warmly welcome to visit our factory!
3.3.Q:What's your payment terms?
A:" Our Payment Terms: T/T (30% in advance and 70% before delivery) or L/C .
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. BOJIA people always attach great importance to quality controlling from the beginning to end.
