YAMABISI Good Quality YB-T40 BWL Electric Start 2 Stroke 40 hp Outboard Motor Long Shaft

YAMABISI Good Quality YB-T40 BWL Electric Start 2 Stroke 40 hp Outboard Motor Long Shaft thumbnail-1
YAMABISI Good Quality YB-T40 BWL Electric Start 2 Stroke 40 hp Outboard Motor Long Shaft photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Contact Supplier Request Quote Chat Now
Zhejiang Yongbang Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 2 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard
Dimensions (L x W x H) (mm) 1106(43.5)*408(16.0)*1340(52.8)MM(INCH)
Product Description

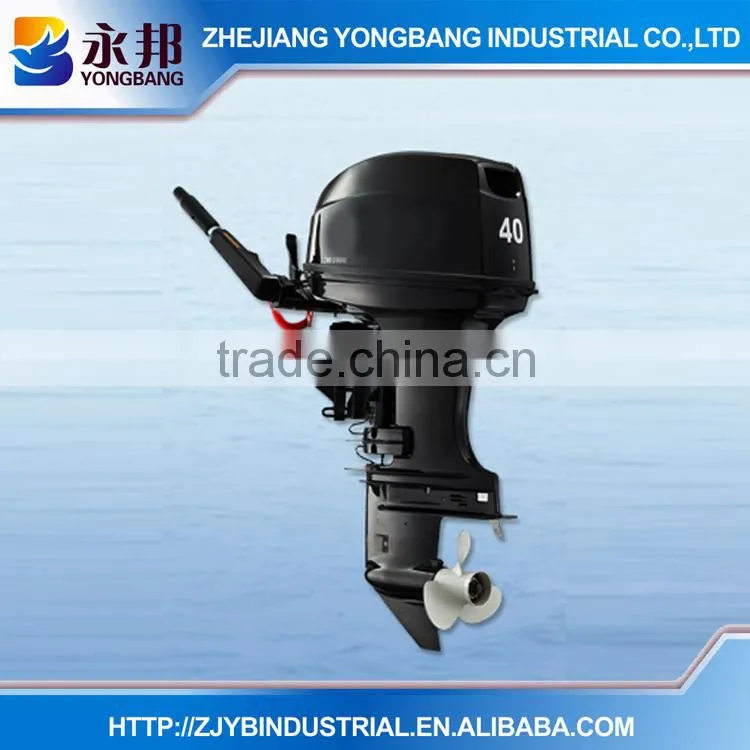

1.Pictures of  2 stroke 40 HP Electric Outboard Motor Long Shaft

YAMABISI Good Quality YB-T40 BWL Electric Start 2 stroke 40 hp Outboard Motor Long Shaft





2.Descriptions Of

2-stroke 40 HP Electric Outboard Motor Long Shaft



         Item NO.

Parameter

Measurement
 Units

2-stroke

T40BM/BW(S/L)

Length

mm(in.)

1106(43.5)

Width

mm(in.)

408(16.0)

Height

mm(in.)

S:1213(47.8)
L:1340(52.8)

Transom height

mm(in.)

S:406(16.8)
L:533(21.8)

Net Weight



BMS:77 BML:79 BWS:80.3  BWL:82.3

Full throttle
operating range

r/min

4000~5000

Maximum output

KW(HP)@r/min

29.4(40)@5000

Idling speed

r/min

750~850

Cylinder quantity



2

Displacement

ml

703

Bore×Stroke

mm(in.)

80.0×70.0(3.15×2.76)

Control system



Tiller/operation

Starting System



BM:Manual

BW:Electrical

Gear positions



Forward-neutral-reverse

Gear ratio



2.00(26/13)

Trim and tilt system



Manual tilt

Fuel tank volume

L(litre)

24

Engine fuel ratio



gasoline:engine oil=50:1

Engine oil

L(litre)

/

Gear oil

ml

430

Propeller spec

in

3-11 1/8"×13"







3.Features of  2 stroke 40 HP Electric Outboard Motor Long Shaft

Our company is professionally on producing OUTBOARD MOTORS and their SPARE PARTS.

All the main spare parts are produced and then assembled into hole engine on our own production line, so we could do more to supply you goods of better quality with more competitive prices.


Till the end of  2009, we had invested over US $3, 000, 000 to develop outboard motors.

In 2010 the available styles are

4-stroke:2.5HP, 3.6HP,4HP, 5HP, 6HP,9.9HP, 15HP,20HP

2-stroke:2.5HP,2.6HP,3.5HP,3.6HP,4HP, 5HP, 6HP,8HP,9.8HP,9.9HP,12HP,15HP,30HP,40HP,60HP


In 2015, our 2-strokes 60HP motor has been developing and available due to the success of available motors.



Keeping the first-class quality, provide professional service and meanwhile to continuously develop new products and improve quality, is our eternal aim and power. Every buyer’s satisfaction is our most pleasure and success.


4.Quality Control of  2 stroke 40 HP Electric Outboard Motor Long Shaft

1).Before the order can be confirmed finally,we would strictly check the material  ,accessories of the sample step by step.

2).We salesman ,also as a order follower,would trace every phase of production from the beginning.

3).We have a QC team ,every product would be checked by them before packed.

4).We would try our best to help clients solve  problems when they occurred.

5).Most of our products have passed TUV CE /GS  ISO9001 certificate.





5.Inspection of  2 stroke 40 HP Electric Outboard Motor Long Shaft





6.Warehouse of  2 stroke 40 HP Electric Outboard Motor Long Shaft
