Help CenterMade in China YAMABISI Boat Engine YB-T40 BWS 2 Stroke 40HP Electric Outboard Motor
Related Products
-
Good Quality YB-T60BMS 2-stroke 60HP Outboard MotorNegotiableMOQ: 1 Set -
2015 YONGBANG HIGH QUALITY YB-F2.5 BMS Short Shaft Wholesale Outboard Motor With China ManufactureNegotiableMOQ: 1 Set
-
2015 Factory Price YONGBANG Boat Engine YB-F4 BMS Short Shaft 4hp 4 Stroke Outboard Motor Made in ChinaNegotiableMOQ: 1 Set
-
2015 Factory Price YONGBANG Boat Engine YB-F4 BML 4hp 4 Stroke Outboard Motor Long Shaft Made in ChinaNegotiableMOQ: 1 Set
-
YB-T60 BML 2-stroke 60HP Outboard Motor With Long Shaft in ChinaNegotiableMOQ: 1 Set

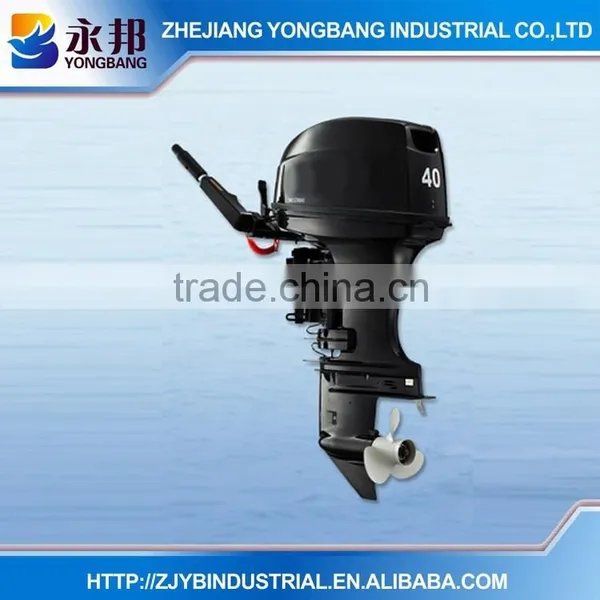

1.Pictures of 2 stroke 40HP Electric Outboard Motor
2.Descriptions Of 2-stroke 40HP Electric Outboard Motor
Parameter |
measuring unit |
Parameter value |
Length |
mm(in.) |
1106(43.5) |
Width |
mm(in.) |
408(16.0) |
Height |
mm(in.) |
1213(47.8) |
Transom height |
mm(in.) |
406(16.8) |
Net Weight |
kgs |
80.3 |
Full throttle operating range |
r/min |
4000~5000 |
Maximum output |
r/min |
29.4(40)@5000 KW(HP)@ |
Idling speed |
r/min |
750~850 |
Cylinder quanitity |
|
2 |
Displacement |
ml |
703 |
Bore×Stroke |
mm(in.) |
80.0×70.0(3.15×2.76) |
Control system |
|
Tiller/operation |
Starting System |
|
Electrical |
Gear positions |
|
Forward-neutral-reverse |
Gear ratio |
|
2.00(26/13) |
Trim and tilt system |
|
Manual tilt |
Fuel tank volume |
L |
24 |
Engine fuel ratio |
|
gasoline:engine oil=50:1 |
Engine oil |
L |
/ |
Gear oil |
ml |
430 |
Propeller spec |
in |
3-111/8"×13" |
3.Features of 2 stroke 40HP Electric Outboard Motor
Our company is professionally on producing OUTBOARD MOTORS and their SPARE PARTS.
All the main spare parts are produced and then assembled into hole engine on our own production line, so we could do more to supply you goods of better quality with more competitive prices.
Till the end of 2009, we had invested over US $3, 000, 000 to develop outboard motors.
In 2010 the available styles are
4-stroke:2.5HP, 4HP, 5HP, 9.9HP, 15HP,20HP motors
2-stroke:2.5HP,2.6HP,4HP, 5HP, 8HP,9.8HP,9.9HP,15HP,30HP,40HP motors.
In 2015, our 2-strokes 60HP motor has been developing and available due to the succesee of available motors.
Keeping the first-class quality, provide professional sevice and meanwhile to continuously develop new products and improve quality, is our eternal aim and power. Every buyer’s satisfaction is our most pleasure and success.
4.Quality Control of 2 stroke 40HP Electric Outboard Motor
1).Before the order can be confirmed finally,we would strictly check the material ,accessories of the sample step by step.
2).We salesman ,also as a order follower,would trace every phase of production from the beginning.
3).We have a QC team ,every product would be checked by them before packed.
4).We would try our best to help clients solve problems when they occurred.
5).Most of our products have passed TUV CE /GS ISO9001 certificate.
5.Inspection of 2 stroke 40HP Electric Outboard Motor
6.Warehouse of 2 stroke 40HP Electric Outboard Motor
1.Introduction
2.Our Company View
3.Factory View
4.Our Team
