Help CenterYONGBANG Boat Engine YB-T60BWL 2-stroke 60HP Electric Start Outboard Motor Long Shaft
Related Products
-
YONGBANG YB-T60BWS-R 2-stroke 60HP Electric Start Outboard Motor With Power TiltNegotiableMOQ: 1 Set -
YONGBANG Boat Engine YB-T60BWL-R 60HP Outboard Engine With Power TiltNegotiableMOQ: 1 Set
-
2015 YONGBANG YB-T2 BMS 2 Stroke 2 HP Short Shaft Chinese Outboard MotorNegotiableMOQ: 1 Set
-
2015 YONGBANG HIGH QUALITY YB-T2.5-BMS 2 Stroke 2.5 HP Chinese Outboard MotorNegotiableMOQ: 1 Set
-
2015 YONGBANG HIGH QUALITY YB-T2.6 BMS 2 Stroke 2.6 HP Chinese Outboard MotorNegotiableMOQ: 1 Set

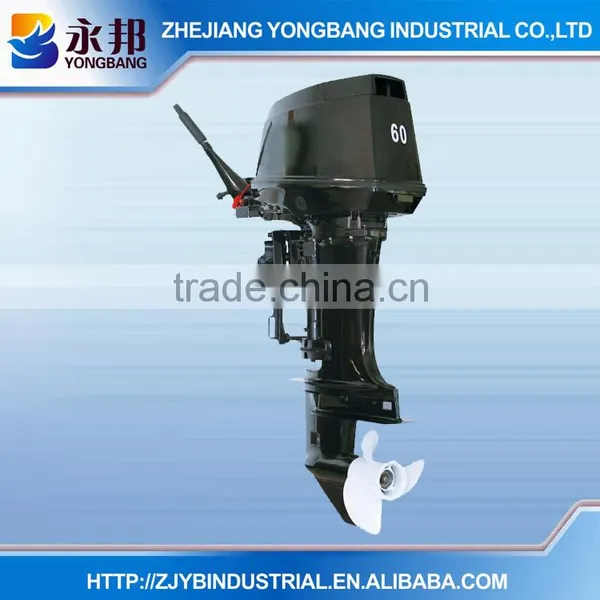

1.Pictures of Electric Start Outboard Motor Long Shaft
2.Descriptions Of Electric Start Outboard Motor Long Shaft
|
Item NO. Parameter |
measurement |
2-stroke |
YB-T60BM/BW(S/L) | ||
Length |
mm(in.) |
713(28.1) |
Width |
mm(in.) |
364(14.3) |
Height |
mm(in.) |
S:1247(49.1) |
Transom height |
mm(in.) |
S:394(15.5) |
Net Weight |
|
BMS:104 BML:106 |
Full throttle |
r/min |
4000-5000 |
Maximum output |
KW(HP)@r/min |
44.1(60)@5000 |
Idling speed |
r/min |
750~850 |
Cylinder quantity |
|
3 |
Displacement |
ml |
849 |
Bore×Stroke |
mm(in.) |
72.0×69.5(2.83×2.74) |
Control system |
|
Tiller/operation |
Starting System |
|
BM:Manual/BW:Electrical |
Gear positions |
|
Forward-neutral-reverse |
Gear ratio |
|
2.33(28/12) |
Trim and tilt system |
|
Manual tilt |
Fuel tank volume |
L(litre) |
24 |
Engine fuel ratio |
|
gasoline:engine oil=50:1 |
Engine oil |
L(litre) |
/ |
Gear oil |
ml |
430 |
Propeller spec |
in |
3-11 1/8"×13"-G |
3.Features of Electric Start Outboard Motor Long Shaft
Our company is professionally on producing OUTBOARD MOTORS and their SPARE PARTS.
All the main spare parts are produced and then assembled into hole engine on our own production line, so we could do more to supply you goods of better quality with more competitive prices.
Till the end of 2009, we had invested over US $3, 000, 000 to develop outboard motors.
In 2010 the available styles are
4-stroke:2.5HP, 4HP, 5HP, 9.9HP, 15HP,20HP motors
2-stroke:2.5HP,2.6HP,4HP, 5HP, 8HP,9.8HP,9.9HP,15HP,30HP,40HP motors.
In 2015, our 2-strokes 60HP motor has been developing and available due to the succesee of available motors.
Keeping the first-class quality, provide professional sevice and meanwhile to continuously develop new products and improve quality, is our eternal aim and power. Every buyer’s satisfaction is our most pleasure and success.
4.Quality Control of Electric Start Outboard Motor Long Shaft
1).Before the order can be confirmed finally,we would strictly check the material ,accessories of the sample step by step.
2).We salesman ,also as a order follower,would trace every phase of production from the beginning.
3).We have a QC team ,every product would be checked by them before packed.
4).We would try our best to help clients solve problems when they occurred.
5).Most of our products have passed TUV CE /GS ISO9001 certificate.
5.Inspection of Electric Start Outboard Motor Long Shaft
6.Warehouse of Electric Start Outboard Motor Long Shaft
