2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers

2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers thumbnail-1
2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers thumbnail-2
2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers photo-1
2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Fluid Bed Drying Equipment
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Zhejiang Yongbang Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fluid Bed Drying Equipment
Place of Origin Zhejiang, China
Brand Name YONGBANG
Model Number YB-ADL
Warranty one year
After-sales Service Provided No overseas service provided
Product Description

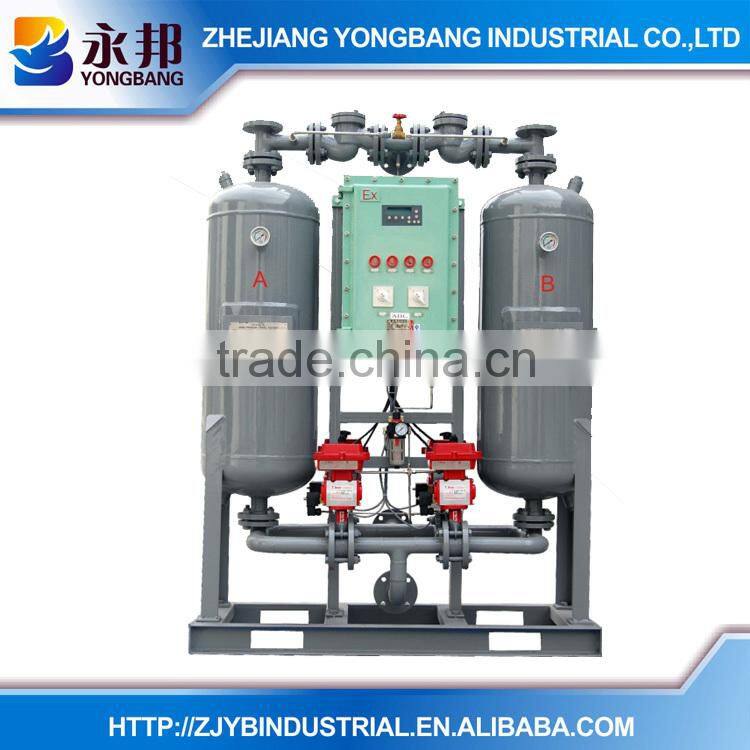

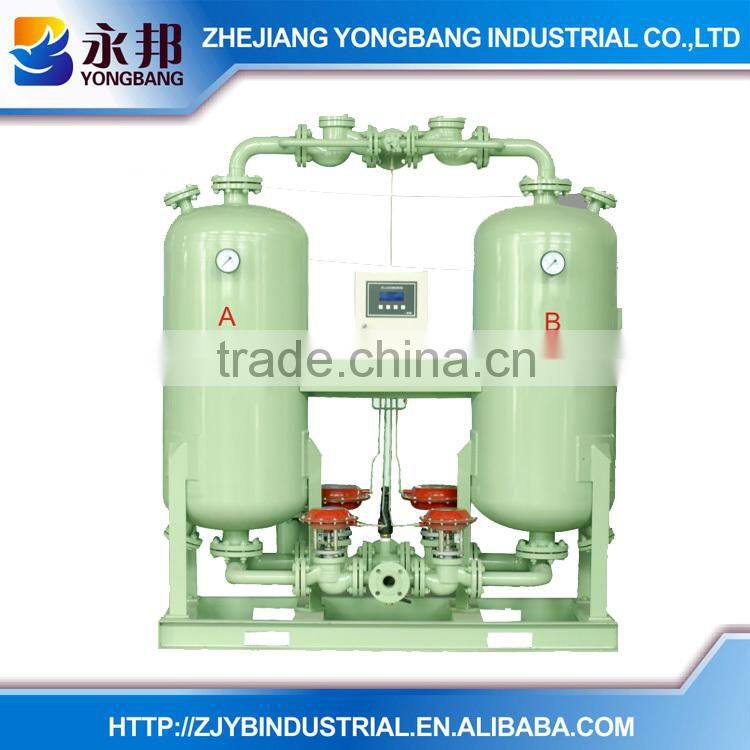

 1.Pictures of

1.6-200Nm3/min Heatless Regenerative Desiccant Dryers

2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers

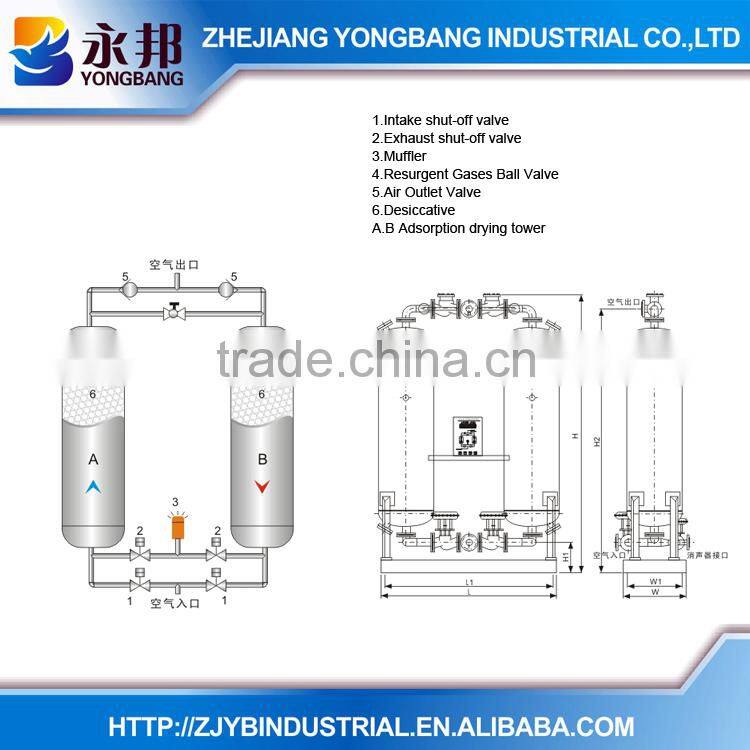

2.Chat Flow of

 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers
2015 Factroy Price YONGBANG Drying Equipment YB-ADL 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers



3. Principle of operation of

 1.6-200Nm3/min Heatless Regenerative Desiccant Dryers





Heatless regeneration compressed air dryer is an equipment to dry compressed air by using pore shape desiccant to dry water molecule sieve.

It is based on the principle of Pressure Swing Adsorption.






4.Technical characteristics of

1.6-200Nm3/min Heatless Regenerative Desiccant Dryers



1. Choose safe and reliable control components, making sure that the output signal arrives at instructions save and accurately.
2. Choose microcomputer control, and the digital shows two towers work in turn.
3. Ensure the product of gas has stable and reliably dew point, also, it can save energy consumption.
4. Its has concise and easy structure, humanized design, further more, it is convenient to operate and maintain.
5. It has kinds of breakdown warning systems.
6. Advanced variable program, it runs steady and reliable.
7. Equipped RS485/RS232 and combined transport interface, so it can go on remote communicating, centralized monitoring and air compressor connected controlling.




5.Technical data of

1.6-200Nm3/min Heatless Regenerative Desiccant Dryer

  • Air capacity:1~500Nm3/min
  • Work pressure:0.6~0.8Mpa(As your request, we can supply you0.8~3.0Mpa products)
  • Input air temperature:<38ºC(5 min)
  • End air dew point: ≤-40ºC~-52ºC
  • Input and output pressure loss: ≤0.02MPa
  • Regeneration air consumption: ≤12% air capacity
  • Ambient temperature: 38ºC



6.Technical Parameters of

1.6-200Nm3/min Heatless Regenerative Desiccant Dryers



Parameter / Model ADL-1.6/8 ADL-3/8 ADL-6/8 ADL-10/8 ADL-20/8 ADL-30/8 ADL-40/8 ADL-60/8 ADL-80/8 ADL-100/8 ADL-150/8 ADL-200/8
Air Capacity(Nm³/min) 1.6 3 6 10 20 30 40 60 80 100 150 200
Inlet&Outlet Drift Diameter(Mm) 25 32 40 50 65 80 100 125 150 150 200 250
Demension(Mm) L 920 1020 1250 1530 1850 1950 2200 2220 2800 2800 3400 3600
W 350 380 500 600 700 700 760 900 1100 1150 1550 1650
H 1370 1600 1710 1875 2180 2210 2430 2620 2870 2935 2995 3200
H1(inlet) 140 175 175 200 250 250 255 275 330 335 400 370
H2(outlet) 1270 1500 1600 1745 2020 2050 2260 2495 2700 2780 2750 2970
L1(installation) 870 970 1200 1480 1800 1900 2100 2120 2600 2600 3200 3400
W1(installation) 300 330 450 550 650 650 710 850 1050 1100 1500 1600
Power Supply(V/HZ) AC220V/50HZ/<100W
Weight(Kg) 185 240 450 900 1350 1580 2030 2660 3390 3970 5260 6550
